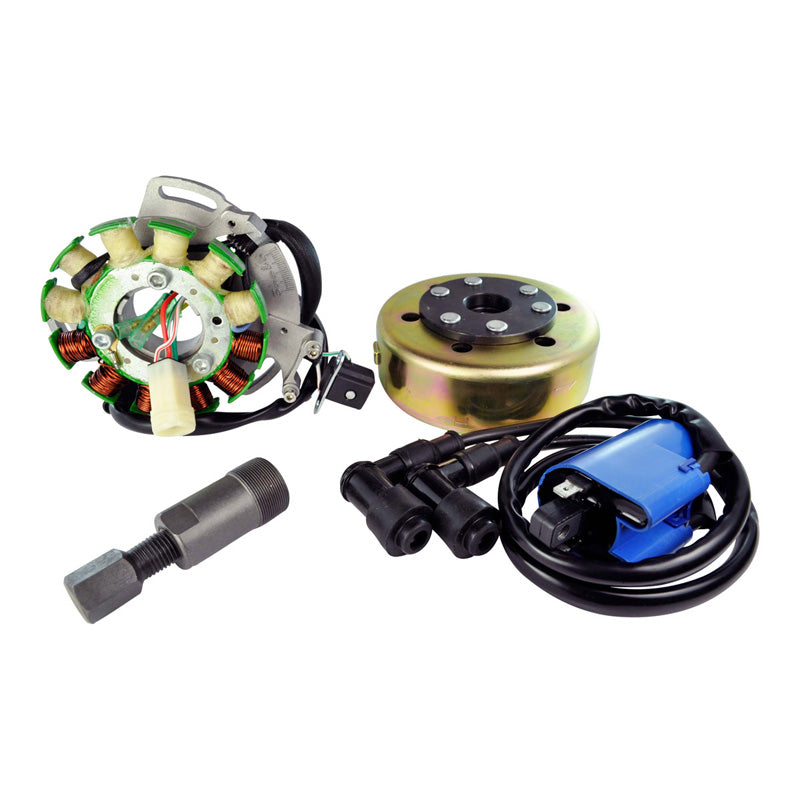

RMS Kit Stator 100 W + External Ignition Coil + Flywheel + Puller (Yamaha)

Brand New Kit Stator + Flywheel + External Ignition Coil + Flywheel Puller

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

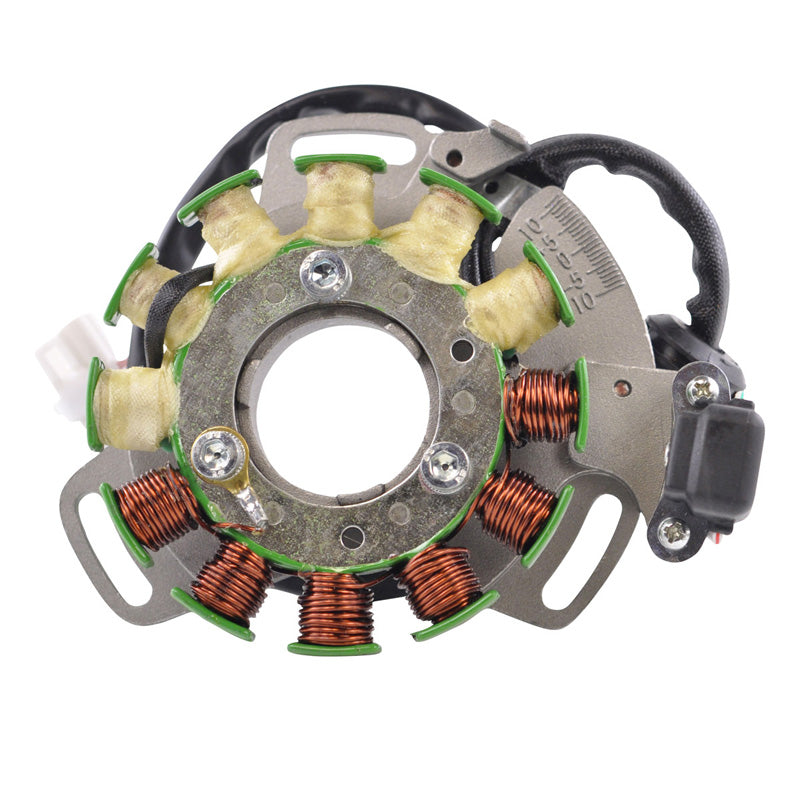

High Output Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

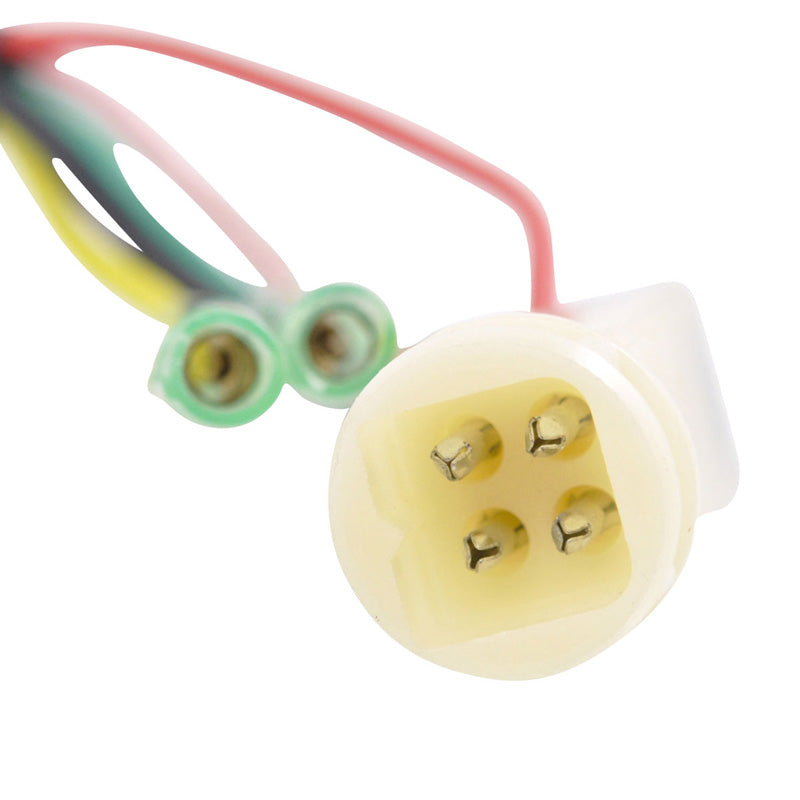

• Connector included
• Rubber grommet included
• Back Plate included

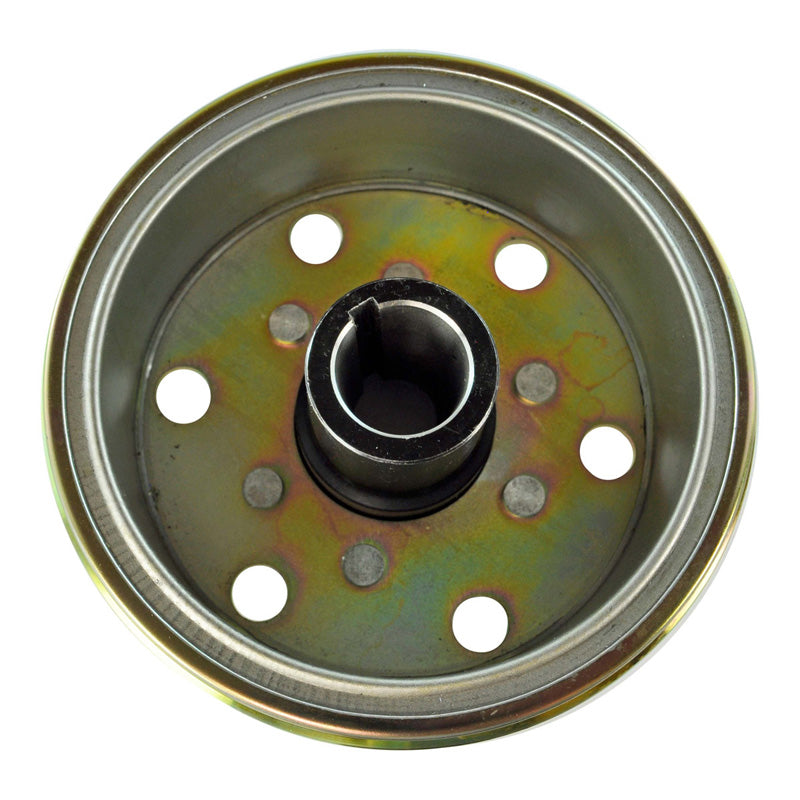

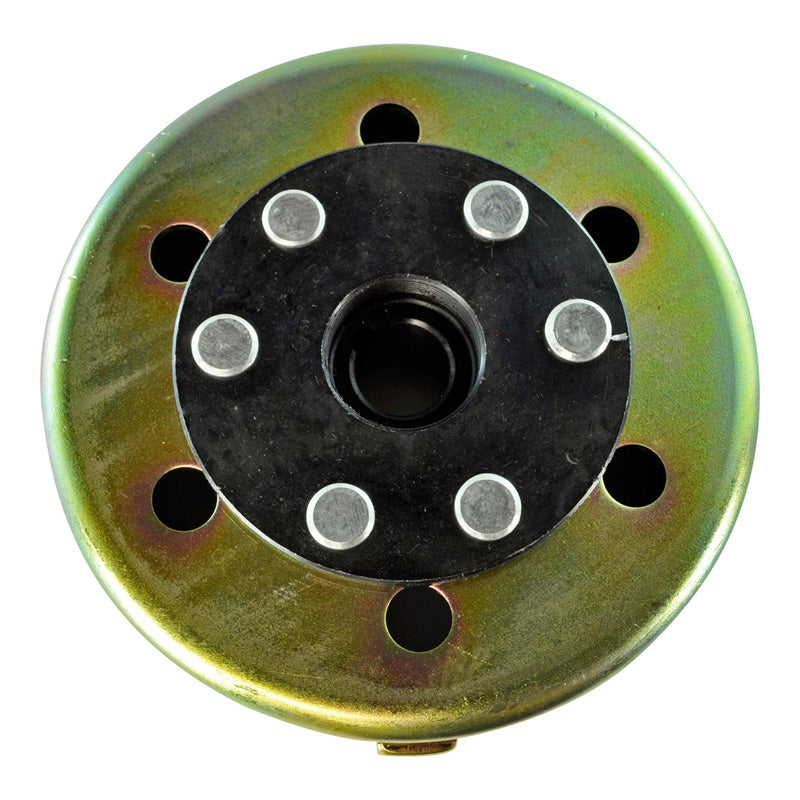

Improved Stronger Magneto Flywheel Rotor

RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Suzuki and Kawasaki, this flywheel can be used as a direct replacement to the OEM.

We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's. External Ignition Coil

• Highest grade of lamination materials

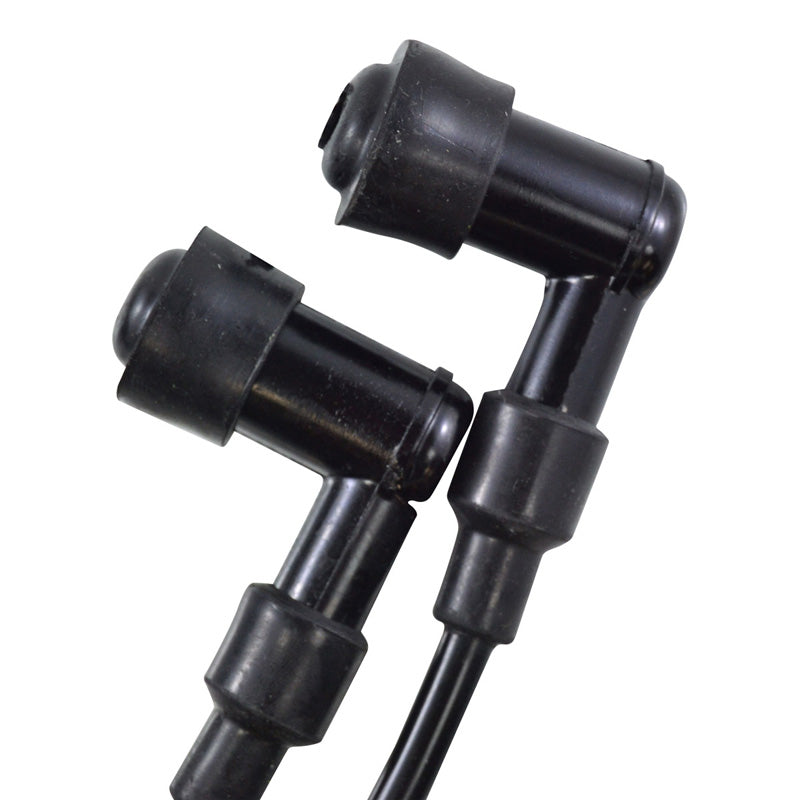

• Spark plug cap(s) included

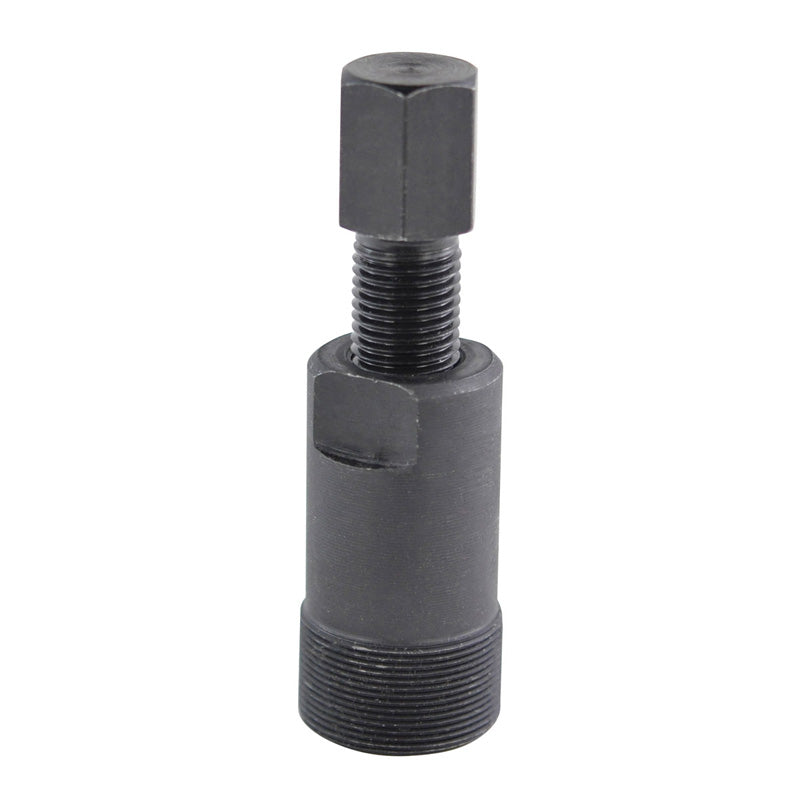

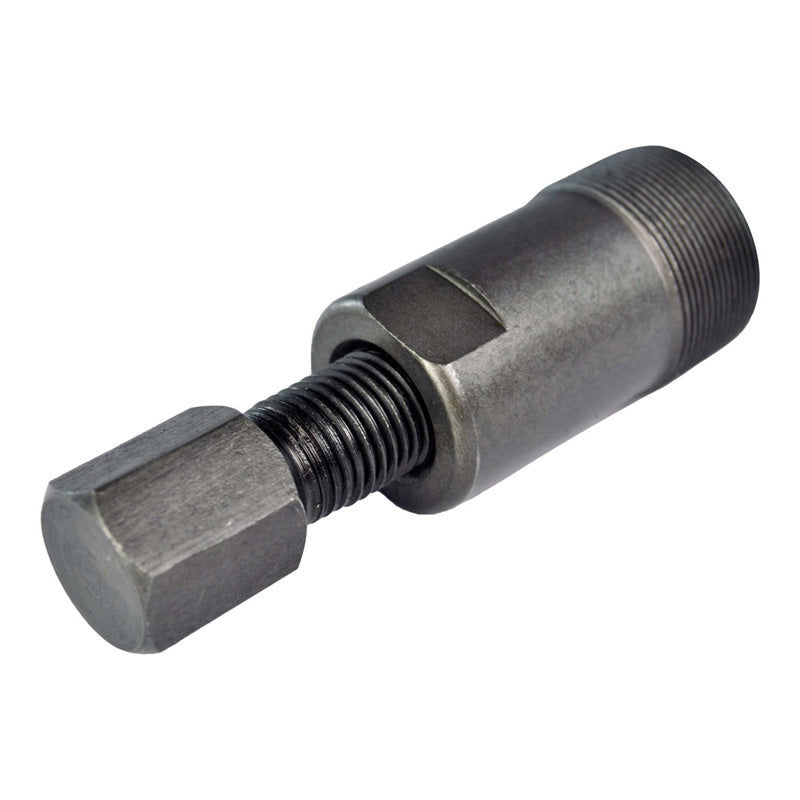

• 27 MM x 1.0 Left hand male

PLEASE CHECK IF YOUR MAKE/MODEL IS COMPATIBLE IN THE "ALSO FITS" TAB BEFORE BUYING

Specifications:

Stator
Number of wires : 6
Number of terminals : 6
Alternator : Yellow to Black = 0.8 ohms+/-20%
Source 1 : Green to Red = 18 ohms+/-20%
Pickup 1 : White/Green to White/Red = 115 ohms+/-20%

Interior Diameter: 42mm
Exterior Diamter: 103mm
Thickness: 17mm

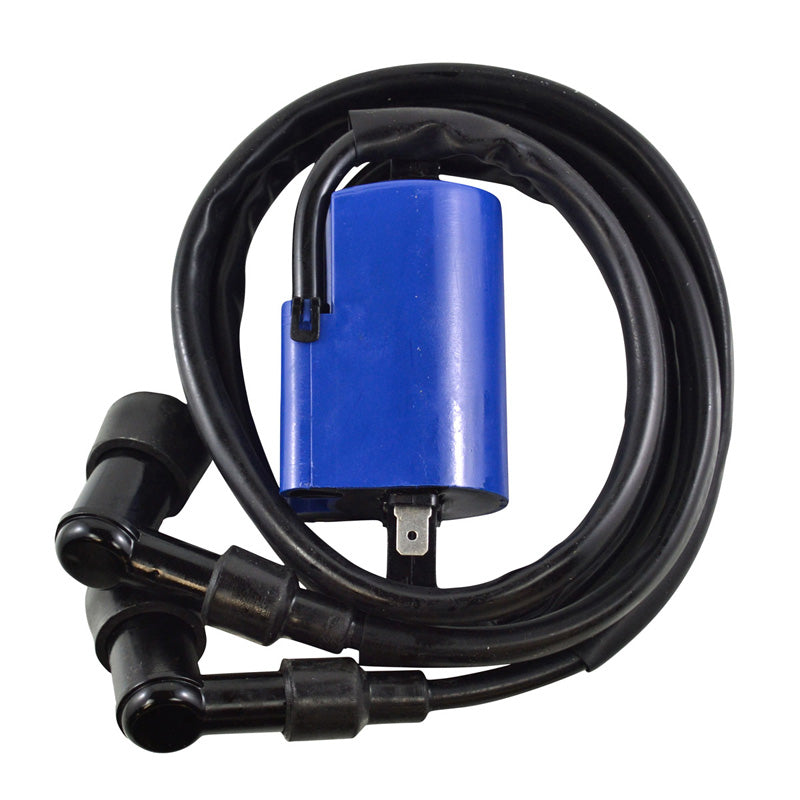

External Ignition coil
Bracket center to Bracket: 90mm

Flywheel
Diameter: 130 mm
