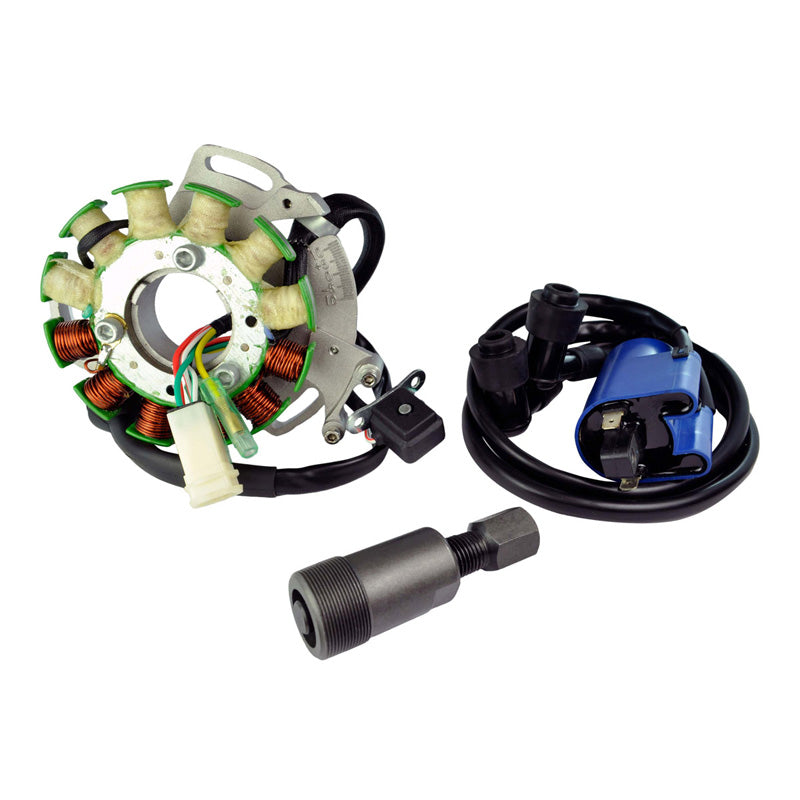

RMS Kit Stator 100 W + External Ignition Coil + Backplate + Flywheel Puller (Yamaha)

Brand new kit High Output Stator + External ignition Coil + Flywheel Puller

• All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

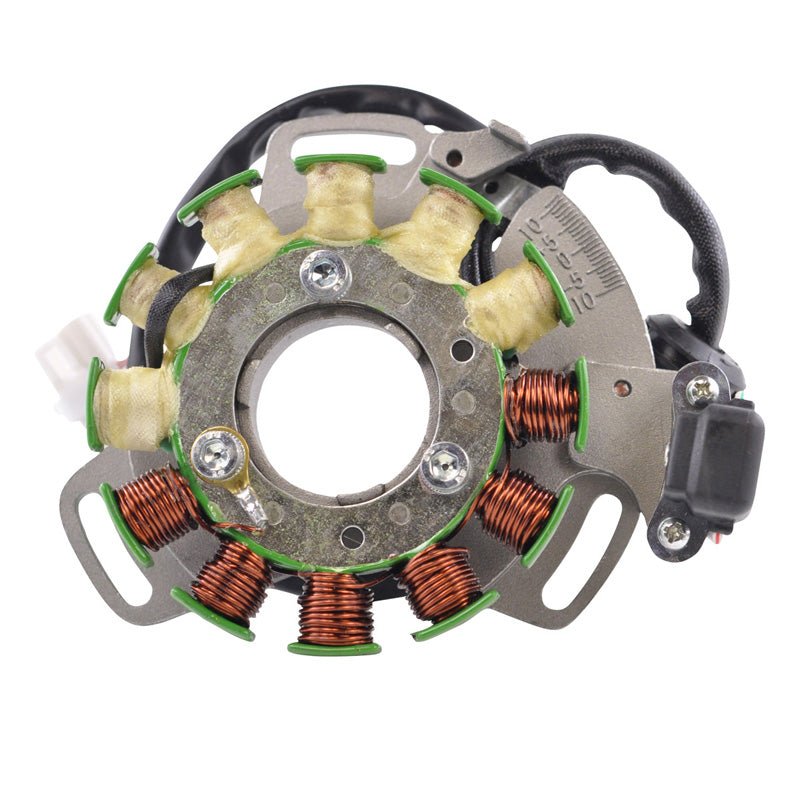

High Output stator assembly 100 watts

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

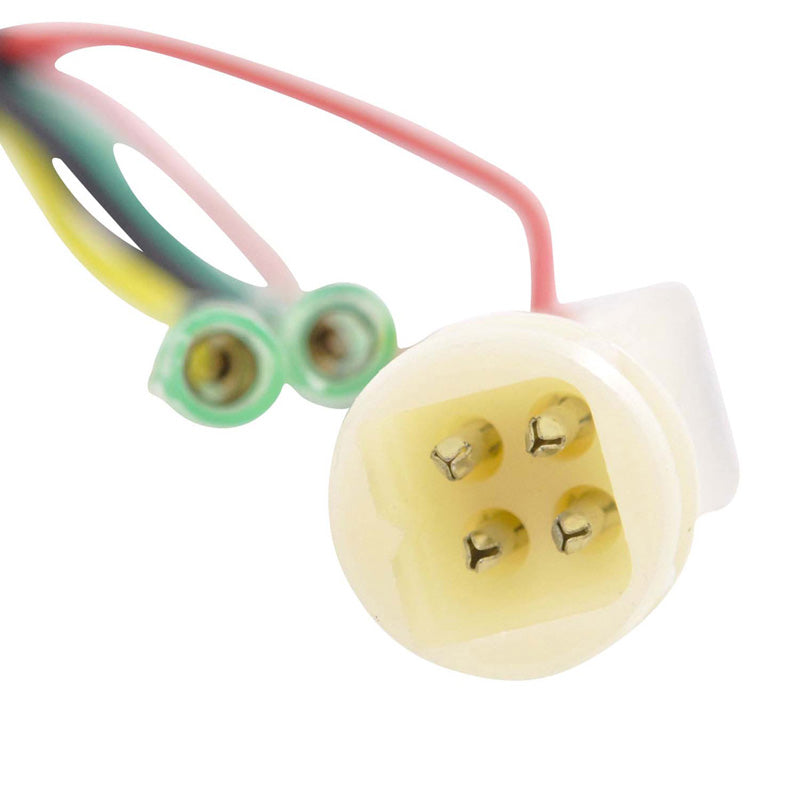

• Connector included
• Rubber grommet included

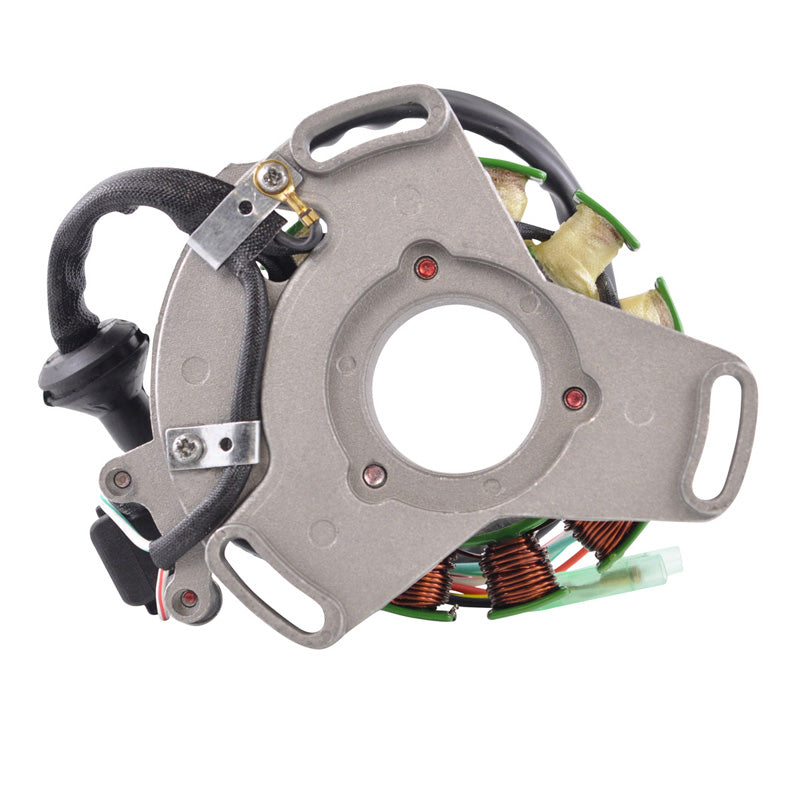

• Back Plate included

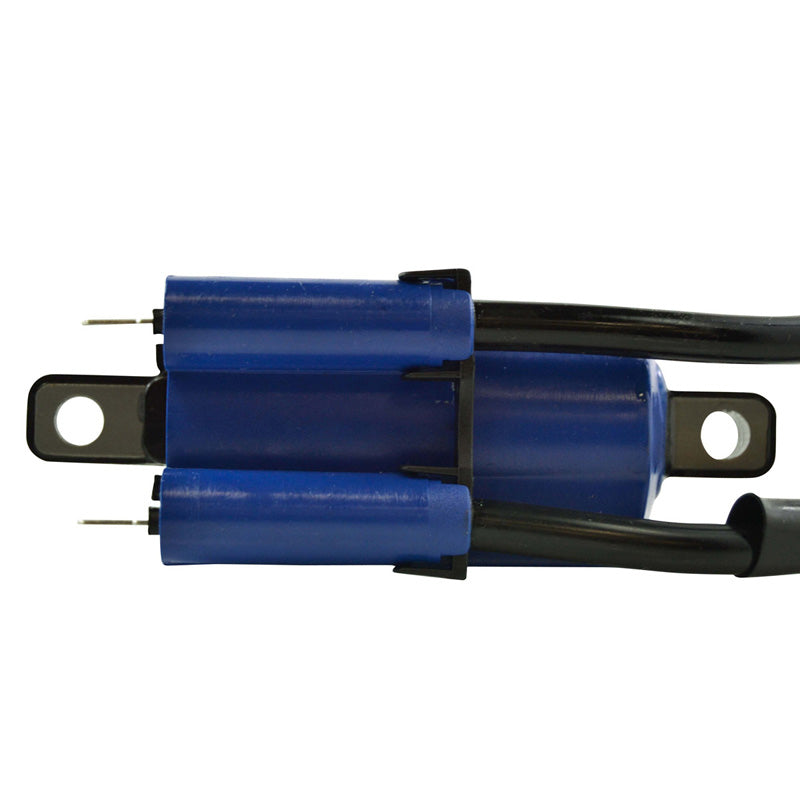

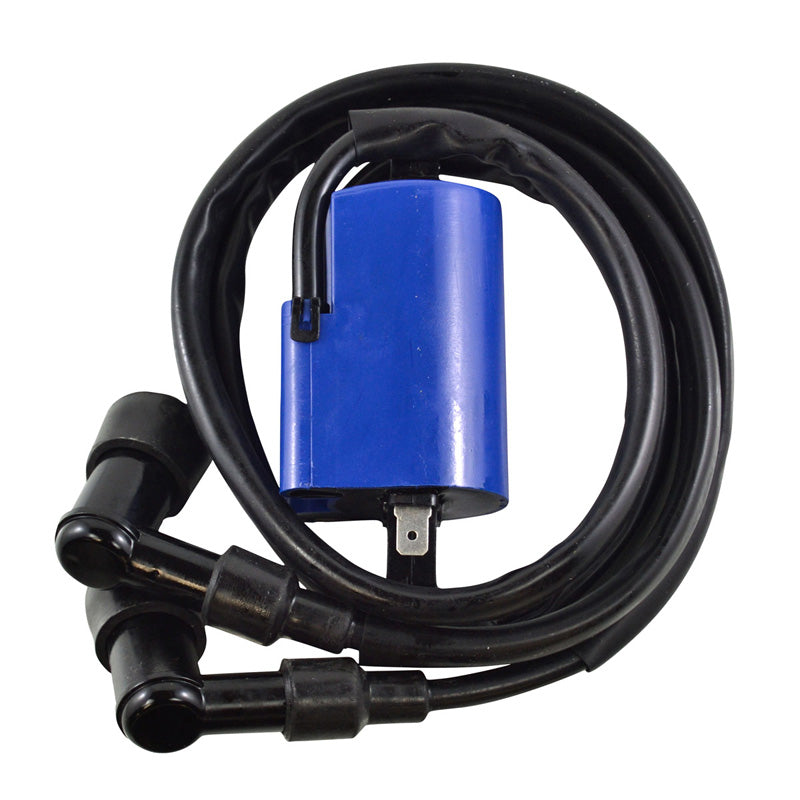

External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials

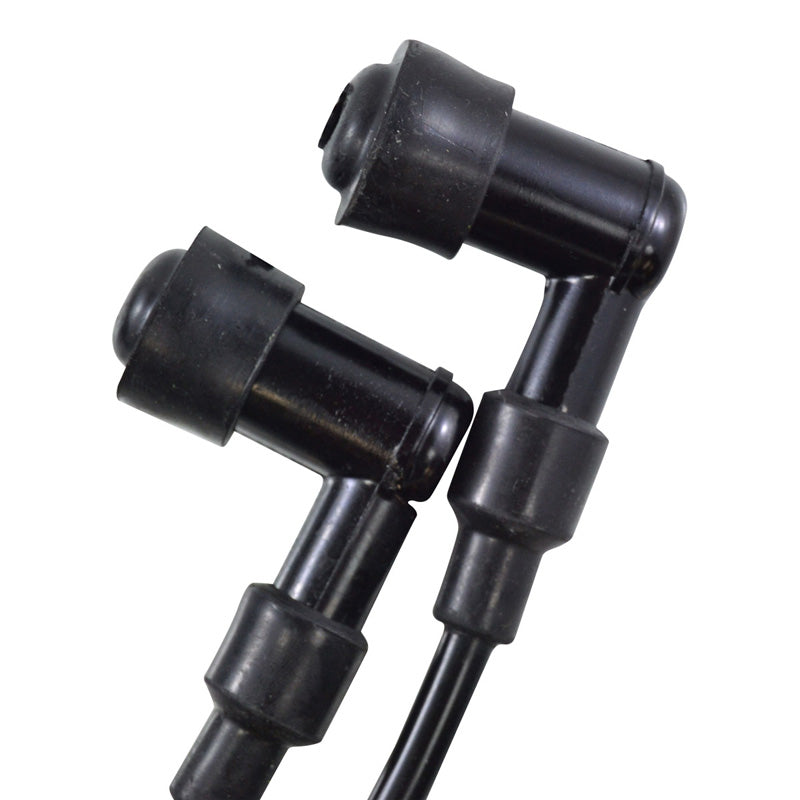

• Spark plug cap(s) included

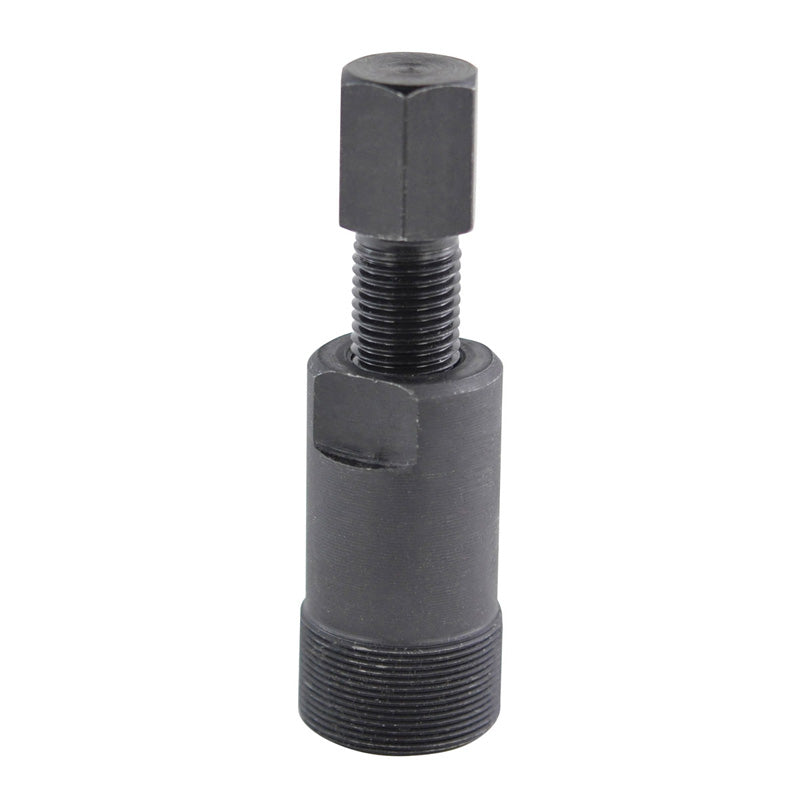

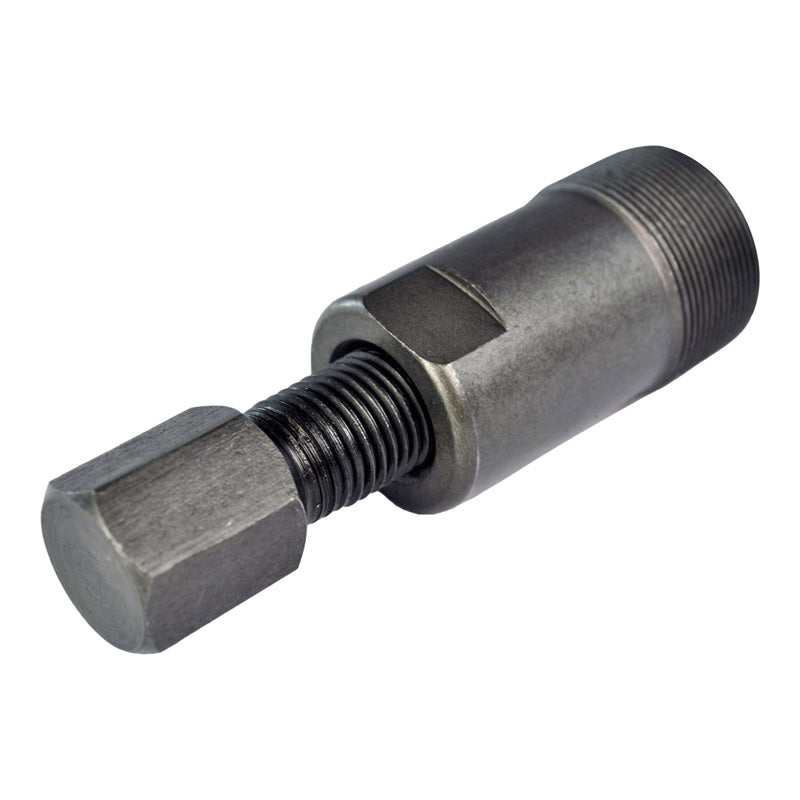

Flywheel Puller

• 27 MM x 1.0 Left hand male

PLEASE CHECK IF YOUR MAKE/MODEL IS COMPATIBLE IN THE "ALSO FITS" TAB BEFORE BUYING

Specifications:

Stator
Dimensions :
Interior diameter : 41mm
Exterior diameter : 103mm
Thickness : 5mm
Length of wires stator to grommet : 125mm
Length of wires grommet to plug : 310mm
Length of pickup coil's wire to grommet : 90mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins :6

Wire to wire resistance :
Alternator : Black to yellow = 0.2 ohms +/-20%
Pickup : White/Red to White/Green = 125 ohms +/-20%
Source : Green to Red = 22 ohms +/-20%

External Ignition Coil

Bracket center to bracket : 90mm
Primary Resistance: 0.4?
Secondary Resistance: 6.0K?
Damped Resistance: 5K
Voltage Transfer Ratio: 150:1
Insulation Resistance: >1000M
