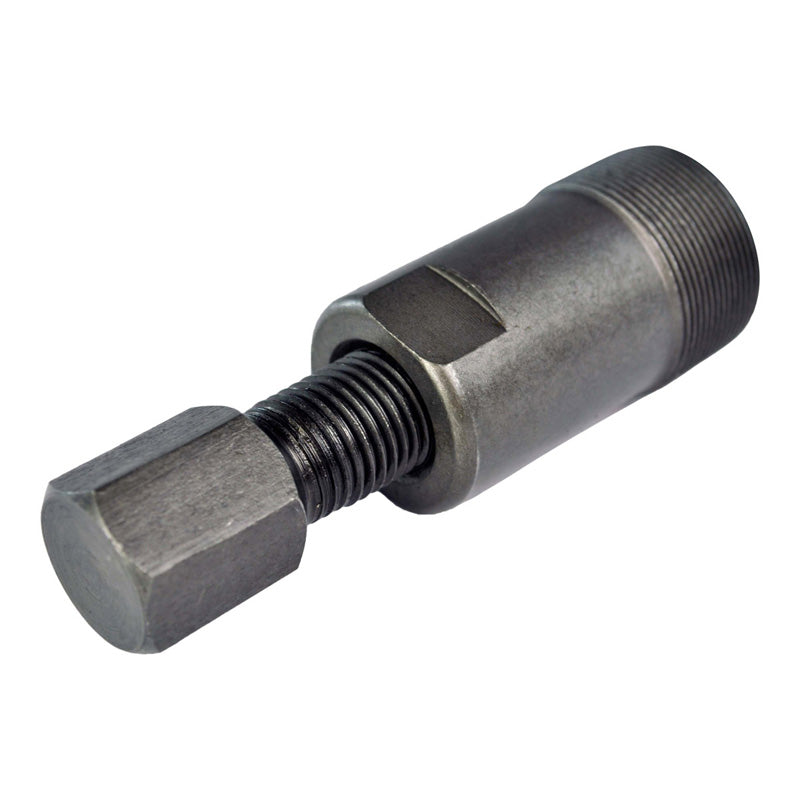

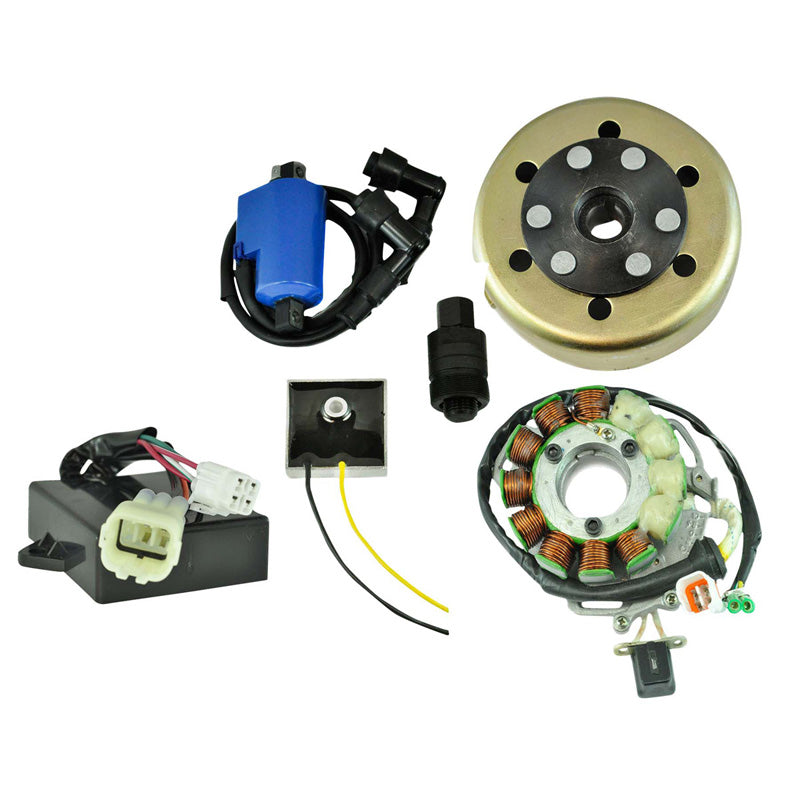

RMS High Output Performance Stator 200 W + Regulator + CDI + Coil + Flywheel + Puller (Yamaha)

Brand New Kit Stator + PeakRPM CDI Box + External Ignition Coil + Flywheel + Puller

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

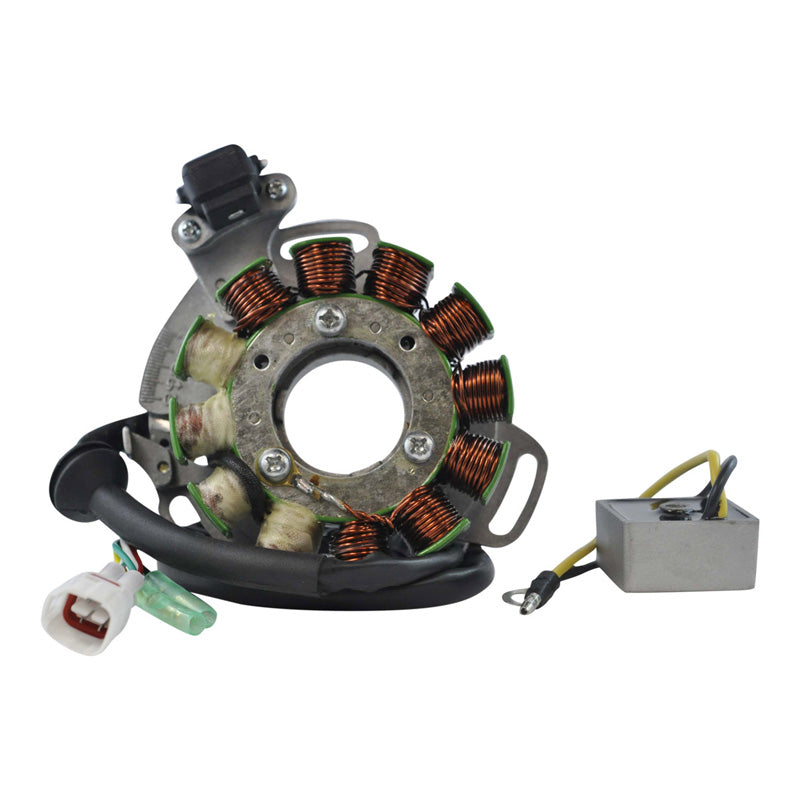

High Output Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

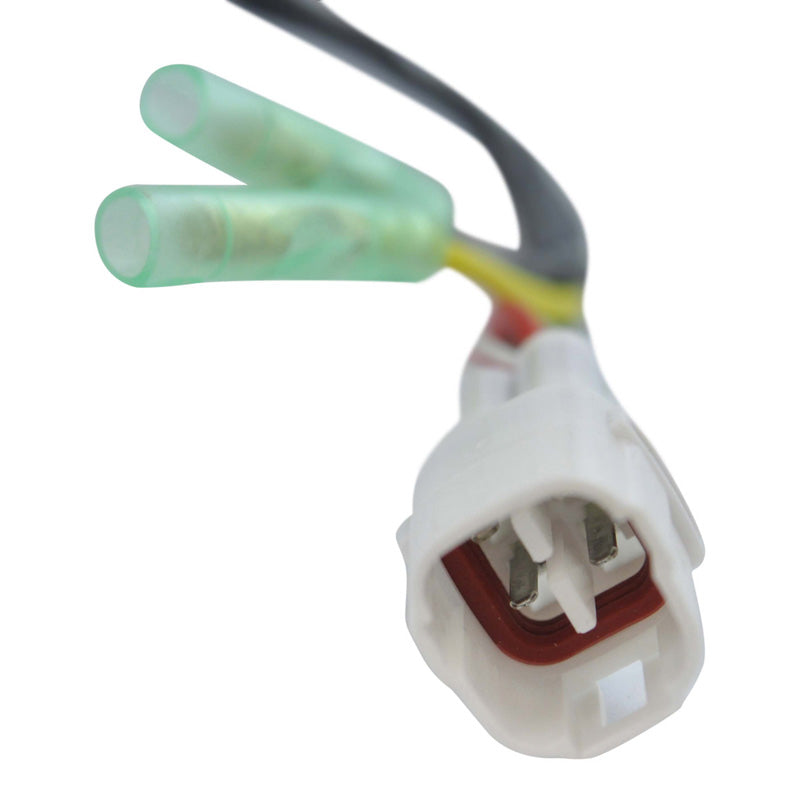

• Connector included
• Rubber grommet included
• Back Plate included

For a limited time we are including a FREE Tympanum AC regulator required to run the extra wattage supplied from our 200W stator.

• AC Regulator
• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

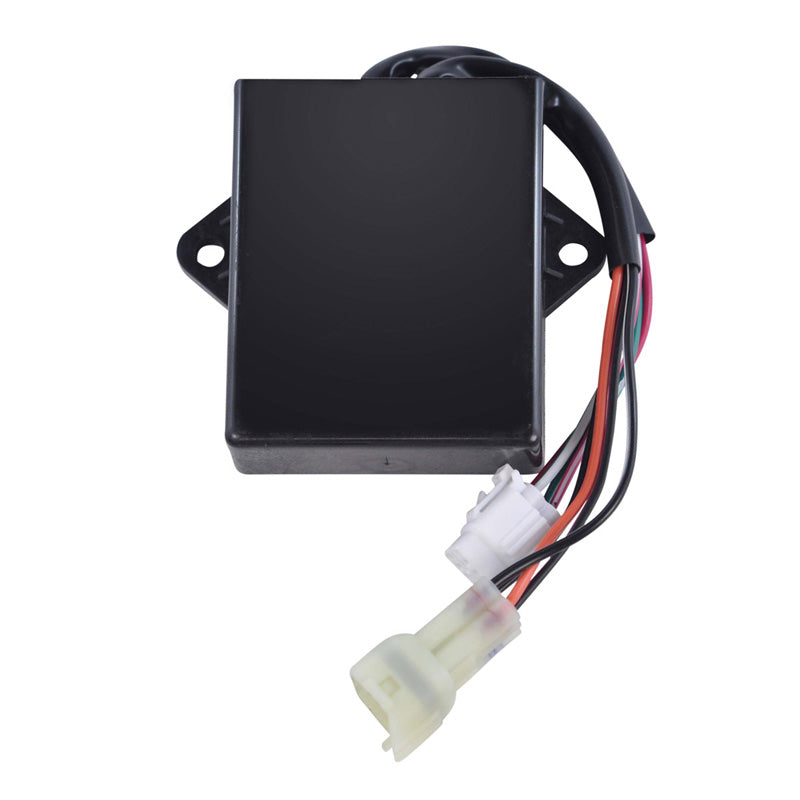

PeakRPM CDI Box:

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components

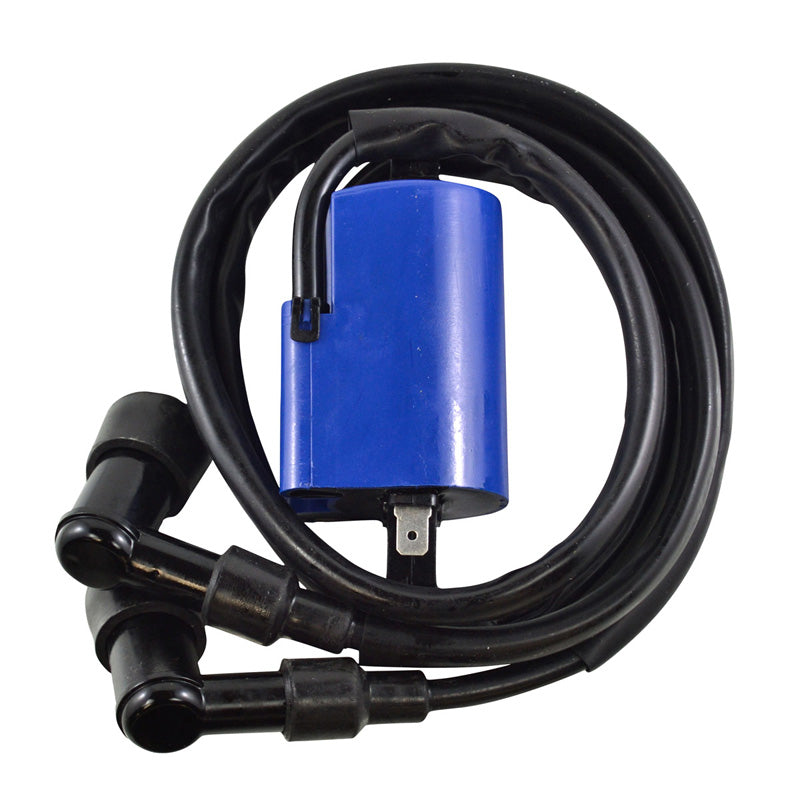

External Ignition Coil

• Highest grade of lamination materials

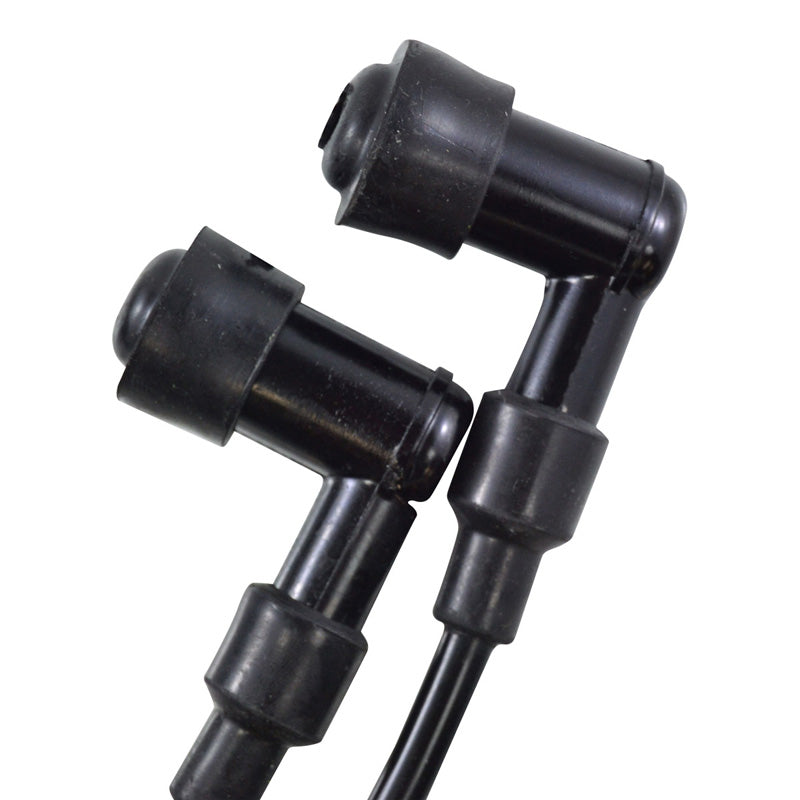

• Spark plug cap(s) included

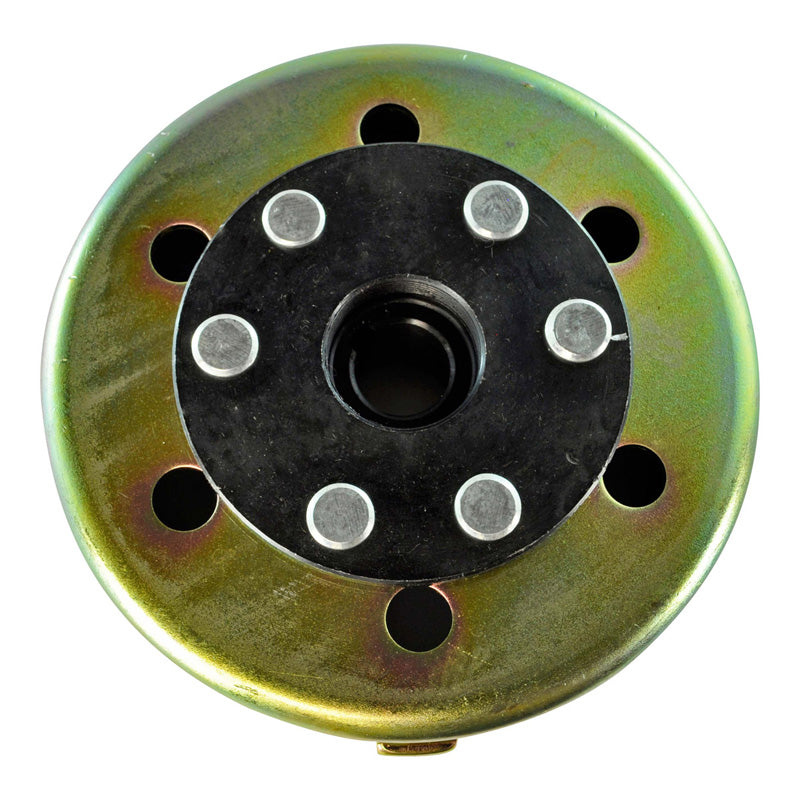

Improved Stronger Magneto Flywheel Rotor
RMSTATOR is offering a new replacement flywheel with stronger magnetsfor your Banshee. This flywheel can be used as a direct replacement to the OEM.
We suggest combining it to our 100 or 200 watt stator as it will run the lights better in the lower rpm's.

Specifications:

Stator
Interior diameter : 103mm
Exterior diameter : 34mm
Thickness : 27mm
Length of wires stator to grommet : 60mm
Length of wires grommet to plug : 520mm
Length of pickup coil's wire to grommet : 80mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to Black = 0.4ohms +/-20%
Pickup : White/Green to White/Red = 115ohms +/-20%
Source : Green to Red = 12ohms +/-20%

Dimensions AC Regulator:
Height: 20 mm
Length: 45 mm
Width: 45 mm

Other specifications:
Number of terminals: 2
Wires length: 130 mm

Dimensions High Performance CDI Box:
Height: 25mm
Length: 87mm
Width: 71mm
Fixation holes center to center: 85mm

Other specifications:

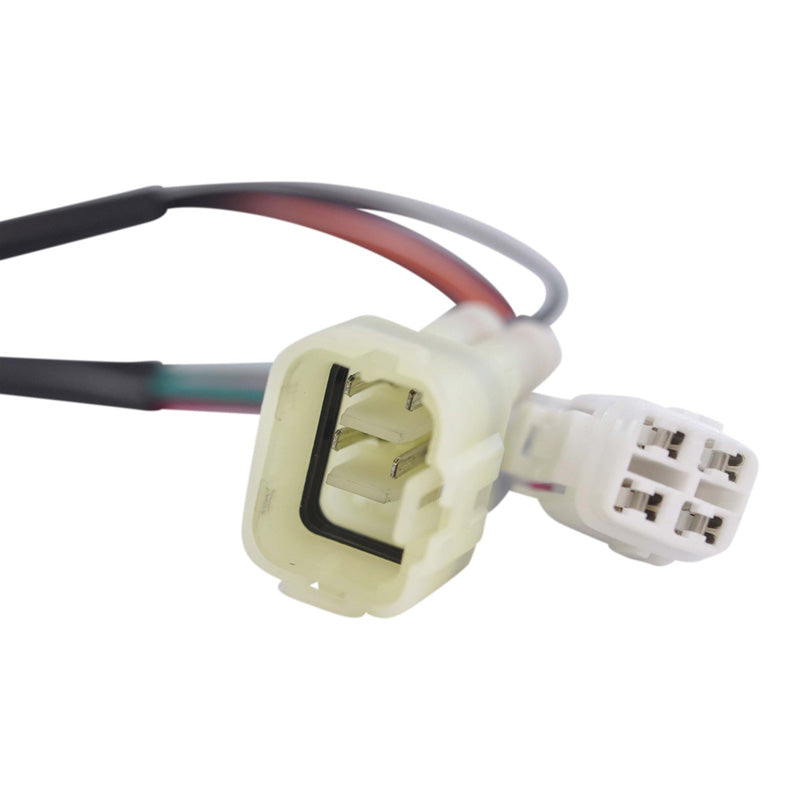

Number of plugs: 2
Number of pins: 8

External Ignition coil
Distance between fixation holes: 90mm
