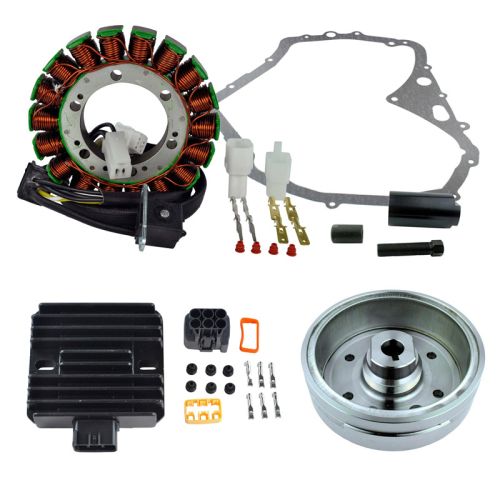

RMS Kit Improved Flywheel + Puller + Stator + Voltage Regulator + Gasket (Suzuki)

PLEASE NOTE: This kit will not fit automatic transmissions, but only the manual models.

Brand new Kit Magneto Flywheel + Puller + Stator + Gasket + Mosfet Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Magneto flywheel rotor
RMSTATOR is offering a new replacement flywheel. This flywheel can be used as a direct replacement to the OEM.

Flywheel Puller

• 50 MM x 1.5 Right Hand Female
• Brand new flywheel puller

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier

• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Voltage Regulator Rectifier:
Dimensions :
Number of pins : 6
Bracket center to center 72 mm
Thickness 28 mm
Height 84 mm

Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Flywheel

Dimensions :
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
