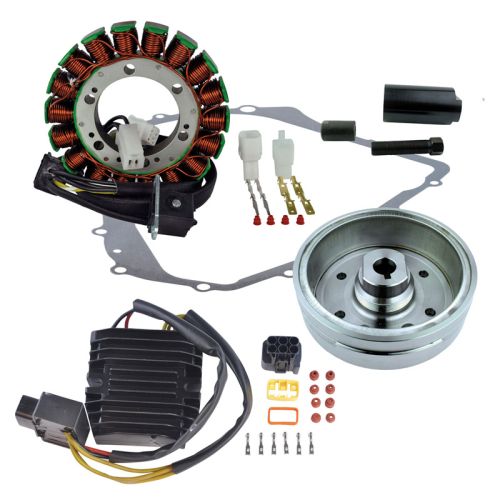

RMS Kit Improved Flywheel + Flywheel Puller + Stator + Mosfet Regulator + Gasket (Suzuki)

Brand new Kit Magneto Flywheel + Puller + Stator + Gasket + Mosfet Voltage Regulator Rectifier

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Magneto flywheel rotor
RMSTATOR is offering a new replacement flywheel. This flywheel can be used as a direct replacement to the OEM.

This product is an advanced design that lowers operating temperatures for extended longevity and better performance than the OEM part.

STOP BURNING YOUR REGULATOR RECTIFIER !
It is time to update or replace your voltage regulator with the advanced MOSFET type.
This modern, ultra-reliable design can handle up to 50amp peaks and 30amp continuous 3 phase, 30amp single phase.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

• Higher grade of electronic components
• Improved heat sink and charging capabilities

Specifications:

Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Mosfet Voltage Regulator Rectifier:
Dimensions :
Width : 93mm
Length : 102mm
Height: 27mm
Fixation holes center to center : 72mm

Other specifications :
Number of plugs : 1
Number of pins : 6
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 50A/500W
Open Circuit Voltage: <15V
Operation Temperature: -20? to 85?

Flywheel

Dimensions :
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
