Kimpex | SKU: 19-1010-KIMP

Kimpex Universal Joint

Name: Kimpex Universal Joint
Brand: Kimpex
SKU: 19-1010-KIMP
Price: 36.54 CAD
Availability: InStock

$36.54 $42.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

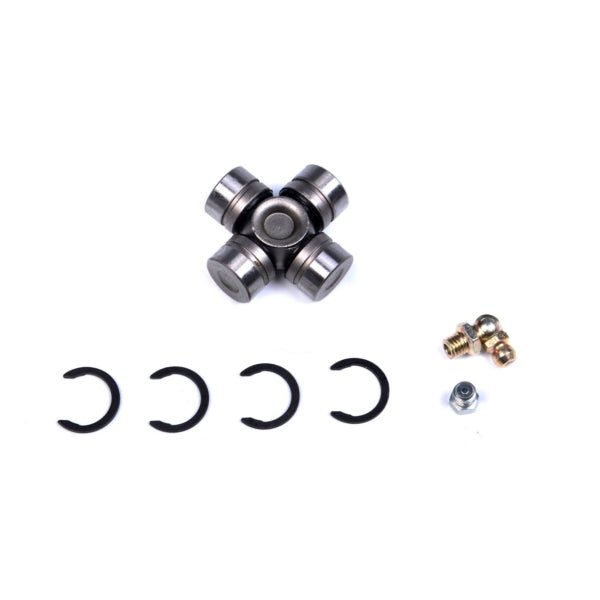

U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
U Joints are pre greased with hi-temp Lithium Complex 3 grease.
Bearing cups feature a Quad lip seal to keep contamination out and grease in.
Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
Kits include cap plug to eliminate grease zerk for low clearance applications.
Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.

Notes for utility Models:

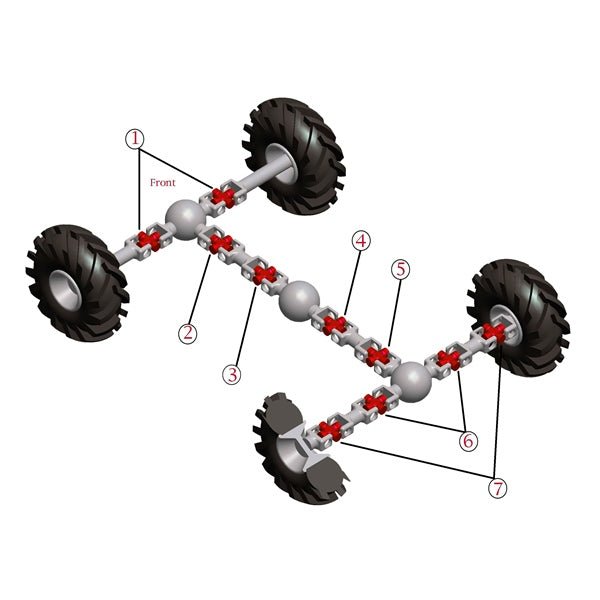

A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)

B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)

C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)

In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.

SKU: 19-1010-KIMP
Model number: 19-1010-KIMP
Original Product Type: Universal Joints
Position: Varies by model
Snap ring included: Yes
Tip length: 0.630"
Total length: 1.087"
Zerk: Yes

Make	Model	Years
KAWASAKI	Bayou 300 4x4	1989-2005
KAWASAKI	KAF620A 4x4 Mule 2510	1993-1999
KAWASAKI	KLF300C 4x4 Bayou 300	1989-2005
KAWASAKI	Mule 2510 4x4	1993-1999
