Kimpex  |  SKU: 19-1005-KIMP

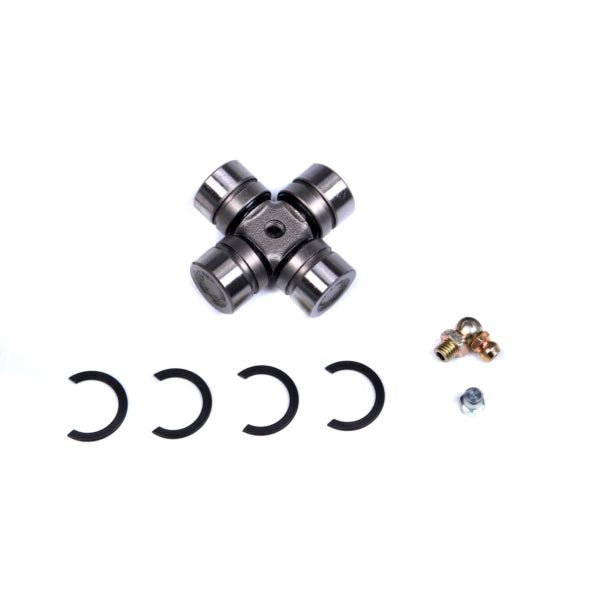

Kimpex Universal Joint

$37.99 $41.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

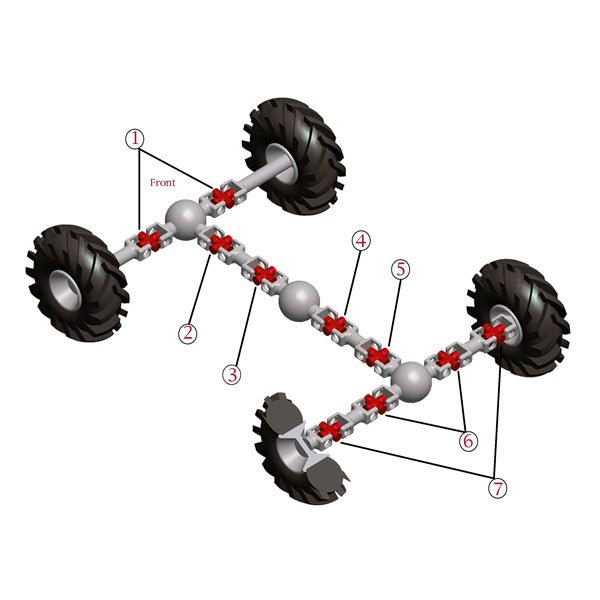

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1005-KIMP
    • Model number: 19-1005-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.94"
    • Total length: 1.54"
    • Zerk: Yes
    MakeModelYears
    ARCTIC CAT (TEXTRON)Havoc X EPS2018
    ARCTIC CAT (TEXTRON)Stampede 4 EPS2018
    ARCTIC CAT (TEXTRON)Stampede EPS2017-2018
    ARCTIC CAT (TEXTRON)Stampede LTD EPS2017
    ARCTIC CAT (TEXTRON)Stampede XT EPS2017
    ARCTIC CAT (TEXTRON)Stampede XTR LTD EPS2017
    ARCTIC CAT (TEXTRON)Stampede XTR XT EPS2017
    HONDATalon 1000R SXS1000S2R2019-2022
    HONDATalon 1000X SXS1000S2X2019-2022
    HONDATalon 1000X-4 FOX LIVE VALUE SXS1000S4XD2020-2022
    HONDATalon 1000X-4 SXS1000S4X2020, 2022
    POLARISACE 3252014-2016
    POLARISACE 5002017-2019
    POLARISACE 5702015-2017
    POLARISACE 570 EPS2018-2019
    POLARISACE 570 SP EPS2017
    POLARISACE 570 SP EPS Titanium Matte2017
    POLARISACE 900 XC2018
    POLARISACE 900 XC EPS2017, 2019
    POLARISATP 330 4x42004-2005
    POLARISATP 500 4x42004-2005
    POLARISBig Boss 400L 6X61995-1996
    POLARISBrutus HDPTO2015-2017
    POLARISDiesel 455 4x42001
    POLARISGeneral 1000 EPS2016-2017
    POLARISGeneral 1000 EPS Premium2021
    POLARISGeneral 1000 Premium2021
    POLARISGeneral 4 1000 EPS2017-2020
    POLARISGeneral 4 1000 Premium2022
    POLARISGeneral 4 1000 XP Deluxe EPS2021
    POLARISGeneral 4 1000 XP Factory Custom Edition EPS2021
    POLARISGeneral XP 4 1000 Deluxe2022
    POLARISHawkeye 300 4x42006-2007
    POLARISMagnum 325 2X42000-2002
    POLARISMagnum 325 4X42000-2002
    POLARISMagnum 330 4x42003-2005
    POLARISMagnum 425 4X41995-1997
    POLARISMagnum 425 4X4 4 stroke1995
    POLARISMagnum 500 2x42002
    POLARISMagnum 500 4x41999-2003
    POLARISRZR 4 8002012-2013
    POLARISRZR 4 800 LE EPS2011, 2014
    POLARISRZR 4 800 LE Robby Gordon2010
    POLARISRZR 4 900 EPS2015-2017
    POLARISRZR 4 900 LE EPS2014
    POLARISRZR 5702012-2019
    POLARISRZR 570 EPS2018-2019
    POLARISRZR 8002008-2014
    POLARISRZR 9002015-2019
    POLARISRZR 900 EPS2015, 2017-2019
    POLARISRZR 900 Trail 50 INCH2020
    POLARISRZR 900 Trail EPS2016
    POLARISRZR 900 Trail EPS LE Fox Edition2016
    POLARISRZR 900 Trail Premium2020, 2022-2023
    POLARISRZR 900 Trail Premium 50 INCH2020
    POLARISRZR 900 Trail Sport2022
    POLARISRZR 900 Trail Sport 50 INCH2021
    POLARISRZR 900 Trail Ultimate2022
    POLARISRZR 900 XC EPS2015-2017
    POLARISRZR PRO XP 4 Premium2021
    POLARISRZR PRO XP 4 Premium EFI2020-2023
    POLARISRZR PRO XP 4 Sport2021
    POLARISRZR PRO XP 4 Sport EFI2021-2023
    POLARISRZR PRO XP 4 Ultimate2021
    POLARISRZR PRO XP 4 Ultimate EFI2020-2023
    POLARISRZR PRO XP Premium2020-2022
    POLARISRZR PRO XP Premium EFI2020-2022
    POLARISRZR PRO XP Sport2021-2022
    POLARISRZR PRO XP Sport EFI2021-2022
    POLARISRZR PRO XP Ultimate2020-2022
    POLARISRZR PRO XP Ultimate EFI2020-2022
    POLARISRZR RS12022
    POLARISRZR RS1 10002018-2022
    POLARISRZR S1000 EPS2016-2019
    POLARISRZR S4 1000 EPS2019-2020
    POLARISRZR S570 EPS2017
    POLARISRZR S8002009-2014
    POLARISRZR S800 LE2010-2011
    POLARISRZR S9002015-2019
    POLARISRZR S900 EPS2015-2019
    POLARISRZR Trail 5702020-2022
    POLARISRZR Trail 570 Premium EPS2020-2021
    POLARISRZR Trail Premium2022-2023
    POLARISRZR Trail S1000 Premium 60 INCH2022-2023
    POLARISRZR Trail S1000 Ultimate 60 INCH2022
    POLARISRZR Trail S900 60 INCH2020
    POLARISRZR Trail S900 Premium 60 INCH EPS2020
    POLARISRZR Trail S900 Sport 60 INCH2022-2023
    POLARISRZR Trail Sport2022
    POLARISRZR Trail Ultimate2022
    POLARISRZR XP 1000 EPS2015-2020
    POLARISRZR XP 1000 EPS DYNAMIX Edition2019
    POLARISRZR XP 1000 EPS LE2014, 2020
    POLARISRZR XP 1000 EPS Trail and Rock2018-2022
    POLARISRZR XP 1000 High Lifter EPS2015-2022
    POLARISRZR XP 1000 Premium EPS2020
    POLARISRZR XP 4 1000 EPS2014-2020
    POLARISRZR XP 4 1000 EPS DYNAMIX Edition2019
    POLARISRZR XP 4 1000 High Lifter EPS2017-2022
    POLARISRZR XP 4 1000 Premium EPS2021-2023
    POLARISRZR XP 4 1000 Sport2022
    POLARISRZR XP 4 1000 Sport EPS2022
    POLARISRZR XP 4 9002012-2013
    POLARISRZR XP 4 925 Turbo EPS2016
    POLARISRZR XP 4 Turbo EPS2016-2021
    POLARISRZR XP 4 Turbo EPS LE2019
    POLARISRZR XP 9002011-2013
    POLARISRZR XP Turbo EPS2017-2021
    POLARISRanger 1000 EPS2020
    POLARISRanger 325 ETX2015-2016
    POLARISRanger 4002014
    POLARISRanger 400 4x42010-2014
    POLARISRanger 500 2x42005-2009
    POLARISRanger 500 4x42004-2007, 2019-2021
    POLARISRanger 500 4x4 EFI2006-2013
    POLARISRanger 500 6x61999, 2004-2005
    POLARISRanger 500 Midsize2019
    POLARISRanger 5702021
    POLARISRanger 570 EPS Hunter Camo2016
    POLARISRanger 570 Full Size2015-2023
    POLARISRanger 570 Full Size EPS2015
    POLARISRanger 570 LE EPS2014
    POLARISRanger 570 Midsize2014-2021
    POLARISRanger 570 Midsize EPS2015-2020
    POLARISRanger 570 Premium EPS2021
    POLARISRanger 570 XP2016
    POLARISRanger 570 XP EPS2016
    POLARISRanger 700 6x6 EFI2006-2009
    POLARISRanger 700 HD2009
    POLARISRanger 700 XP2005, 2007
    POLARISRanger 700 XP EFI2006-2009
    POLARISRanger 800 6x62014-2016
    POLARISRanger 800 6x6 EFI2010-2016
    POLARISRanger 800 EFI2013-2014
    POLARISRanger 800 EFI EPS2013
    POLARISRanger 800 EFI Midsize2013-2014
    POLARISRanger 800 XP2011-2012
    POLARISRanger 800 XP EFI2010
    POLARISRanger 900 XP2013-2017
    POLARISRanger 900 XP EPS2013-2017
    POLARISRanger 900 XP High Lifter EPS2016
    POLARISRanger Crew 10002021-2022
    POLARISRanger Crew 1000 Diesel2012-2018
    POLARISRanger Crew 1000 EPS Camo2020
    POLARISRanger Crew 1000 Premium2021-2023
    POLARISRanger Crew 1000 Premium EPS2020-2023
    POLARISRanger Crew 1000 XP NorthStar Premium EPS2020
    POLARISRanger Crew 5002011-2013
    POLARISRanger Crew 5702014-2015
    POLARISRanger Crew 570 EPS2015
    POLARISRanger Crew 570 Full Size2021
    POLARISRanger Crew 570 Full-Size2015, 2022-2023
    POLARISRanger Crew 570 Premium EPS2021
    POLARISRanger Crew 570-42016-2020
    POLARISRanger Crew 570-4 EPS2016-2019
    POLARISRanger Crew 570-4 Premium EPS2020
    POLARISRanger Crew 570-62016-2020
    POLARISRanger Crew 570-6 EPS2016, 2019
    POLARISRanger Crew 7002008-2009
    POLARISRanger Crew 8002010-2014
    POLARISRanger Crew 800 EPS2011-2013
    POLARISRanger Crew 9002015
    POLARISRanger Crew 900 EPS2015
    POLARISRanger Crew 900 XP2014, 2019
    POLARISRanger Crew 900 XP EPS2014, 2019
    POLARISRanger Crew 900 XP EPS Camo2014
    POLARISRanger Crew 900-52016
    POLARISRanger Crew 900-5 EPS2016
    POLARISRanger Crew 900-5 EPS Camo2016
    POLARISRanger Crew SP 5702022-2023
    POLARISRanger Crew SP 570 NorthStar Edition2022
    POLARISRanger Crew SP 570 Premium2022
    POLARISRanger Crew XP 1000 20th Anniversary EPS2019
    POLARISRanger Crew XP 1000 EPS2017-2019
    POLARISRanger Crew XP 1000 High Lifter EPS2017-2018
    POLARISRanger Crew XP 1000 NorthStar EPS2017-2019
    POLARISRanger Crew XP 1000 Premium EPS2019-2020
    POLARISRanger Crew XP 1000 Texas Edition EPS2020
    POLARISRanger Crew XP 900-62017-2018
    POLARISRanger Crew XP 900-6 EPS Camo2017-2018
    POLARISRanger Diesel2011-2017
    POLARISRanger Diesel HST2014-2017
    POLARISRanger Diesel HST Deluxe2014
    POLARISRanger EV2022
    POLARISRanger EV 4X4 Electric Motor2010-2022
    POLARISRanger EV 4x42021
    POLARISRanger EV 4x4 LSV Electric Motor2011
    POLARISRanger EV Electric Motor2014-2020
    POLARISRanger EV LE2017
    POLARISRanger EV Li-ion2018
    POLARISRanger XP 1000 Mud High Lifter EPS2019
    POLARISScrambler 1000 XP EPS 4x42014-2019
    POLARISScrambler 1000 XP S2020
    POLARISScrambler 1000 XP S EPS2021, 2023
    POLARISScrambler 400L 4x41995-1996, 1998-2000
    POLARISScrambler 400L 4x4 X2002
    POLARISScrambler 500 4X41998-2012
    POLARISScrambler 8502015-2020
    POLARISScrambler 850 XP2014
    POLARISScrambler 850 XP LE EPS2014
    POLARISSportsman 1000 Touring XP EPS2015-2021
    POLARISSportsman 1000 Touring XP Trail EPS2022-2023
    POLARISSportsman 1000 XP 48" Trail Package2020
    POLARISSportsman 1000 XP EPS2015-2019, 2021
    POLARISSportsman 1000 XP EPS Ride Command Edition2023
    POLARISSportsman 1000 XP High Lifter EPS2016-2022
    POLARISSportsman 1000 XP Premium EPS2020
    POLARISSportsman 1000 XP S EPS2020, 2022-2023
    POLARISSportsman 1000 XP Ultimate Trail EPS2022-2023
    POLARISSportsman 300 4x42008-2010
    POLARISSportsman 325 ETX 4x42015
    POLARISSportsman 400 4X42001-2005, 2014
    POLARISSportsman 400 HO 4x42008-2013
    POLARISSportsman 400L 4X41995-1996
    POLARISSportsman 450 4x42006-2007
    POLARISSportsman 450 HO2016-2022
    POLARISSportsman 450 HO EPS2016, 2020-2022
    POLARISSportsman 500 4x41996-1998
    POLARISSportsman 500 6x62001-2008
    POLARISSportsman 500 EFI2006-2009
    POLARISSportsman 500 EFI Browning Edition2006
    POLARISSportsman 500 EFI Touring2008-2009
    POLARISSportsman 500 EFI deluxe2007
    POLARISSportsman 500 Forest 4X42011-2013
    POLARISSportsman 500 Forest Tractor 4X42011-2014
    POLARISSportsman 500 Forest Tractor EFI 4X42011
    POLARISSportsman 500 HO2001-2006, 2008-2013
    POLARISSportsman 500 HO Touring2010-2013
    POLARISSportsman 500 RSE2000
    POLARISSportsman 500 RSE / DUSE2001-2002
    POLARISSportsman 500 X2002
    POLARISSportsman 500 X2 EFI2006-2009
    POLARISSportsman 5502011-2013
    POLARISSportsman 550 EPS2012-2014
    POLARISSportsman 550 EPS Browning2011-2012
    POLARISSportsman 550 EPS Camo2014
    POLARISSportsman 550 Forest 4X42011-2014
    POLARISSportsman 550 Touring EPS2010-2014
    POLARISSportsman 550 X2 EFI2010-2013
    POLARISSportsman 550 X2 EPS2014
    POLARISSportsman 550 XP2009-2010
    POLARISSportsman 550 XP EPS2009-2010
    POLARISSportsman 550 XP LE Browning2009
    POLARISSportsman 570 4x42014-2021
    POLARISSportsman 570 EPS2014-2020
    POLARISSportsman 570 Forest 4X42014
    POLARISSportsman 570 Premium EPS2020-2022
    POLARISSportsman 570 SP EPS2015-2019
    POLARISSportsman 570 SP EPS Hunter2015-2016
    POLARISSportsman 570 Touring2014-2022
    POLARISSportsman 570 Touring EPS2015-2019
    POLARISSportsman 570 Touring Premium EPS2020-2022
    POLARISSportsman 570 Touring SP EPS2015-2019
    POLARISSportsman 570 Trail EPS2021
    POLARISSportsman 570 Trail Package2021
    POLARISSportsman 570 Ultimate Trail2021
    POLARISSportsman 570 Utility HD2022
    POLARISSportsman 570 X2 EPS2015-2021
    POLARISSportsman 6002003-2005
    POLARISSportsman 7002002-2006
    POLARISSportsman 700 EFI2004-2007
    POLARISSportsman 700 EFI Browning Edition2006
    POLARISSportsman 700 EFI Hunter Edition2005
    POLARISSportsman 700 Military Vehicule MV2005
    POLARISSportsman 700 X2 EFI2008
    POLARISSportsman 800 6x6 Big Boss2009-2014
    POLARISSportsman 800 EFI2005-2008, 2010-2014
    POLARISSportsman 800 EFI Browning Edition2006
    POLARISSportsman 800 EFI HO2008-2009
    POLARISSportsman 800 EFI Hunter Edition2005
    POLARISSportsman 800 EFI Touring2008-2009
    POLARISSportsman 800 Forest 4X42012-2014
    POLARISSportsman 800 Forest 6X62013
    POLARISSportsman 800 Forest EFI 4X42014
    POLARISSportsman 800 X2 EFI2007-2009
    POLARISSportsman 8502015, 2021-2022
    POLARISSportsman 850 Forest 4X42011-2014
    POLARISSportsman 850 High Lifter EPS2016-2022
    POLARISSportsman 850 Premium EPS2021-2022
    POLARISSportsman 850 SP EPS2015-2019
    POLARISSportsman 850 Touring EFI EPS2010-2011
    POLARISSportsman 850 Touring EPS2010-2014, 2021-2022
    POLARISSportsman 850 Touring SP EPS2015-2019
    POLARISSportsman 850 Ultimate Trail EPS2022-2023
    POLARISSportsman 850 X2 EFI2011
    POLARISSportsman 850 XP2009-2013
    POLARISSportsman 850 XP EPS2009-2014
    POLARISSportsman 850 XP EPS Browning2011
    POLARISSportsman 850 XP EPS Camo2014
    POLARISSportsman WV850 Terrainarmor2014
    POLARISSportsman XP 1000 Ultimate Trail2022
    POLARISXpedition 325 4X42000-2002
    POLARISXpedition 425 4X42000-2002
    POLARISXplorer 250 4X4 2 stroke2000-2002
    POLARISXplorer 400L 4x41995-1997, 1999
    POLARISXplorer 400L 4x4 2 stroke2000-2002
    POLARISXplorer 500 4X4 4 stroke1997
    Page 1 of 1

    Payment & Security

    Payment methods

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Mastercard
    • PayPal
    • Shop Pay
    • Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Back to top
