Kimpex | SKU:
SF-900-006550
10% off
Kimpex Stator, Flywheel, Puller, AC/DC Ignition Conversion Kit
Sale price
$757.99
Regular price
$841.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

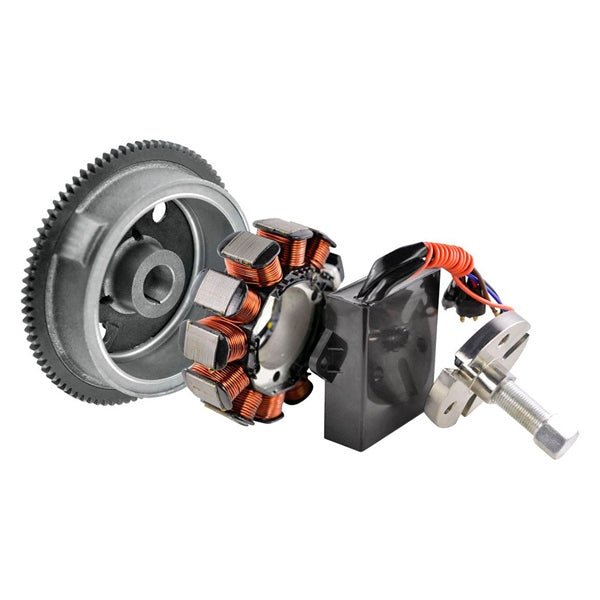

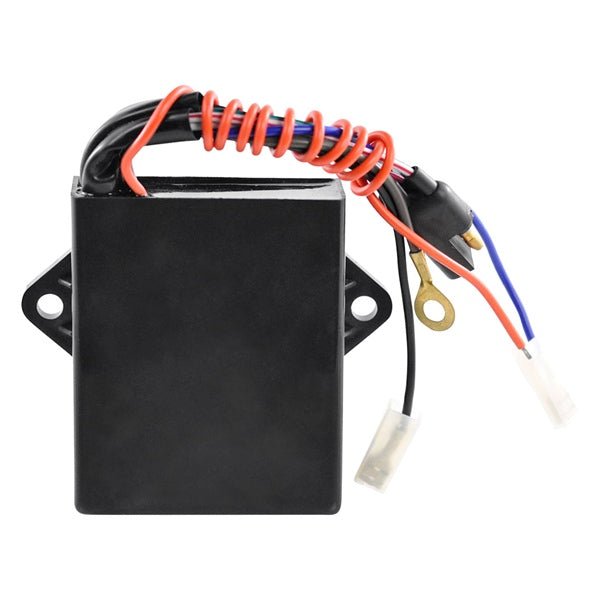

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.

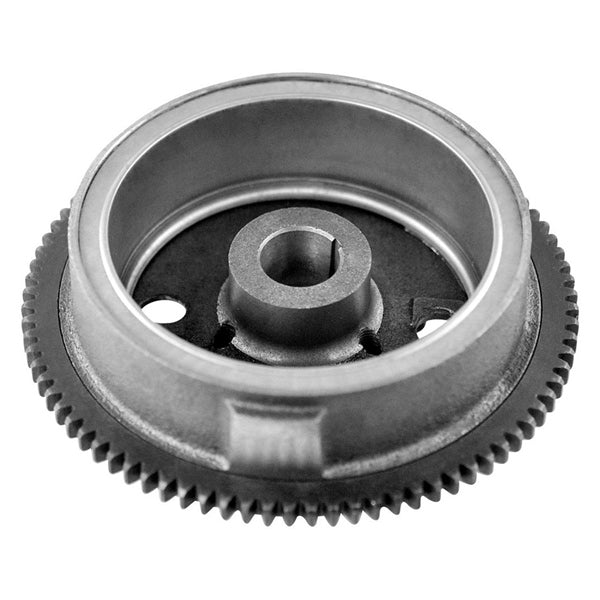

Flywheel
Dimensions:
Exterior Diameter: 141 mm Interior Diameter: 117 mm Interior Diameter Center Housing: 25 mm Exterior Diameter Center Housing: 23 mm

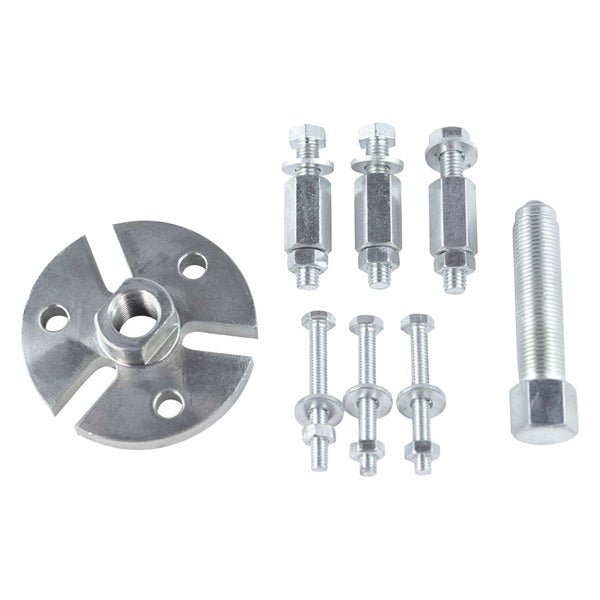

Flywheel Pullerr
Main Base Diameter: 105 mm (4.1"") Thickness: 12mm (0.5"")
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler

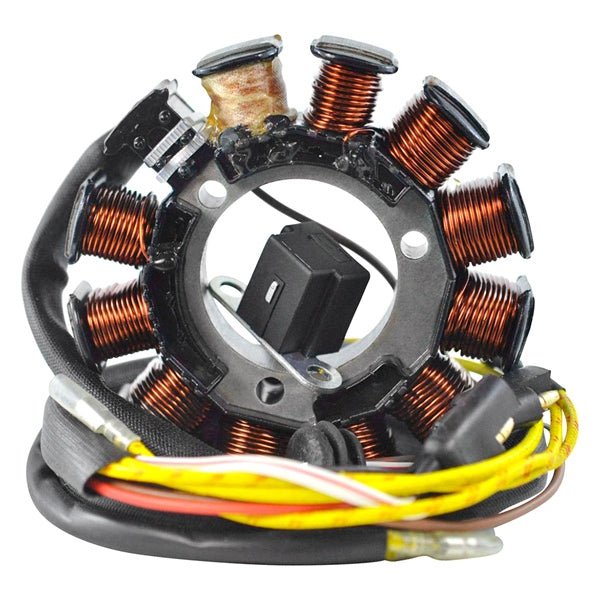

Generator Stator
Dimensions :
Interior diameter : 47 mm / 48mm Exterior diameter : 114 mm / 115mm Thickness : 20 mm Length of wires stator to grommet : 155 mm / 135mm Length of wires grommet to plug : 900 mm / 1200mm Length of pickup coil's wire to grommet : 60 mm / 120mm
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Interior diameter : 51 mm Exterior diameter : 114 mm Thickness : 20 mm
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Flywheel
Dimensions:
Flywheel Pullerr
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler
Generator Stator
Dimensions :
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
- SKU: SF-900-006550
- Compatible Brand: Fits Polaris
- External Diameter (mm): 115
- Internal Diameter (mm): 48
- Number: 345072
- Number of connectors: 6
- Number of terminals: 8
- Number of wires: 7
- Original Product Type: Stators
- Thickness (mm): 20
| Make | Model | Years |
|---|---|---|
| POLARIS | Magnum 500 2x4 | 2002 |
| POLARIS | Magnum 500 4x4 | 2000-2001, 2003 |
| POLARIS | Ranger 500 6x6 | 2003 |
| POLARIS | Scrambler 500 2x4 | 2001-2002 |
| POLARIS | Scrambler 500 4X4 | 2000-2002 |
| POLARIS | Sportsman 500 4x4 | 2000 |
| POLARIS | Sportsman 500 6x6 | 2002 |
| POLARIS | Sportsman 500 HO | 2001 |
