Kimpex | SKU:
SF-900-006580
15% off
Kimpex Stator, CDI Box & Ignition Coil Kit
Sale price
$668.09
Regular price
$785.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

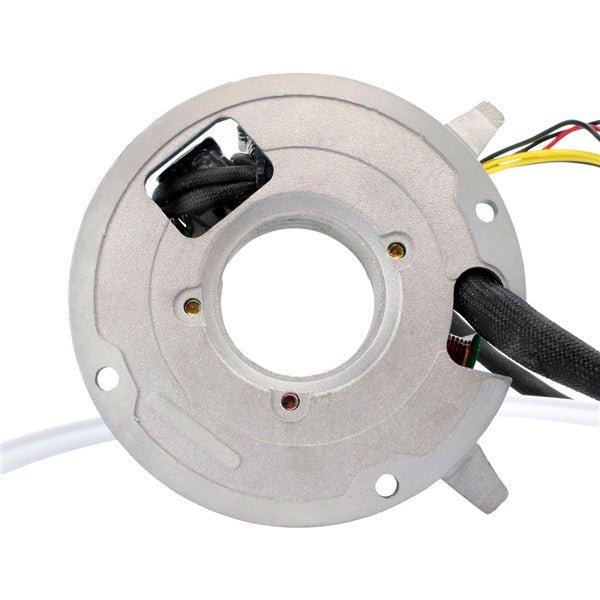

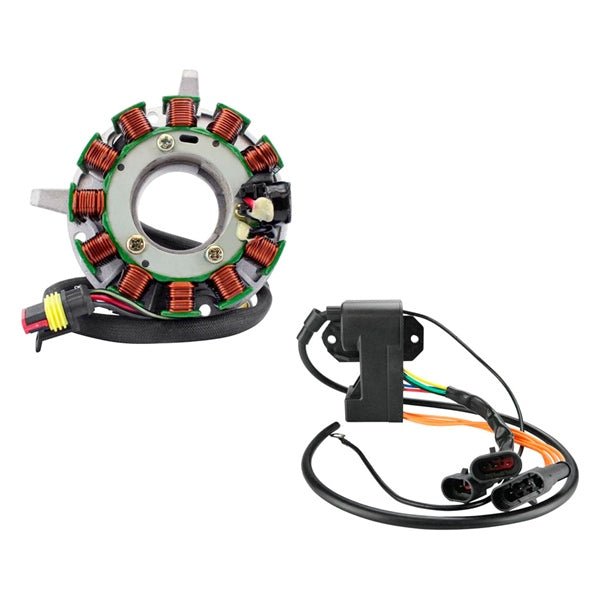

This kit includes: Stator, CDI Coil Module
All products shipped are tested

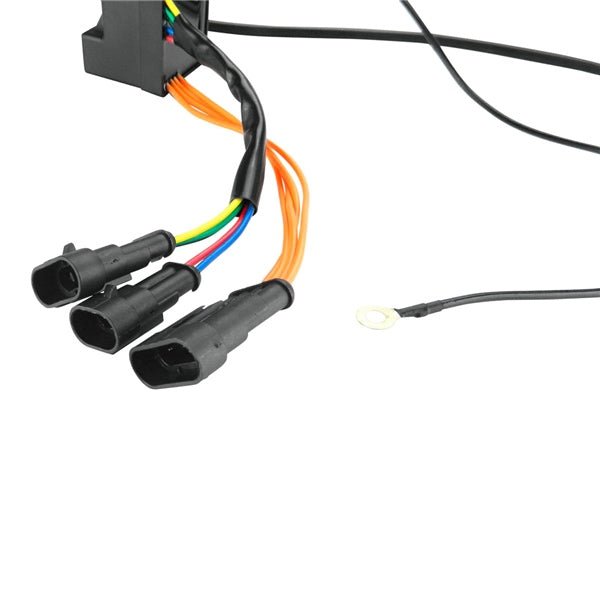

CDI Coil Module
Please Note:
All products shipped are tested
CDI Coil Module
- Our PeakRPM technology provides a more aggressive timing curve for increased throttle response.
- Ride at full throttle with our application-specific CDI box that raises the rev limiter by 1000 RPM.
- Enjoy fast & easy installation with our plug & play design and included dielectric connector grease.
- OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
- 90% of ignition issues are caused by a faulty stator.
- Fully test ignition components before buying.
- Direct replacement to your original unit
- Plug-and-play unit, direct fit, easy installation.
- Highest grade lamination materials
- Highest grade copper windings, resistant to 200 degrees Celsius.

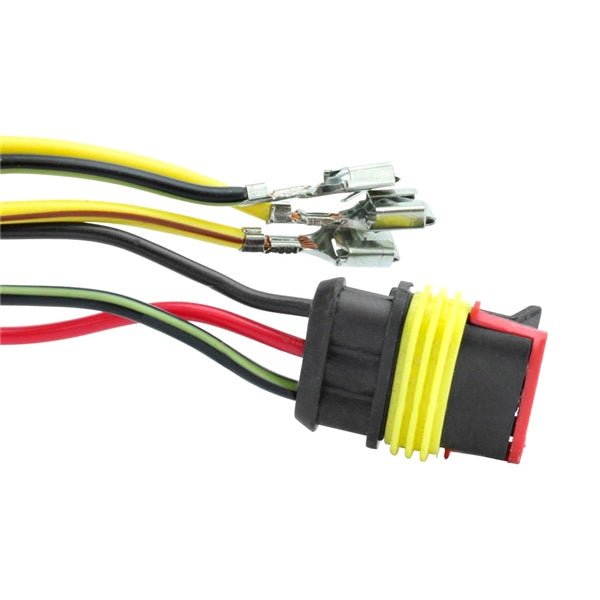

- Connector included
- Back Plate included
Please Note:
- This CDI Module external coil fits on 1 cylinder RER models only and it doesn't fits on Tundra II 250 1998
- Ski-Doo Tundra R 2000-2005 models ; RM01227 stator has a different visual configuration than the OEM equipment, but works perfectly and exactly as a replacement part to your OEM stator.
- The only real way to test your CDI box is to swap it out with another known good unit from the same year / make / model.
- Because of this, we recommend that you rule everything else out before replacing the CDI box.
- SKU: SF-900-006580
- Compatible Brand: Fits Ski-doo
- External Diameter (mm): 110
- Internal Diameter (mm): 43
- Number: 345079
- Number of connectors: 1
- Number of terminals: 6
- Number of wires: 6
- Original Product Type: Stators
- Thickness (mm): 32
| Make | Model | Years |
|---|---|---|
| SKI-DOO | Tundra R 277 F/C 139" | 1998, 2000, 2002-2005 |
