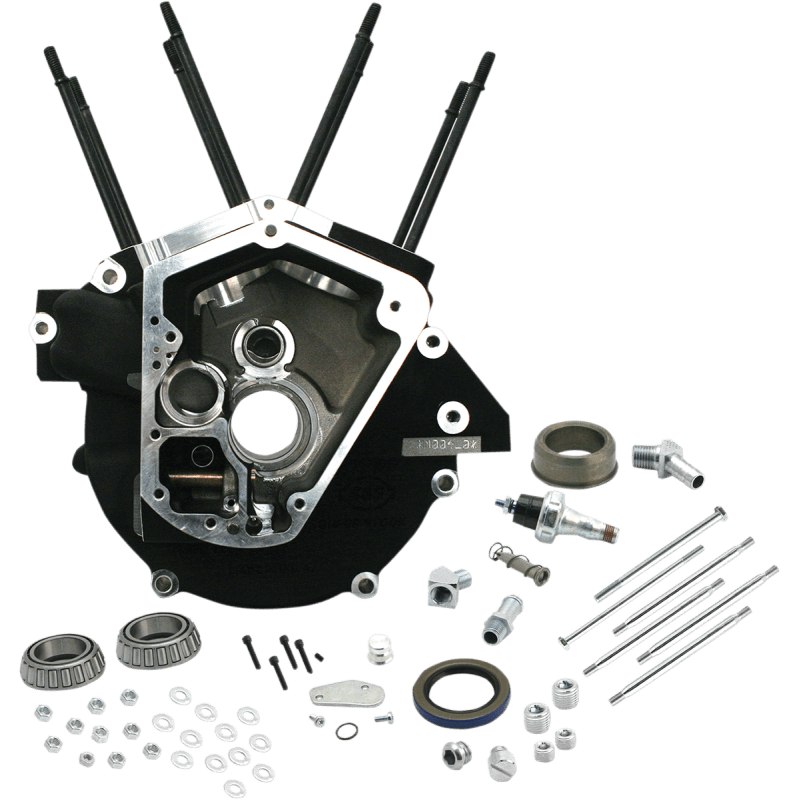

S&S Cycle 84-91 EVO WR/BLK Crank Cases

Cast from A356 T-6 heat-treated aluminum alloy

Include crankcase bolts, washers and nuts, cylinder mounting studs, timing hole plug, magnetic drain plug, assorted breather and oil line fittings, top end oil screen spring and plug, sprocket shaft Timken® bearing assembly, oil seal, pinion shaft main bearing race, cam needle bearing assembly, oil pump shaft bushings and installation instructions

Use Timken style sprocket shaft bearings and 1958 and later pinion bearings (will not accept 1957 and earlier flywheels)

Bearing races are all line honed and breather cavity is precision machined to optimize breather timing for maximum oil scavenging

Machined for 3.4375" cylinders and tapped 1/4"-20 for gear covers, oil pump, tappet guides, timer and timer advance

65 models use 65 alloy inner primary

Drilled for 5/16" generator mounting bolts

63-65 models with outside oil lines must use oil port to the rear of the tappet block or oil port in gear cover and use custom oil lines

Generator crankcase gear kit (includes circuit breaker drive gear, idler gear, circuit breaker gear and shims) and shafts must be purchased separately

Made in the U.S.A.
