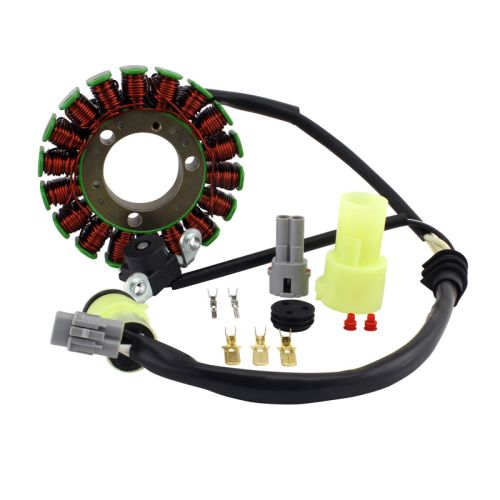

RMS 300W High Output Stator (Yamaha)

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

This stator output 300W (vs OEM 208W) to give you extra power to install accessories and lighting.

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 37 mm
Exterior diameter: 97 mm
Thickness: 14 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 180 mm
Length of pickup coil's wire to grommet: 180 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: White to White = 0.2 ohms +-20%
Pickup: White to Black = 260 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
