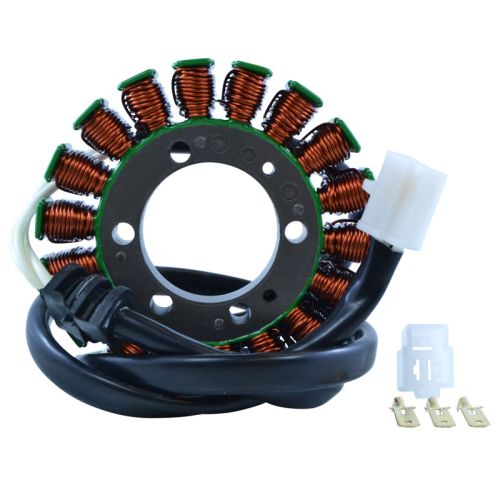

RMS Stator (Yamaha)

Brand new aftermarket stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 41 mm
Exterior diameter : 103 mm
Thickness : 23 mm
Length of wires stator : 1000 mm

Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3

Wire to wire resistance :
Alternator : Between each Black/Red = 0.4 ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
