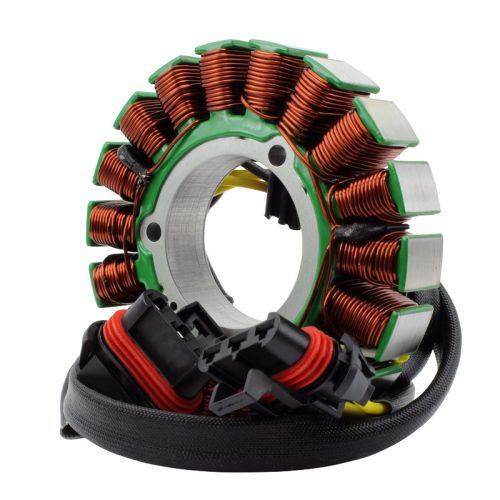

RMS 900W Dual Output Stator (Polaris)

Brand new aftermarket Dual output Stator 900W

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius.
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 26 mm
Length of wires stator to grommet : 125 mm
Length of wires grommet to plug : 290 mm and 550 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6
Number of poles : 18

Wire to wire resistance :
Alternator Yellow / Black to Yellow / Black : = 0.5 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
