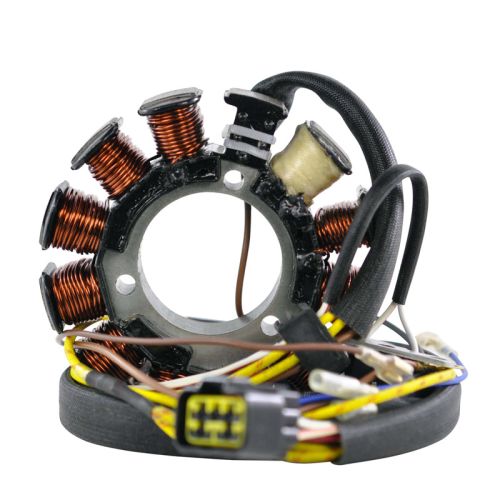

RMS Stator (Polaris)

Brand new generator stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 47mm
Exterior diameter : 114mm
Thickness : 20mm
Length of wires stator to grommet : 155mm
Length of wires grommet to plug : 900mm
Length of pickup coil's wire to grommet : 60mm

Other specifications :
Number of wires : 7
Number of plugs : 9
Number of pins : 12

Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4ohms +/-20%
Pickup : White/Red to White = 115ohms +/-20%
Source : Black to Red = 18ohms +/-20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please compare your current stator before buying.
There are two possible stators for many 2002-2003 Polaris models. This stator has a rectangular 4-pins plastic connector.

There are two stators possible for the 2004 Polaris Sportsman
