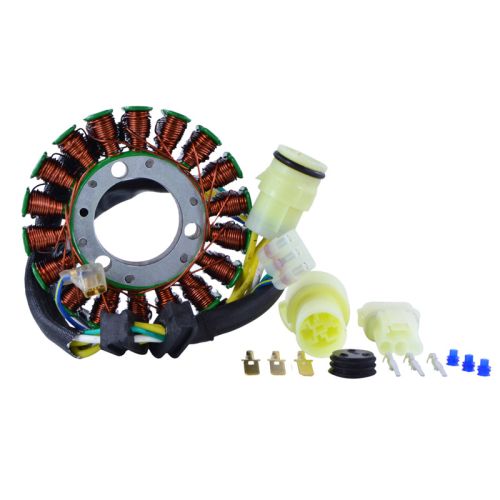

RMS Mitsuba 18-Pole Stator (Honda)

Brand new aftermarket stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included
• Rubber grommet included
• All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions :
Interior diameter : 35 mm
Exterior diameter : 92 mm
Thickness : 16 mm
Length of wires stator to grommet : 70 mm
Length of wires grommet to plug : 270 mm
Length of pickup coil's wire to grommet : 20 mm

Other specifications :
Number of wires : 6
Number of plugs : 2
Number of pins : 6

Wire to wire resistance :
Alternator : Between each Yellow= 0.4 ohms +-20%
Source : Blue/Yellow to Ground = 350 ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !

Fitment notice:

Two stators exists for the TRX 300 FW Fourtrax (12-Pole Denso & 18-Pole Mitsuba). Our stator replaces the 18-Pole Mitsuba stator. Please check your original stator before buying.
