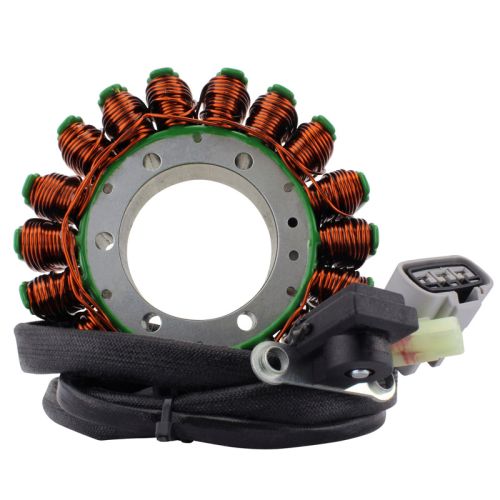

RMS Stator (Honda)

Brand new aftermarket Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connectors included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Dimensions:
Interior diameter: 54mm
Exterior diameter: 124mm
Thickness: 25mm
Length of wires clamp to connectors: 80mm
Length of wires pickup coil to grommet: 400 & 830mm
Length of pickup coil's wire to grommet: 30mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Yellow to Yellow = 0.6ohms +-20%
Pickup: Yellow to White/Yellow = 116ohms +-20%

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
