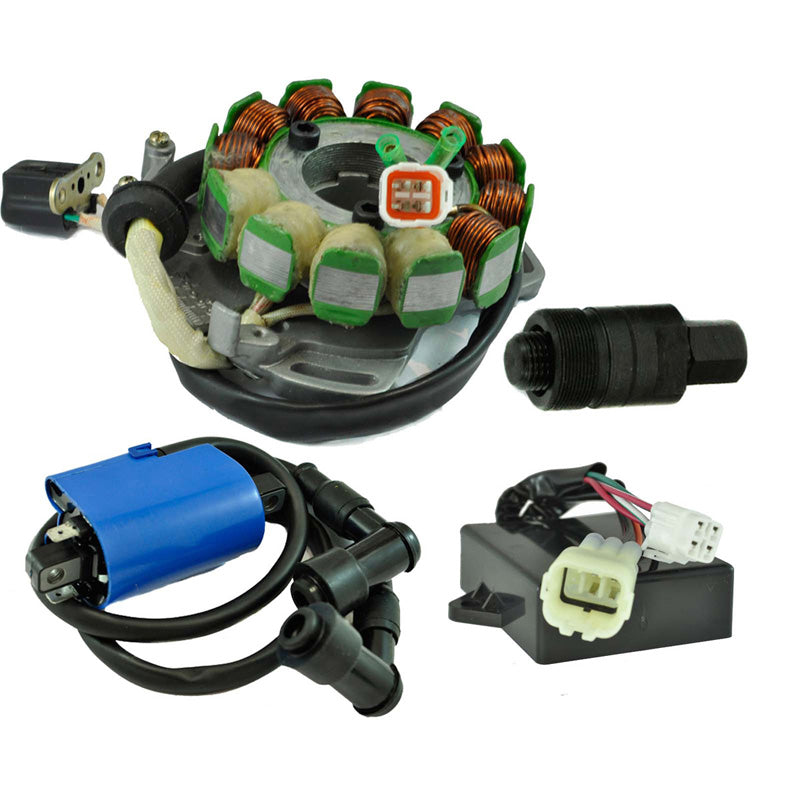

RMS Kit Stator 200 W + Regulator Rectifier + CDI Box + Ignition Coil + Flywheel Puller (Yamaha)

Brand New Kit HO Stator + Regulator Rectifier+ Peak RPM CDI Box + Flywheel Puller + External Ignition Coil

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included

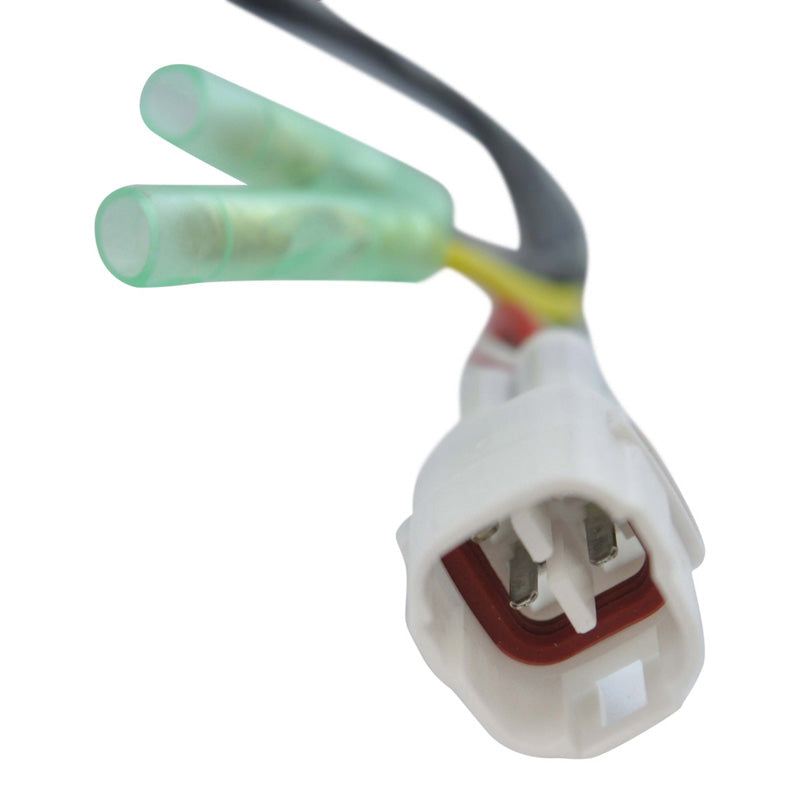

• Connector included
• Rubber grommet included
• Adjustable timing plate to advance and retard up to 10 degrees included

• 12 Volts regulator used by Baja winners
• For use with all standard halogen and quartz lights
• Precise voltage control, eliminates light burnout
• Reduce flickering and dimming
• Simple installation
• Works with all other OEM parts
• Rated at 225 watts

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

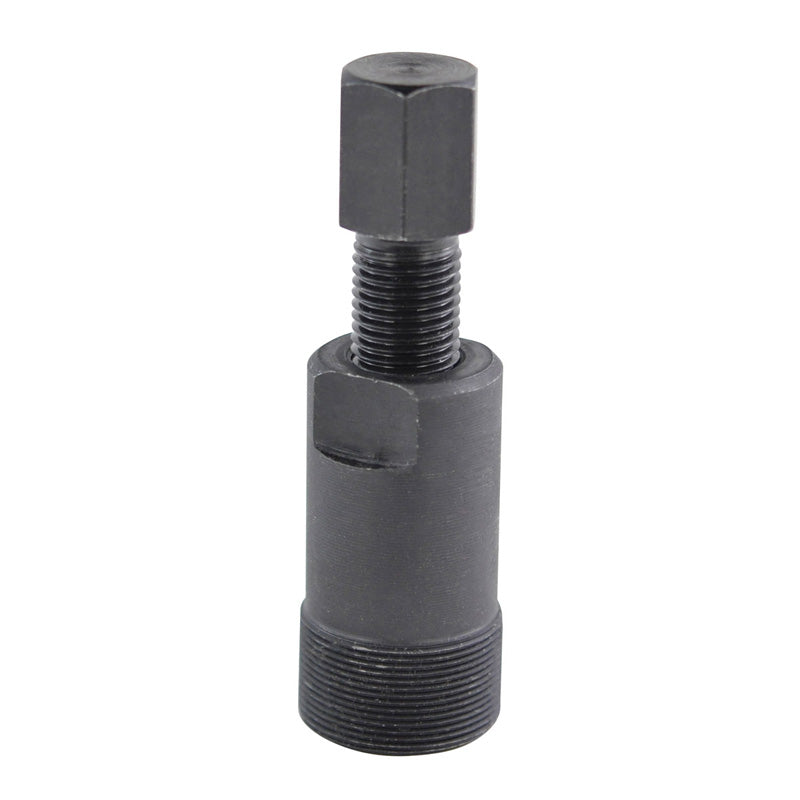

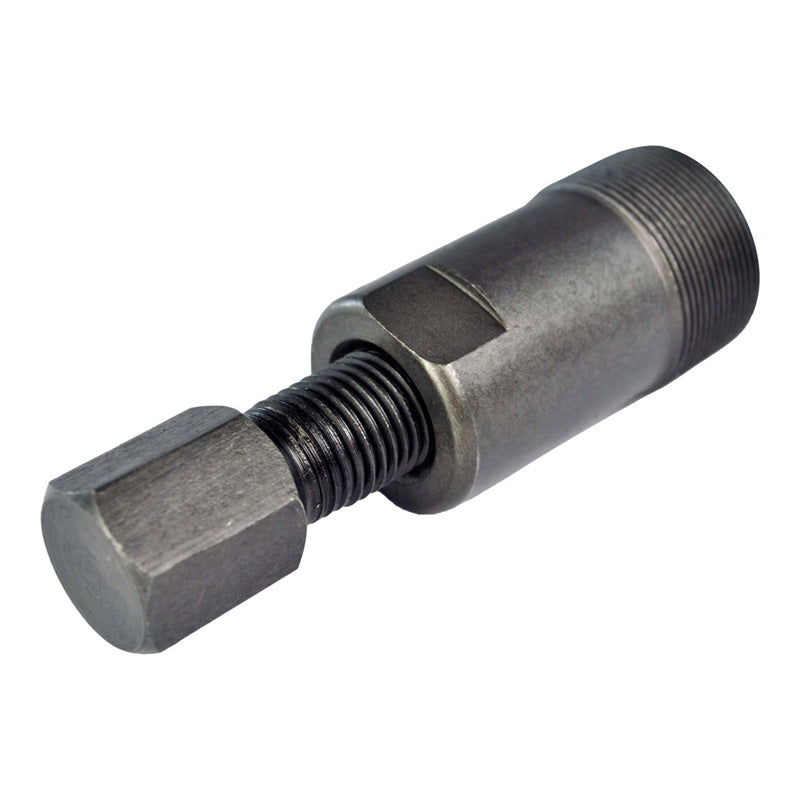

• 27 MM x 1.0 Left hand male

• Highest grade of lamination materials
• The Quality exceeds the OEM equipment

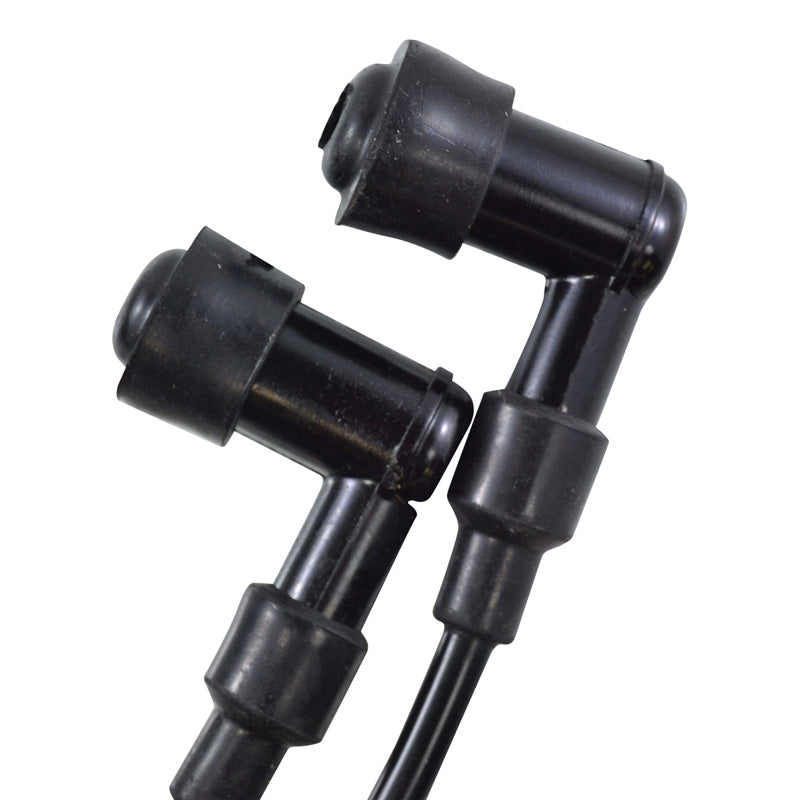

• Spark plug cap(s) included

If your old parts are defective, RM Stator offer replacements parts of high qualities at a fraction of the cost of genuine parts.

Specifications:

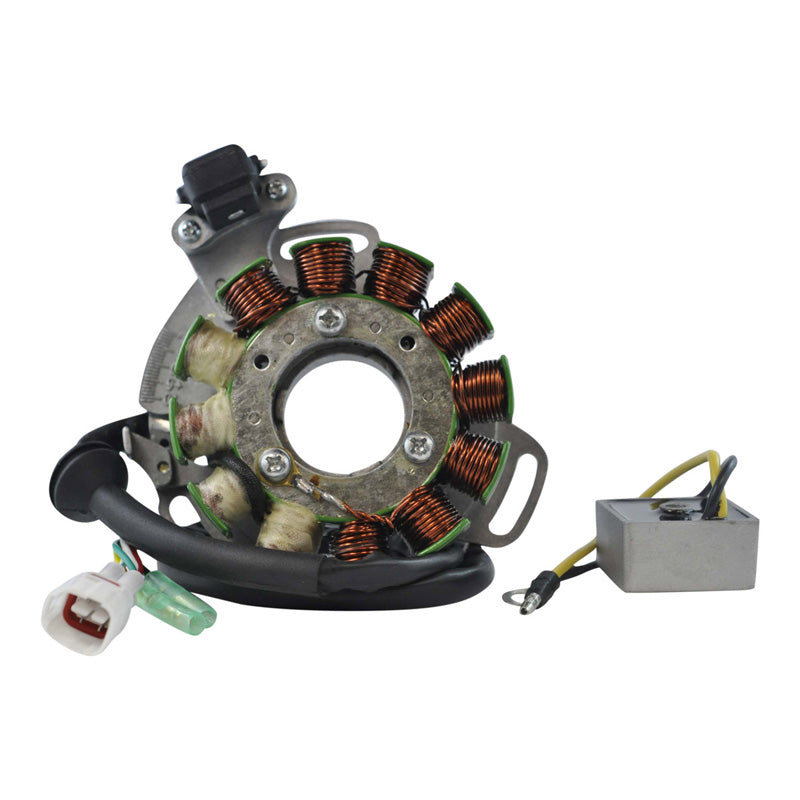

Stator:
Interior diameter : 34 mm
Exterior diameter : 103 mm
Thickness : 27 mm
Length of wires stator to grommet : 60 mm
Length of wires grommet to plug : 520 mm
Length of pickup coil's wire to grommet : 80 mm

Other specifications :
Number of wires : 6
Number of plugs : 3
Number of pins : 6

Wire to wire resistance :
Alternator : Yellow to Black = 0.4 ohms +/-20%
Pickup : White/Green to White/Red = 115 ohms +/-20%
Source : Green to Red = 12 ohms +/-20%

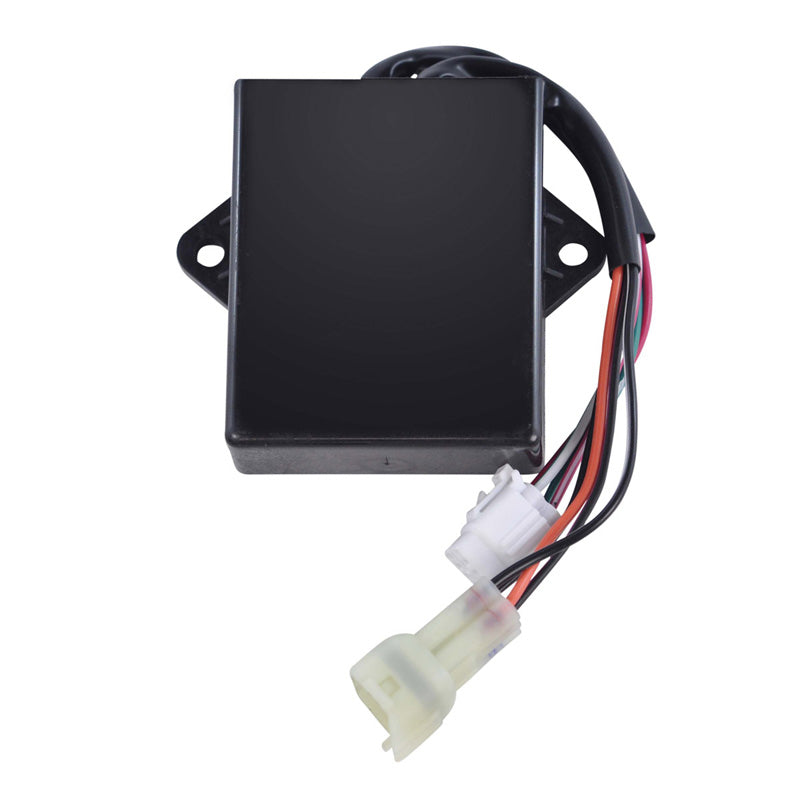

CDI Box
Height: 71 mm
Length: 87 mm
Width: 26 mm
Fixation holes center to center: 85 mm

Other specifications:

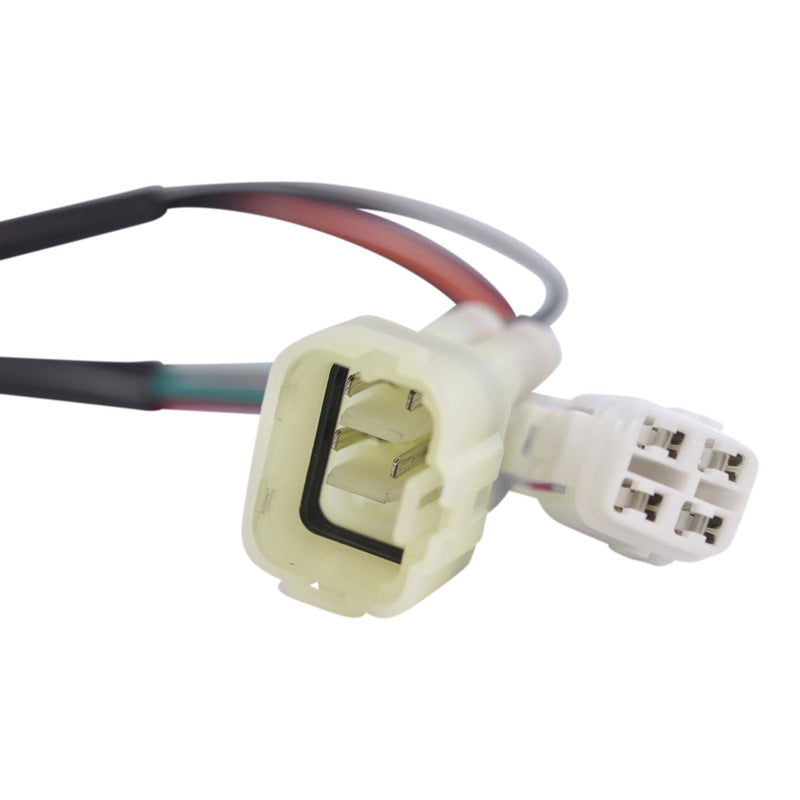

Number of plugs: 2
Number of pins: 8

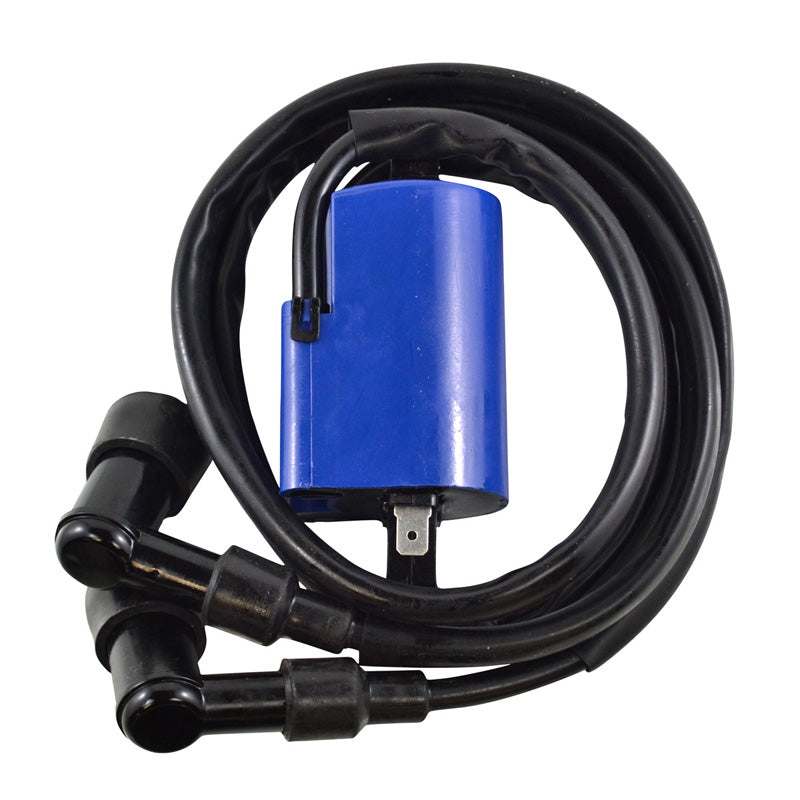

External Ignition Coil
Fixation holes center to center: 90 mm
