RMS Kit High Output Stator 300 W + Crankcase Cover Gasket (Yamaha)
Couldn't load pickup availability
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

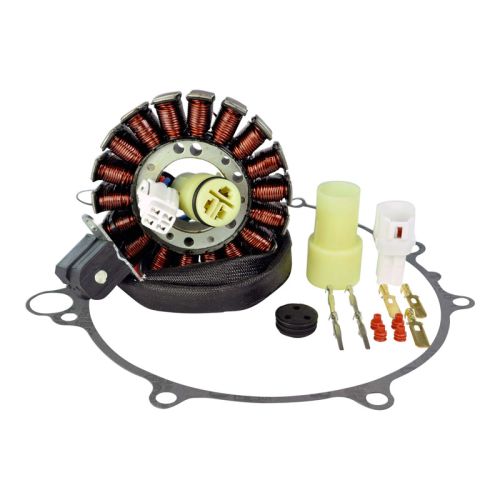

RMS Kit High Output Stator 300 W + Crankcase Cover Gasket (Yamaha)
Brand New Kit High Output Stator 300 W + Crankcase Cover Gasket
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All shipped products are tested
All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.
High Output Stator 300W:- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Pick up pulsar coil included
- Connector included
- Rubber grommet included
We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.
Specifications:
Dimensions Stator:
Interior diameter : 34 mm
Exterior diameter : 94 mm
Thickness : 13 mm
Length of wires stator to grommet : 180 mm
Length of wires grommet to plug : 220 mm
Length of pickup coil's wire to grommet : 100 mm
Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7
Wire to wire resistance :
Alternator : White between each White = 0.4 ohms +/-20%
Pickup : Blue to Green = 450 ohms +/-20%
Source : Black to Red = 0.1 ohms +/-20%
