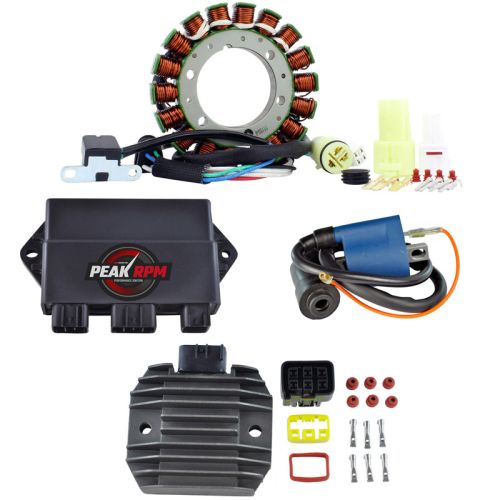

RMS Kit HO Stator + Regulator + CDI Box + External Ignition Coil (Yamaha)

Brand New aftermarket High Output Stator + Voltage Regulator Rectifier + PeakRPM CDI Box + External Ignition Coil Kit

• Direct replacement to your original unit
• All shipped products are tested

*All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

• Plug-and-play, direct fit, easy installation
• No assembly required
• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

• Our PeakRPM CDI Box provides the optimal output for your ride
• Higher grade of electronic components
• The Quality exceeds the OEM equipment

Our CDI may use a different wire color code than your original.
All the wires are installed in the correct order; please do not change any of the wiring configurations.
This CDI is designed as a direct plug-in replacement and should be used as such.

• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Spark plug cap(s) included

Specifications:

High Output Stator Dimensions
Interior diameter : 54 mm
Exterior diameter : 115 mm
Thickness : 14 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 500 mm
Length of pickup coil's wire to grommet : 150 mm

Other specifications :
Number of wires : 7
Number of plugs : 2
Number of pins : 7

Wire to wire resistance :
Alternator : White Between Each White = 0.4 ohms +/-20%
Pickup : Blue To Green = 450 ohms +/-20%
Position sensor : Red To White/Blue = 0.4 ohms +/-20%

Voltage Regulator rectifier Dimensions
Width : 89 mm
Length : 91 mm
Height: 27 mm
Fixation holes center to center : 65 mm

Other specifications :
Number of plugs : 1
Number of pins : 6

PeakRPM CDI Box Dimensions
Height: 27 mm
Length: 110 mm
Width: 92 mm
Fixation holes center to center: 120 mm

Other specifications:
Number of plugs: 3
Number of pins: 18

Please note that: The only real way to test your CDI box is to swap it out with another known good unit from the same year/make/model. Because of this, we recommend that you rule everything else out before replacing the CDI box.

External Ignition Coil Dimensions
Width: 50 mm
Length: 48 mm
Height: 35 mm
Wires length: 400 mm
Fixation holes center to center: 55 mm

Other specifications:
Number of plugs: 1
Number of pins: 1
Number of wires: 2
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: 15 V
Operation Temperature: -20? to 85?
