RMS Kit Stator + Gasket + Regulator (Suzuki)

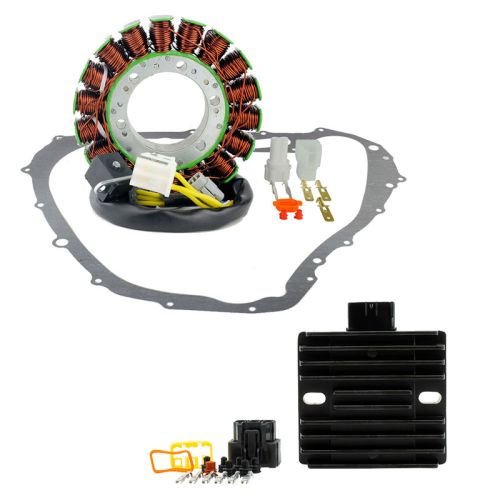

Brand new aftermarket Stator + Gasket + Voltage Regulator Rectifier Kit

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All products shipped are tested

We have even included the opposite connector (main harness side), as we know these are often melted / corroded / defective and a major cause for repetitive electrical issues.

All item pictures are accurate, if in doubt, do not hesitate and compare our item to your original part.

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier

• Higher grade of electric components
• Improved heat sink and charging capabilities
• The quality exceeds the OEM equipment

Specifications:

Stator Dimensions :
Interior diameter : 53 mm
Exterior diameter : 125 mm
Thickness : 20 mm
Length of wires stator to grommet : 155 mm
Length of wires grommet to plug : 435 mm & 475 mm
Length of pickup coil's wire to grommet : 175 mm

Other specifications :
Number of wires : 5
Number of plugs : 2
Number of pins : 5

Wire to wire resistance :
Alternator : Between each Yellow = 0.4 ohms +/-20%
Pickup : Blue to White = 208 ohms +/-20%

Regulator Dimensions :
Width : 93 mm
Length : 102 mm
Height : 27 mm
Fixation holes center to center : 72 mm

Other specifications :
Number of plugs : 1
Number of pins : 6

Warning:

Battery condition is extremely important. No voltage regulator, nor stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.

Fitment notice:

Please note that there are TWO possible regulators for the KingQuad LTA 700X 2006. Make sure you have the production number that matches your vehicle. All item pictures are accurate, if in doubt, do not hesitate and compare our item
