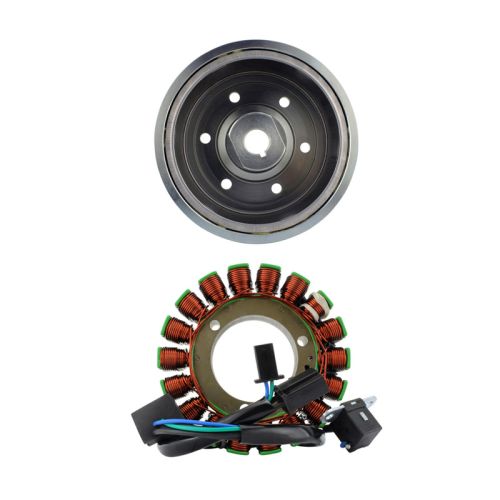

RMS Kit Stator + Flywheel (Suzuki)

Brand new aftermarket Stator + Flywheel

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included
• All products shipped are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Specifications:

Stator

Dimensions :
Interior diameter : 54 mm
Exterior diameter : 119 mm
Thickness : 25 mm
Length of wires stator to grommet: 160 mm
Length of wires grommet to plug: 430 mm
Length of pickup coil's wire to grommet: 150 mm

Other specifications:
Number of wires: 5
Number of plugs: 2
Number of pins: 5
Number of poles: 18
Wire to wire resistance:
Alternator: Black to Black = 0.6 ohms +-20%
Pickup: Blue to Green = 193 ohms +-20%

Flywheel

Dimensions:
Inner Diameter: 120 mm
Outer Diameter: 149 mm
Total Height: 65 mm
Inside Height: 46 mm
Center Housing Depth: 35 mm
Center Housing Widest: 35 mm
Center Housing Thickness: 26 mm

Warning:

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. ALWAYS START WITH A FULLY CHARGED BATTERY !
