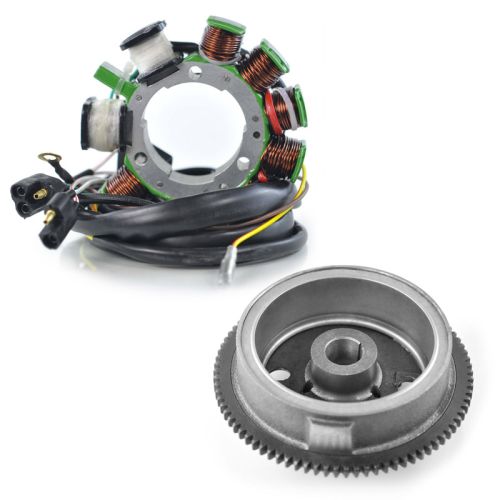

RMS Kit Stator + Flywheel (Polaris)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Two flywheels exist for Polaris 500cc models. This flywheel has the code FF97 stamped on its back. In doubt, please refer to specifications.
Introducing our newest heavy duty flywheel rotor for Polaris 500cc ATVs.
Anyone who rides or repairs the Polaris 500cc ATV's is probably familiar with the flywheel problems common to these models. Most of these bikes will have at least one flywheel failure in their lifetime so far. Low quality epoxy was used on OEM flywheels to secure the magnets to the rotor body. Over time and many heat cycles, the epoxy fails allowing the magnets to come loose and contact the stator, potentially causing catastrophic damage.
For years, service shops & dealerships have offered low cost repairs for Polaris flywheels to save the 400$+ OEM replacement. This sounds like a great idea at first, but there are some serious issues!
The common repair is using JB Weld© Marine Blue Epoxy to reattach the loose original magnets, or to install new ones. Epoxy fixes do repair flywheels in short term, if they are done correctly. However, this kind of repair can easily cause immediate problems, and impact long term reliability of your ATV.
A Heavy Duty Flywheel to the rescue!
New RMSTATOR&trade heavy-duty flywheel rotor for Polaris ATVs is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.
Features
-
Built to OEM size
Fits precisely in your ride: install it and forget it. -
Improved epoxy
Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment. -
High grade steel capping
Prevents harsh additives in motor oil from degrading the epoxy attaching the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator. -
Precise balancing
Eliminates crankshaft vibrations for longer engine longevity -
Shop with confidence
All products are tested.
Specifications:
Stator:
Dimensions:
Interior diameter: 51 mm
Exterior diameter: 114 mm
Thickness: 20 mm
Other specifications:
Number of wires: 9
Number of plugs: 7
Number of pins: 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Flywheel:
Dimensions:
Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm
