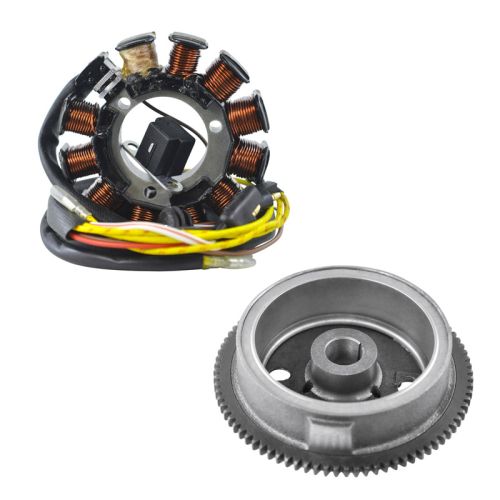

RMS Kit Stator + Flywheel (Polaris)

Brand New Stator + Flywheel Kit

Stator:

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

*Polaris split the year on some applications; This part only has one source coil dove-tailed into the stack.

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested
• All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part

Specifications:

Stator:

Dimensions :
Interior diameter : 48 mm
Exterior diameter : 115 mm
Thickness : 20 mm
Length of wires stator to grommet : 135 mm
Length of wires grommet to plug : 1200 mm
Length of pickup coil's wire to grommet : 120 mm

Other specifications :
Number of wires : 7
Number of plugs : 6
Number of pins : 8

Wire to wire resistance :
Alternator : = 0.4 ohms +/-20%
Pickup : = 130 ohms +/-20%
Source : = 20 ohms +/-20%

Flywheel:

Dimensions:
Exterior Diameter: 141 mm
Interior Diameter: 117 mm
Interior Diameter Center Housing: 25 mm
Exterior Diameter Center Housing: 23 mm
