RMS 900W Magneto Flywheel Rotor + Gasket + Puller (Polaris)

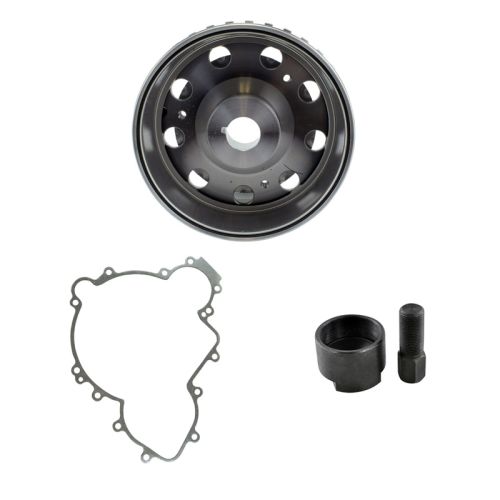

Brand new Magneto Flywheel Rotor + Gasket + Flywheel Puller

• 50 mm x 1.5 Left Hand Female
• All products are tested

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Specifications:

Dimensions:

Flywheel:
Exterior Diameter: 140.6 mm
Interior Diameter: 127.8 mm
Interior Diameter Center Housing: 22.4 mm
Exterior Diameter Center Housing: 50 mm

Puller:
Length: 40.6 mm
Exterior Diameter: 57 mm
Interior Diameter: 48.3 mm
Exterior Diameter Center Housing: 20 mm

Warning:

Before attempting to start your Polaris adjusting the air gap is necessary. Rotate the flywheel so the raised node is lined up with the pick up/pulser coil and adjust as close as possible but no less than 0.010".

This flywheel should only be installed on a 900W dual output system. You should not install this flywheel on a 660W single output charging system. Installing this flywheel on a 600W single output system will result in a voltage regulator failure.
