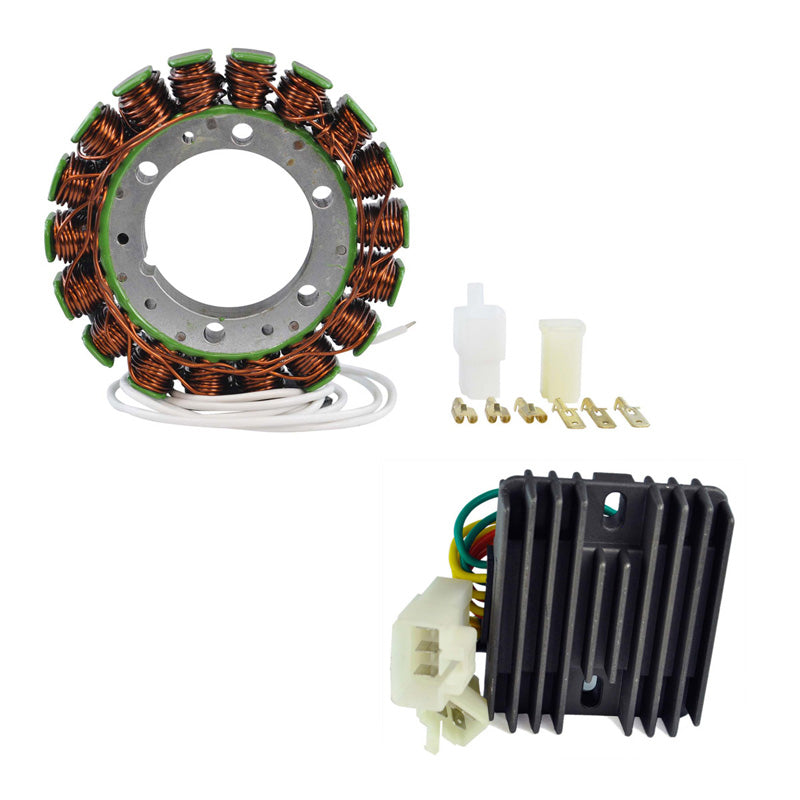

RMS Kit Stator + Voltage Regulator Rectifier (Honda)

Brand new stator and voltage regulator rectifier kit

• All product shipped are tested

*All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

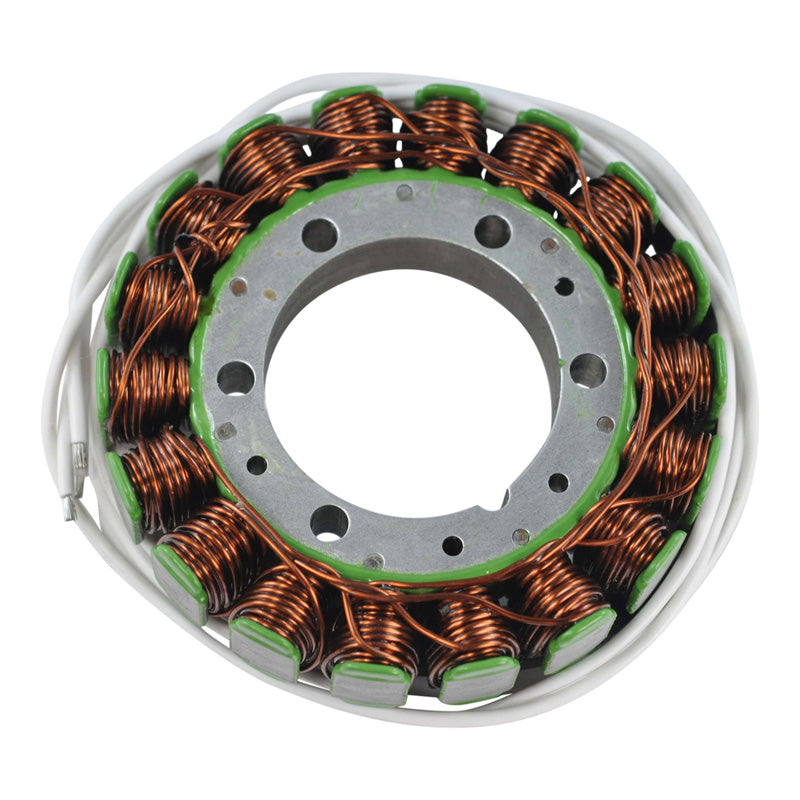

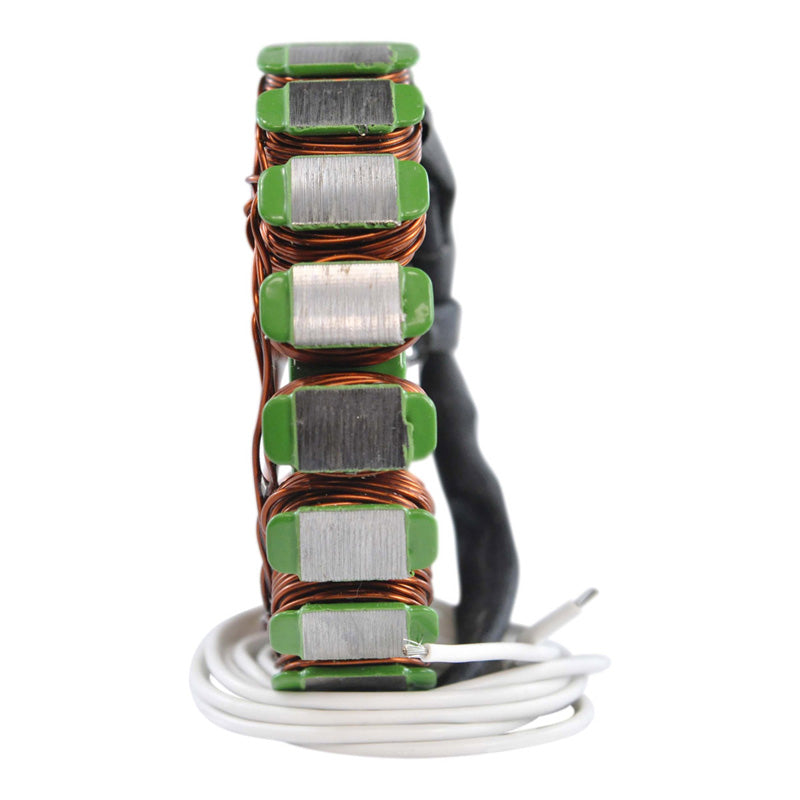

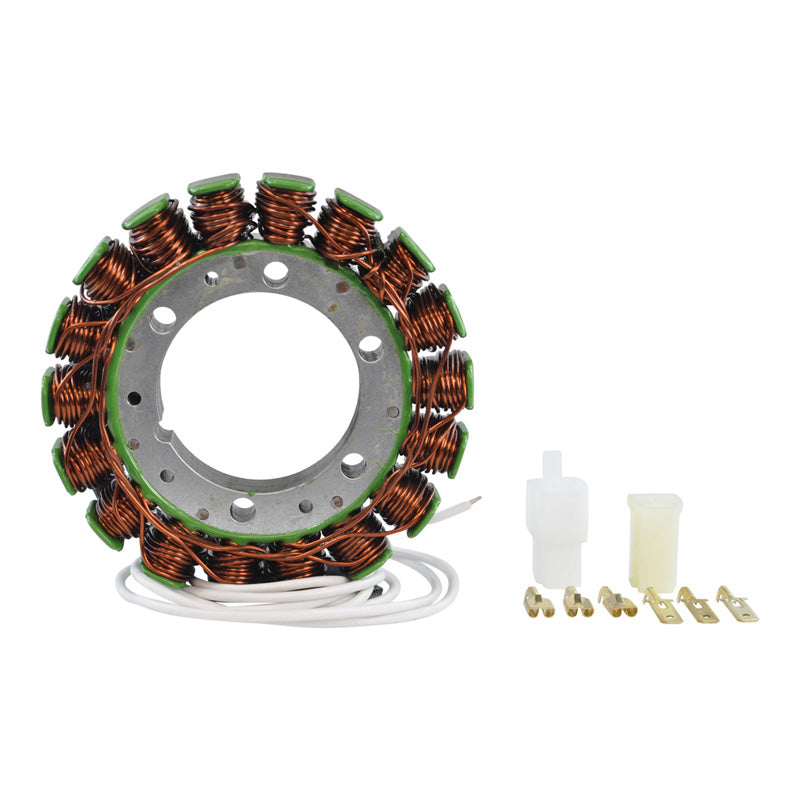

Stator

• You must re-install your original connector and grommet (see picture).
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.

We have even included the opposite connector (main harness side) as we know these are often melted/corroded/defective and a major cause for repetitive electrical issues.

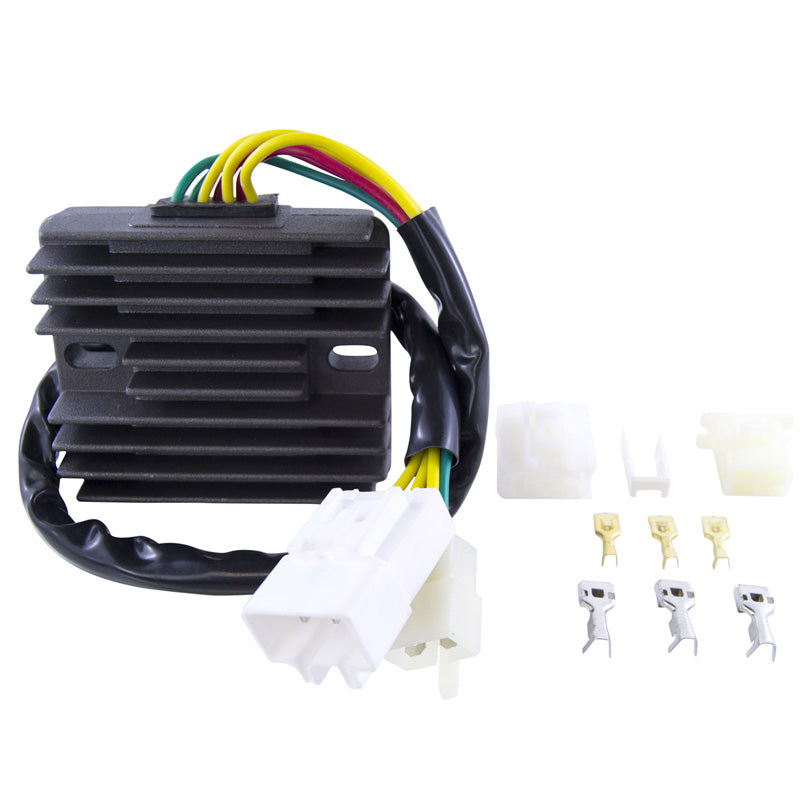

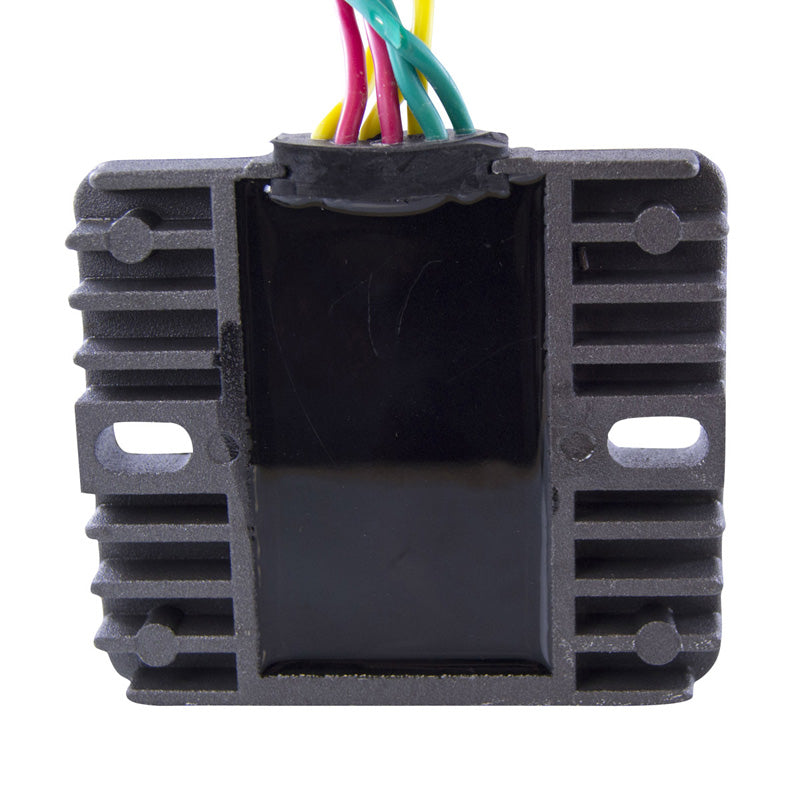

Voltage regulator rectifier

• Direct replacement to your original unit.
• Plug-and-play, direct fit, easy installation.
• No assembly required

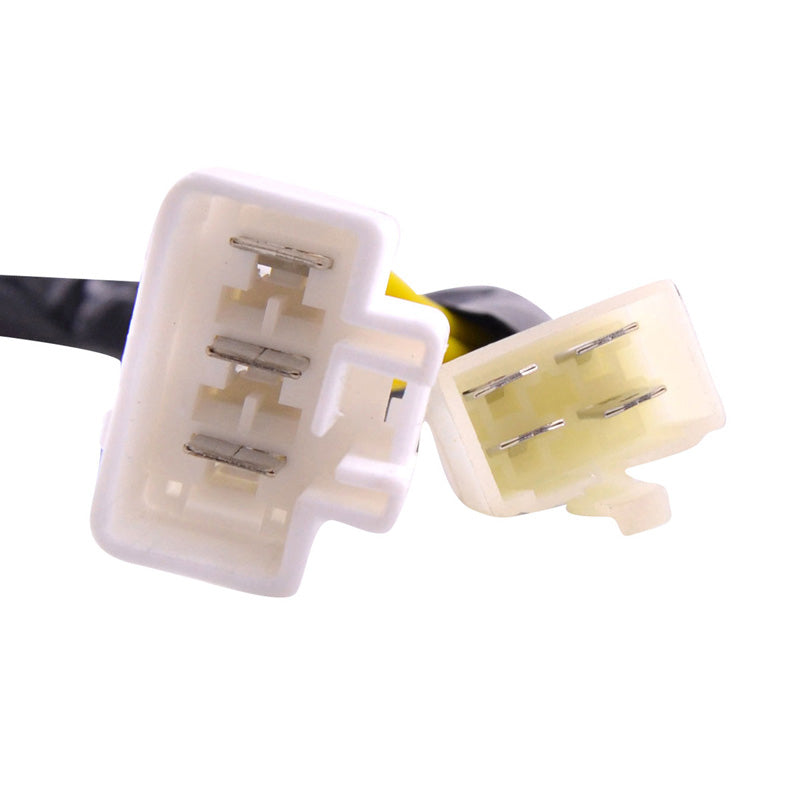

• Connector included
• The Quality exceeds the OEM equipment

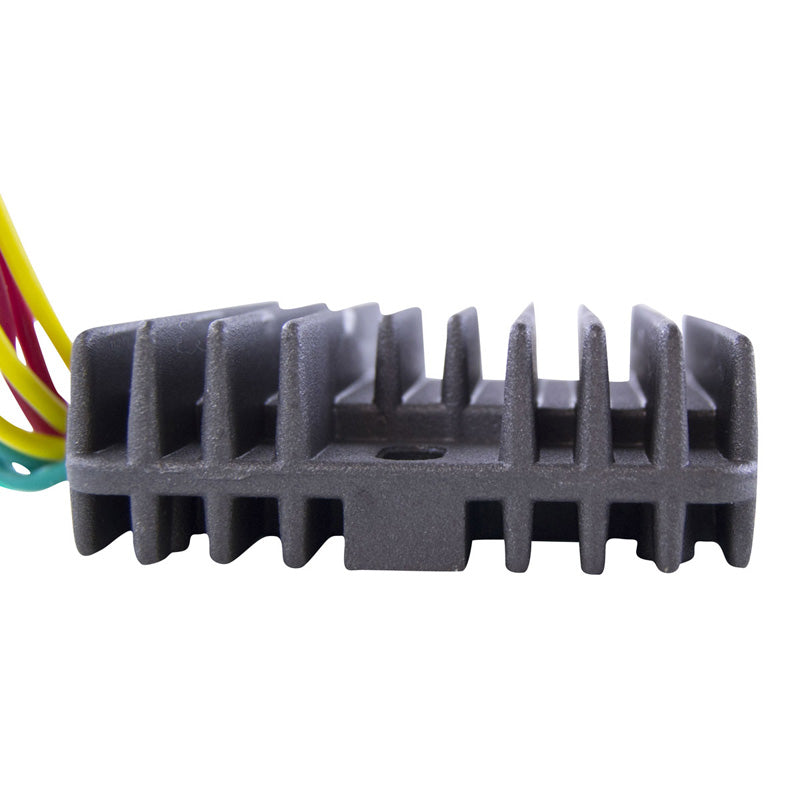

• Improved heat sink and charging capabilities
• Higher grade of electric components.

Specifications:

Stator
Dimensions :
Interior diameter : 53mm
Exterior diameter : 114mm
Thickness : 16mm

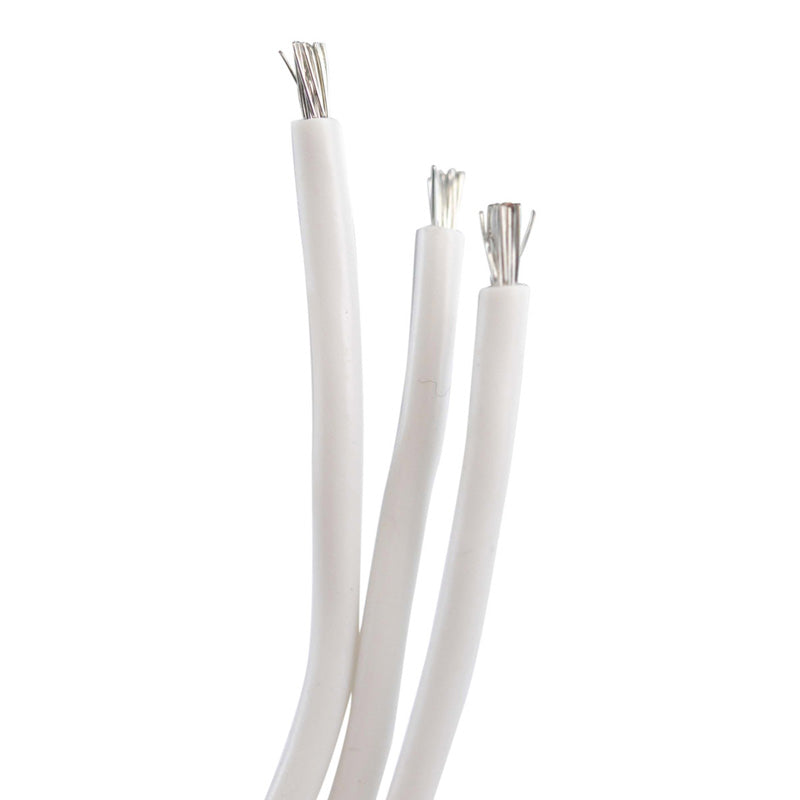

Length of wires stator to terminals : 1220mm

Other specifications :
Number of wires : 3
Number of plugs : 0
Number of pins : 3

Wire to wire resistance :
Alternator : White between each White = 0.2 ohms +/-20%

Voltage regulator rectifier
Dimensions:
Width:103mm
Length: 80mm
Height: 33mm
Wires length: 300mm
Fixation holes center to center: 70mm

Other specifications:
Number of plugs: 2
Number of pins: 7
Number of wires: 7
