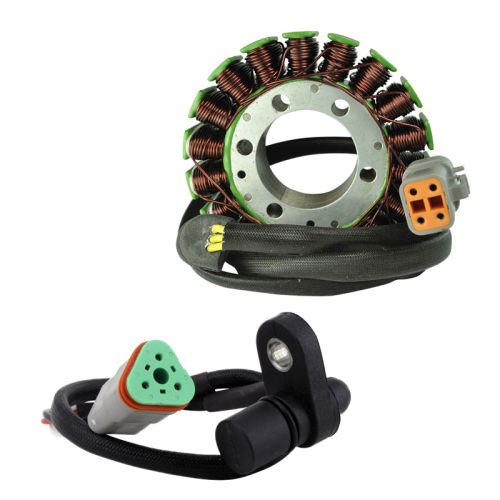

RMS Kit Stator + Speed Sensor (Can-AM)
Couldn't load pickup availability
Fast Shipping from Canadian Warehouses
Fast Shipping from Canadian Warehouses
📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays
Brand new aftermarket Stator + Speed Sensor Kit
- Direct replacement to your original unit
- Plug-and-play, direct fit, easy installation
- All product shipped are tested
Brand new aftermarket stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connector included
- Rubber grommet included
Specifications:
Stator's Dimensions:
Interior diameter: 41 mm
Exterior diameter: 104 mm
Thickness: 30 mm
Length of wires stator to grommet : 140 mm
Length of wires grommet to plug : 850 mm
Other specifications:
Number of wires: 3
Number of plugs: 1
Number of terminals: 3
Wire to wire resistance:
Alternator: Yellow between each Yellow = 0.4 ohms +/-20%
Speed sensor's Dimensions:
Width: 19 mm
Length: 50 mm
Height: 37 mm
Wires length: 350 mm
Other specifications:
Number of plugs: 1
Number of terminals: 3
Warning:
Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
Fitment notice:
Please note: There are two different stators that fits a CAN-AM Outlander 800 cc 2015 and Renegade 1000 cc 2015. See specification tab for details. PLEASE VALIDATE THESE MEASUREMENTS WITH YOUR OLD STATOR BEFORE BUYING THIS PRODUCT
