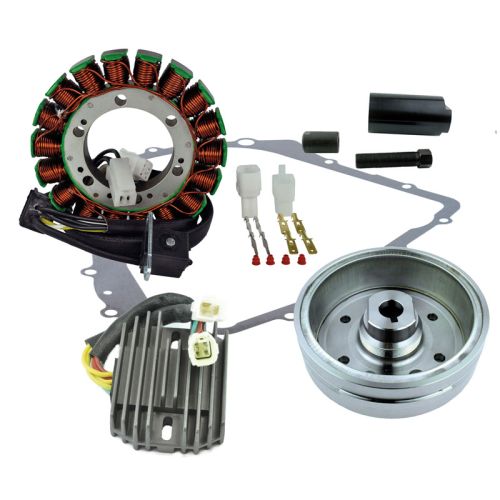

RMS Kit Improved Flywheel + Puller + Stator + Regulator Rectifier + Crankcase Cover Gasket (Arctic Cat)

PLEASE NOTE: This kit will not fit manual transmissions, but only the automatic models.

Flywheel Puller:

• 50 MM x 1.5 Right Hand Female
• Brand new flywheel puller

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Voltage Regulator Rectifier

• Improved heat sink and charging capabilities
• Higher grade of electric components

Specifications:

Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Voltage Regulator Rectifier:
Dimensions :
Width : 80mm
Length : 114mm
Height: 30mm
Fixation holes center to center : 80mm
Wires length: 250mm

Other specifications :
Number of plugs : 2
Number of pins : 7
Minimum Charging Voltage: 14.5V +/- 0.5V
Maximum Charging Current: 25A-35A/300W-500W
Open Circuit Voltage: <15V
15V> Operation Temperature: -20? to 85? Flywheel

Dimensions:

Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
