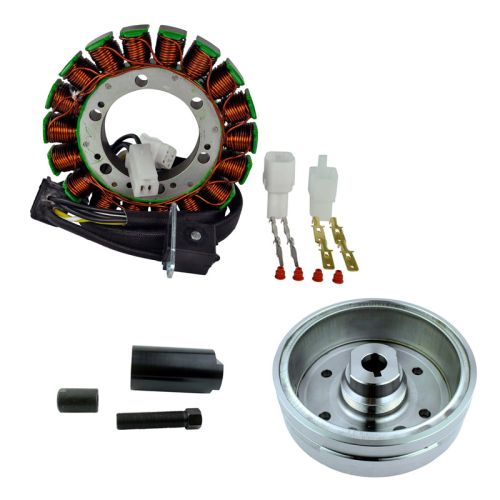

RMS Kit Improved Flywheel + Flywheel Puller + Stator

Brand new Kit Magneto Flywheel + Flywheel Puller + Stator

• Direct replacement to your original unit
• Plug-and-play, direct fit, easy installation
• All shipped products are tested

Magneto flywheel rotor
RMSTATOR is offering a new replacement flywheel. This flywheel can be used as a direct replacement to the OEM.

Flywheel Puller

• 50 MM x 1.5 Right Hand Female
• Brand new flywheel puller

Stator

• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius
• Pick up pulsar coil included
• Connector included
• Rubber grommet included

Specifications:

Stator:
Dimensions:
Interior diameter: 53 mm
Exterior diameter: 119 mm
Thickness: 15 mm

Other specifications:
Number of wires: 7
Number of plugs: 4
Number of pins: 7

Wire to wire resistance:
Alternator : White Between each White = 0.4 ohms+/-20%
Alternator : White to Ground = O.L. ON DISPLAY
Pick up Coil : Blue to green = 200 ohms+/- 20%
Position Sensor :White to yellow = 0.2 ohms+/- 20%

Flywheel

Dimensions :
Exterior Diameter: 143 mm
Interior Diameter: 120 mm
Interior Diameter Center Housing: 18 mm
Exterior Diameter Center Housing: 42 mm
Thickness (exterior): 12 mm
Thickness (interior): 13 mm
