Malossi Front Suspension RS24 275mm
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

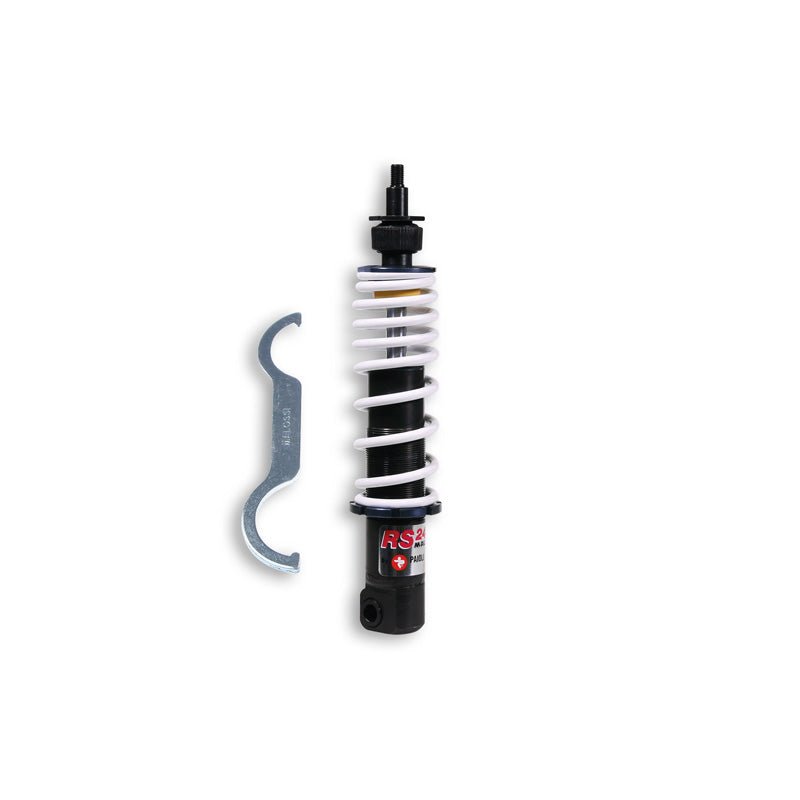

SHOCK ABSORBER RS24
It is a regenerable oleo gear with bi-lamination piston and baffle plate compensation.
- Ø 36 mm piston with two independent lamellar packs, one in extension and one in compression; lamellar system made of harmonic steel with leaf spring configuration
- LUBRIFLON-PTFE B70 piston runner guide (bronze-loaded modified compound)
- Sliding on GUIDA DU guide bushing (a composite material obtained by sintering a layer of spheroidal bronze on a mild steel strap properly treated, followed by impregnation and coating with a mixture of PTFE + PB)
- Polyester resin SEALTHANE grade 9345 scraper ring
- 38NCD4 alloy steel shock absorber rod ø 14 mm, hardened and tempered with hard chrome deposit thickness 25/30 microns (superficial hardness of the untreated shaft HRC 55/60)
|
Code |
|
Inter-axis mm |
Stroke mm |
|
46 7588 |
rear |
267 |
42 |
|
46 7900 |
front |
205 |
60 |
|
46 8308 |
rear |
294 |
65 |
|
46 8611 |
rear |
290 |
60 |
|
4611641 |
rear |
410 |
85 |
|
4612962 |
rear |
290 |
54 |
|
4613055 |
rear |
307 |
60 |
|
4613598 |
rear |
316 |
45 |
|
4614615 |
front |
257 |
90 |
|
4615218 |
rear |
343 |
86 |
|
4617065 |
rear |
360 |
70 |
|
4617076 |
front |
275 |
58 |
|
4617558 |
front |
227 |
75 |
Products reserved exclusively for competitions in places intended for them in accordance with the provisions of the competent sports authorities. We Disclaim all liability for improper use
