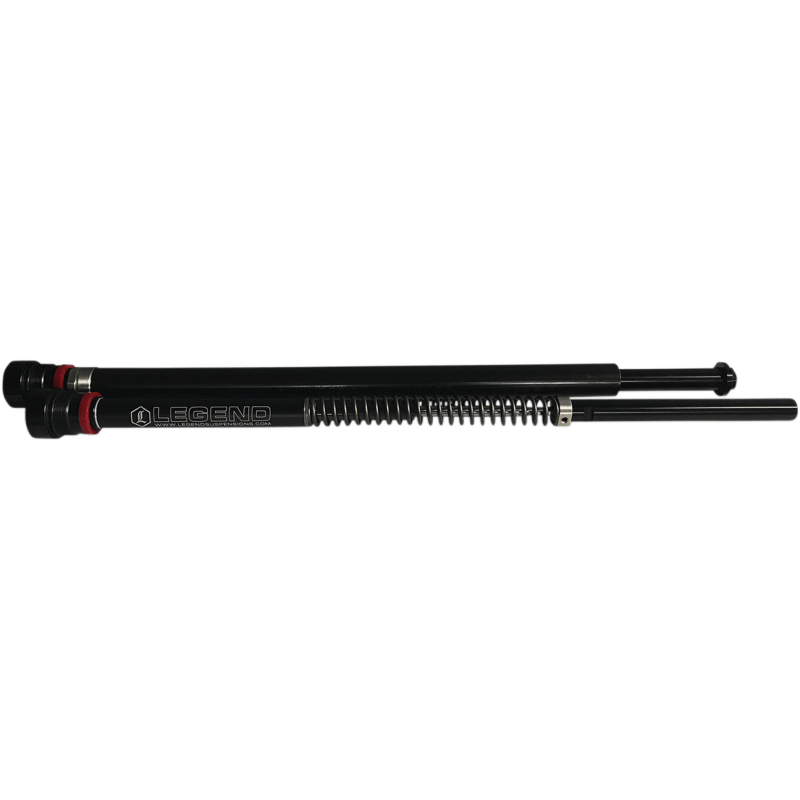

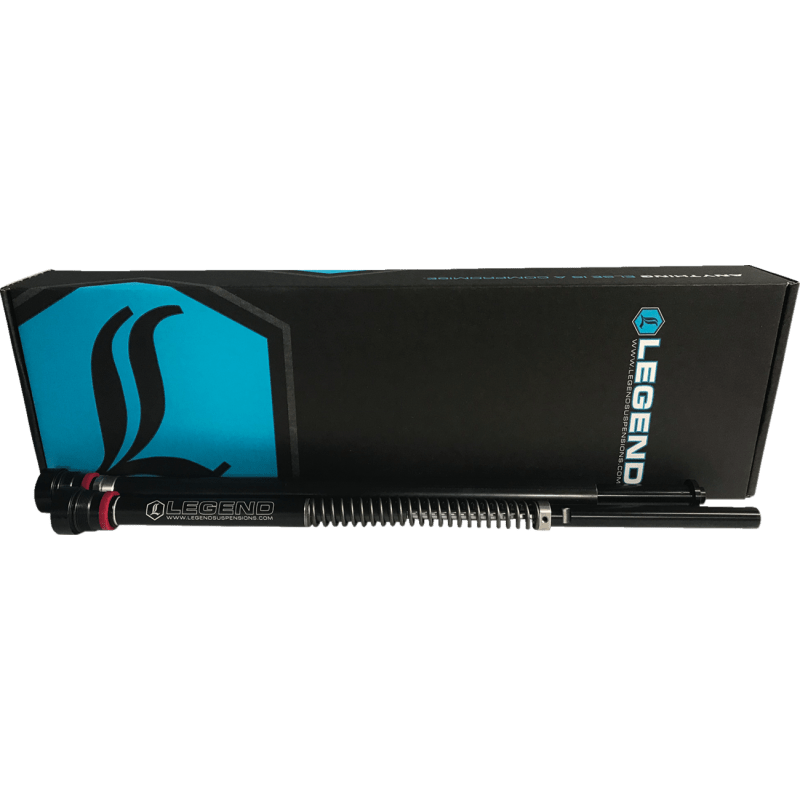

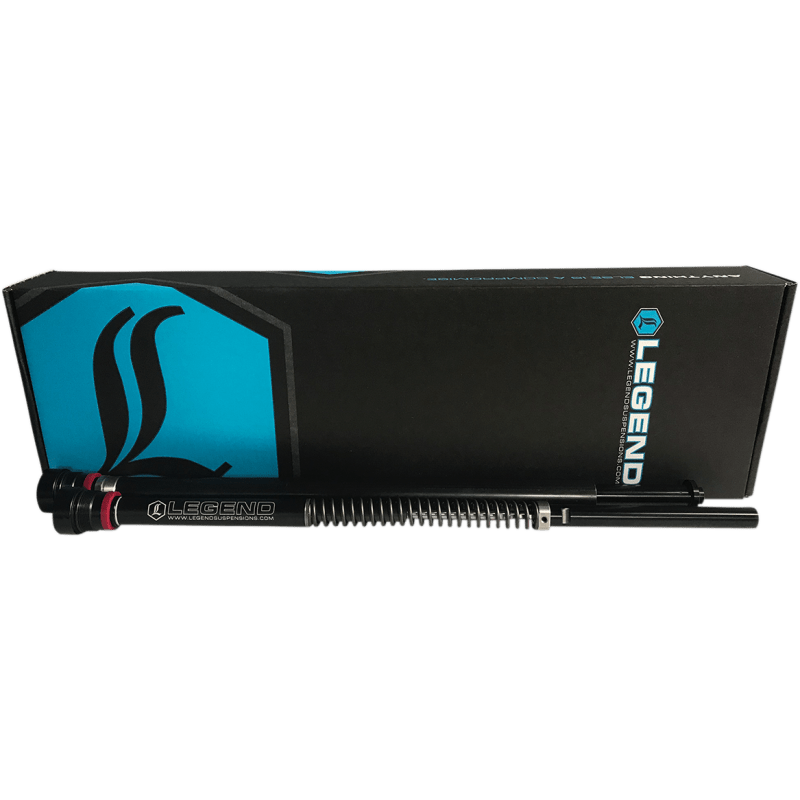

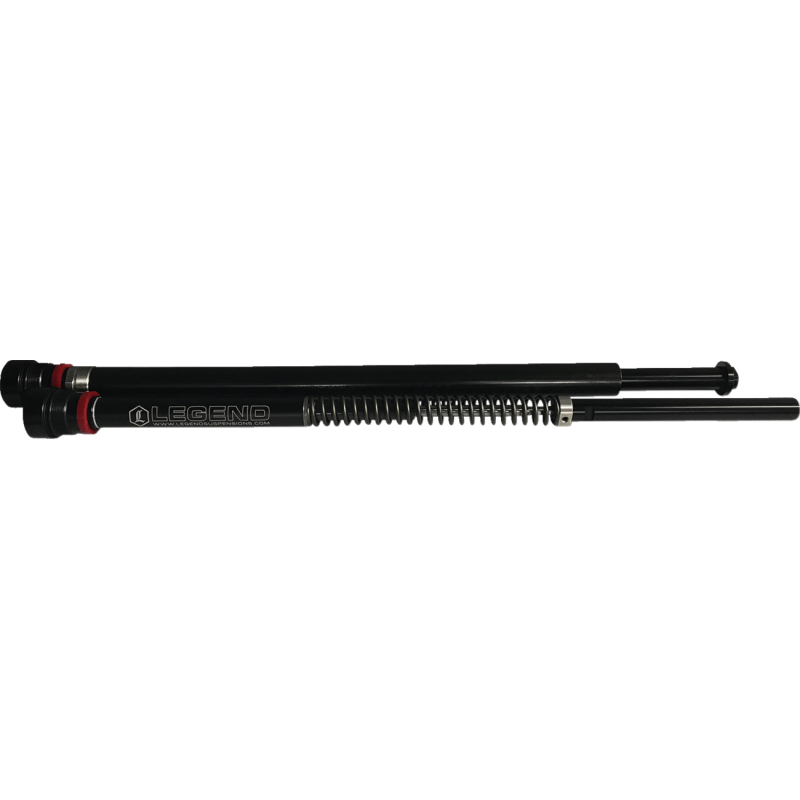

Legends 18-19 Fxfb Fork SPR/Cart 43 mm Inverted

Replaces the asymmetrical stock internals with a highperformance twin cartridge set (despite different mounting requirements)

Drop-in cartridge that installs easily in a few simple steps

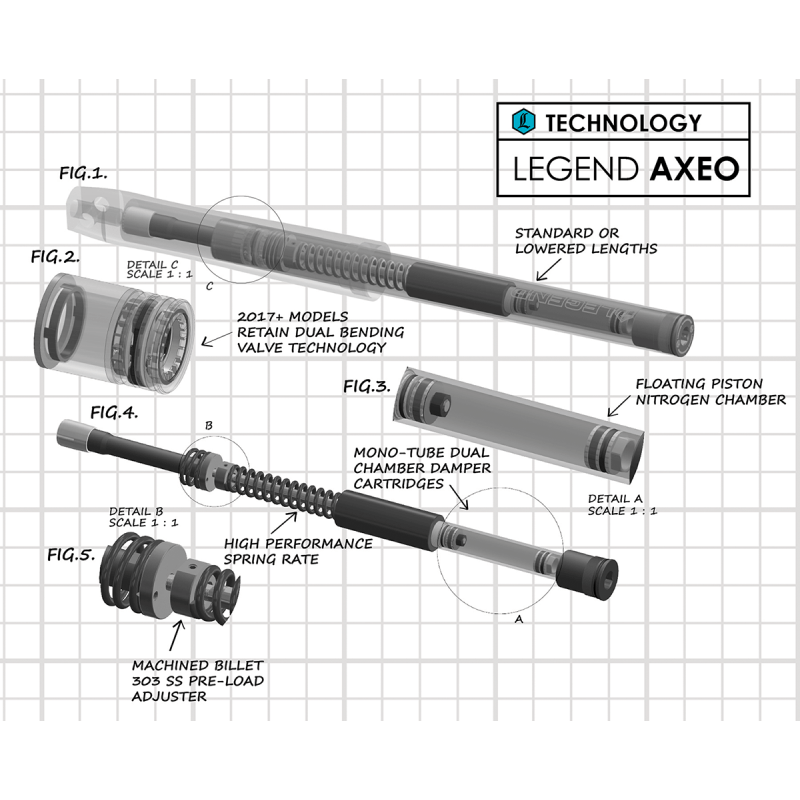

Includes two mono-tube, dual-chambered, suspension fluid-filled damper cartridges

Nitrogen chamber with internal floating piston

Sealed with a high-pressure core Schrader valve specific to nitrogen

Damper piston and deflective disc shim stack

Performance-rated springs with internal linear spring guide and top-out springs

Machined 303 stainless steel threaded pre-load adjuster

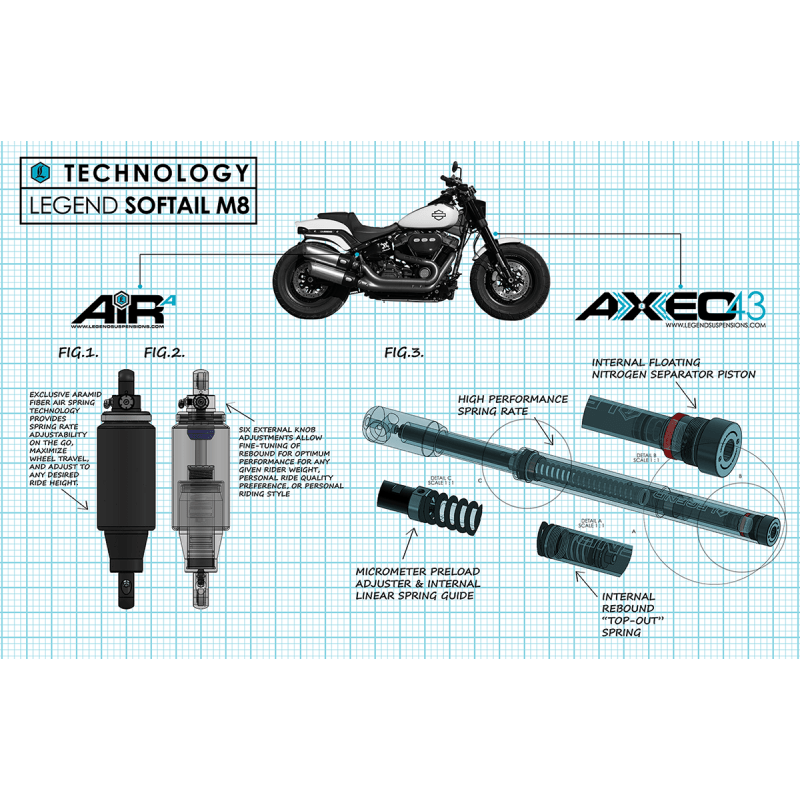

Micrometer preload adjuster and internal linear spring guide is designed for and unique to the Legend AXEO43 system

Increased pre-load range allows fine tuning for various riding styles and weights

Internal rebound top-out spring

Hydraulic bumper with polyurethane bump stop

Ride quality is smooth and controlled

Improves stability, cornering and traction

Eliminates front-end dive during aggressive braking and maneuvering

Firm feel for high-speed sweeping turns

Eliminates bottoming out on large bumps or potholes

Reduces dragging floorboards and pegs

Designed for optimum performance with Legend rear suspension system

Made by hand in Sturgis, SD USA

Lifetime Warranty
