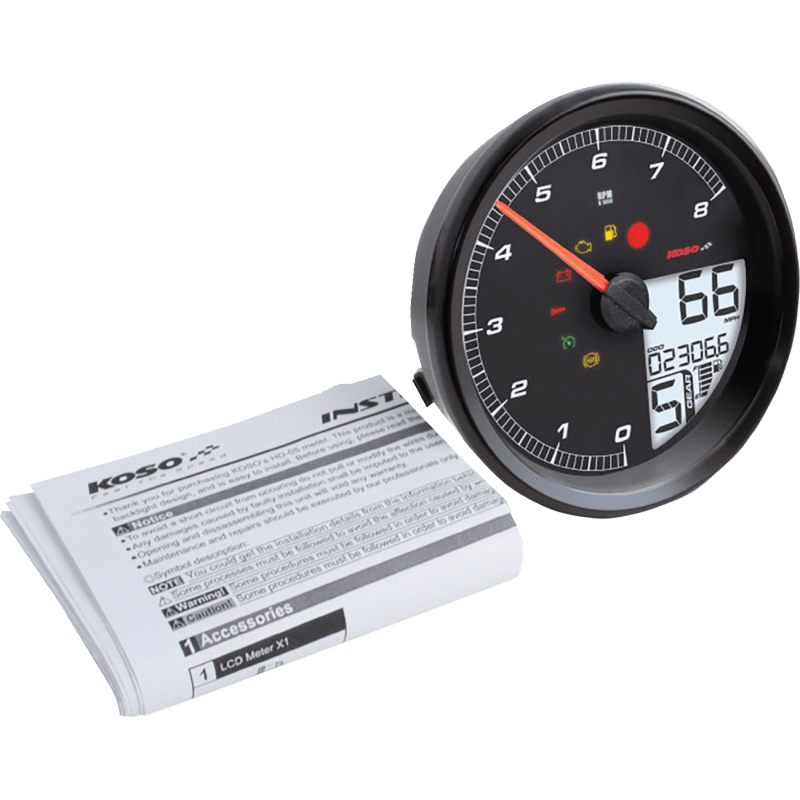

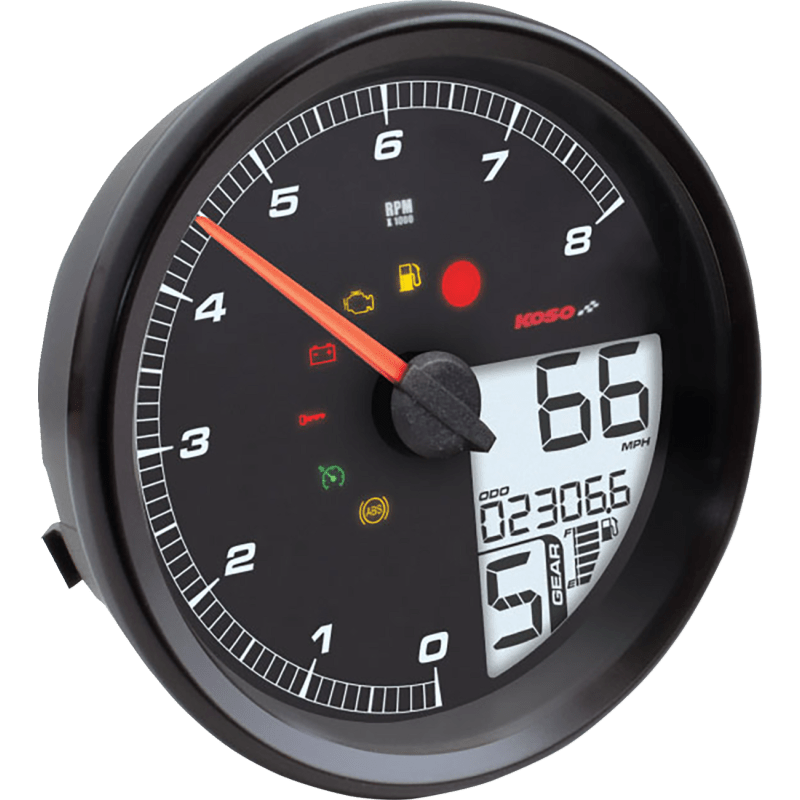

KOSO NORTH AMERICA HD-05 MULTIFUNCTION METER DYNA MULTI FIT BLACK BEZEL

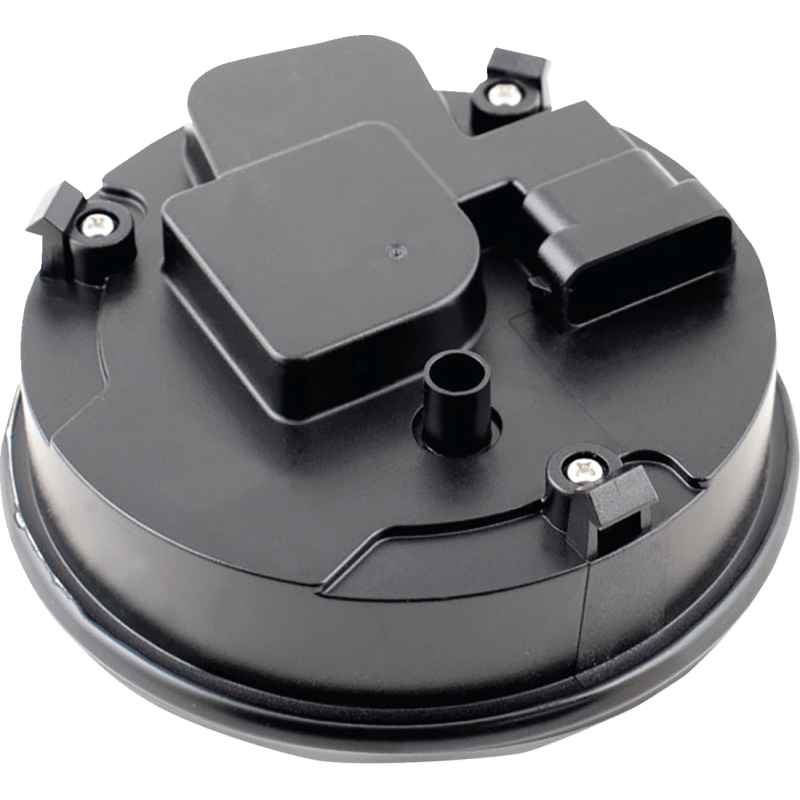

The all-new 100% plug and play HD-05 series for 4 ½” gas tank mounted Harley-Davidson® models features a tach and speedo combo with a programmable shift light with gear indicator. This gauge also features vital readings such as engine temperature and battery voltage along with average fuel economy and a complete system of indicators to monitor your bikes vital signs. This plug and play kit fits directly into the stock harness and works directly in relation with your bikes CANBUS system.
Specifications
(R= Range U=Unit)
-
Tachometer
R: 0 ~ 8,000 RPM -
RPM Shift‑light
R: 2,000 ~ 8,000 RPM
U: 100 RPM Warning lights on > value -
Maximum RPM mode
R: Light on (F‑OFF), Flash (F‑ON) -
Speedometer
R: 0 ~ 225 MPH (0 ~ 360 km/h)
U: 1 MPH or km/h -
Odometer
R: 0 ~ 999,999 miles (km) U: 1 mile (km) -
Tripmeter A/B
R: 0 ~ 9,999.9 miles (km)
U: 0.1 mile (km) -
Tire circumference
R: 50 ~ 210% | U: 1% -
Engine temperature
R: -40 ~ 419 °F (-40 ~ 215 °C)
U: 0.1 °F or °C (alternative) -
Fuel level
R: 6 levels | U: 1 level = 16.6 % -
Fuel tank volume
OFF / 1 ~ 9.9 US gallons -
Average fuel consumption
OFF / MPG (US spec)
MPG (UK spec)
L/ 100 km / km/L
-
Mileage maintenance
R: Off / 300 ~ 10,000 miles
(500 ~ 16,000 km) | U : 100 miles (km) -
Remaining mileage
R: 0 ~ 9,999 miles
LO RNG displayed when< 10 miles
(16 km) -
Clock
R: 12 H or 24 H format -
Volt meter
R: DC 8 ~ 18 V -
Backlight brightness
R: 1/5 (darkest) ~ 5/5 (brightest) -

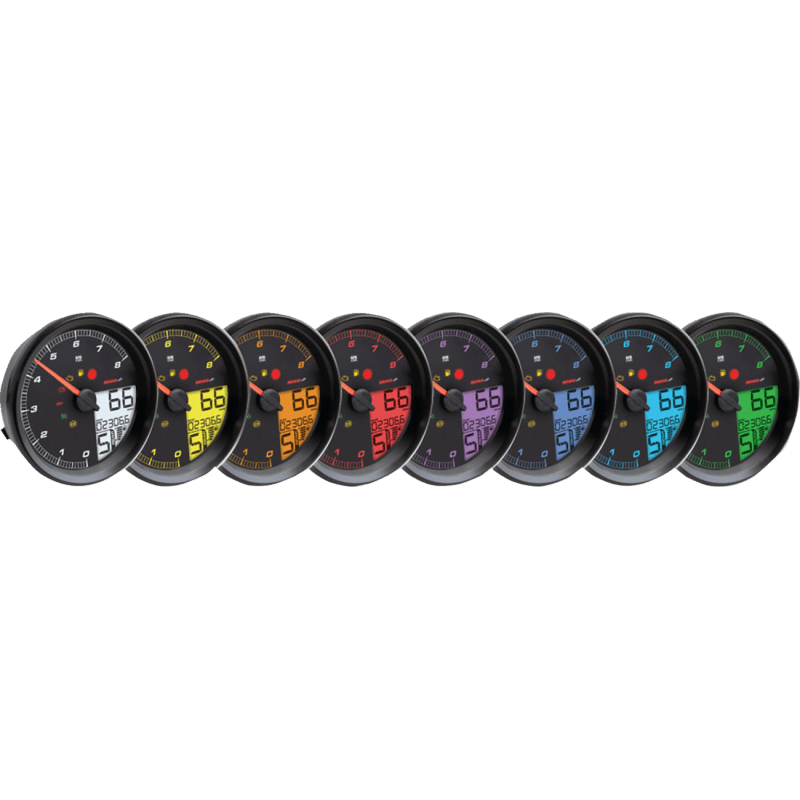

Backlight colors
White / light Blue / Blue / Purple / Red / Orange / Yellow / Green -
Indicator lights
Check engine / RPM shift light /
Low fuel / Volt/ Anti-theft / Cruise / ABS -
Gear indicator
OFF, N, 1, 2, 3, 4, 5, 6 -
Effective temperature range
14 ~ 140 °F (‑10 ~ 60 °C) -
Effective voltage

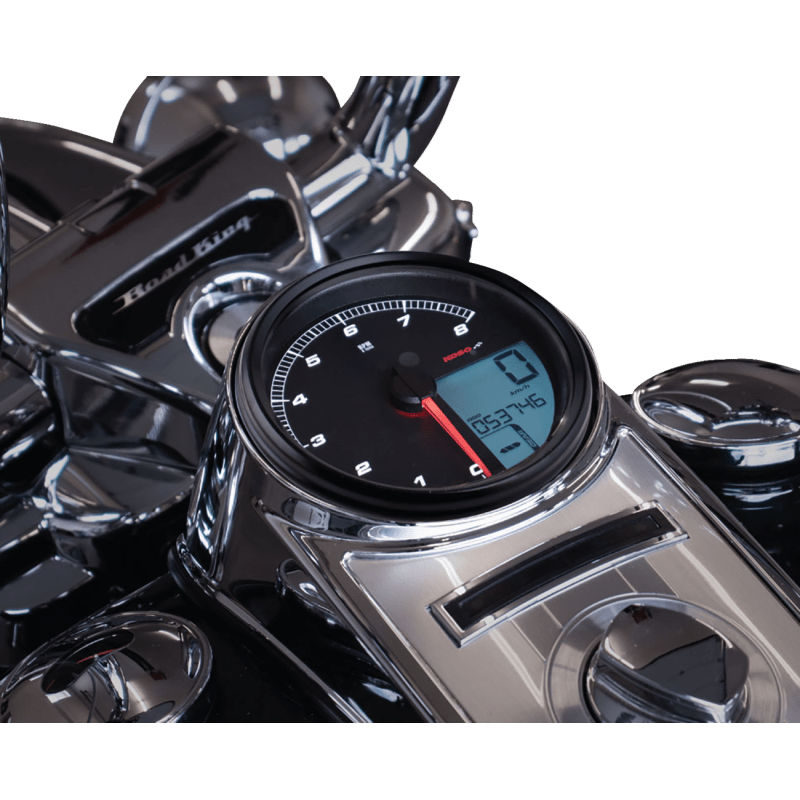

DC 12 V - Fits Harley 5” gauge on gas tank
