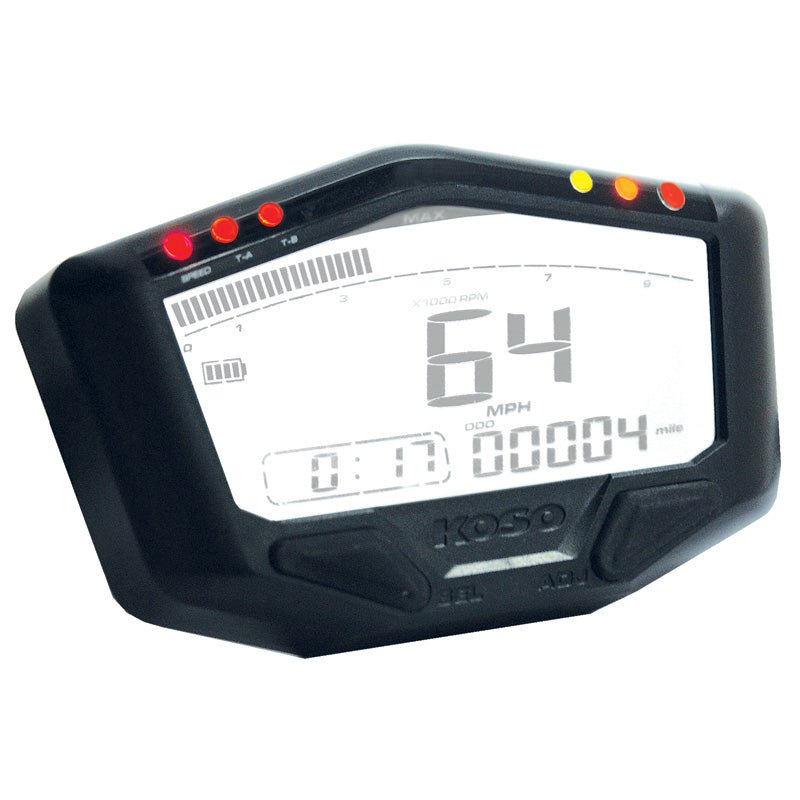

Koso North America Digital LCD Meter (Off-Road)

The DB-02 LCD meter was specially made to fit your off-road needs. Its small inner battery makes it usable on all dirt bikes and ATV’s that don’t have a 12 volts battery. Its great shape and nice LCD display make it the perfect meter to get for your off-road use. The changeable RPM scale allows this meter to fit on about any engine application. This instrument also features a 3 stage shift light to allow you to shift your gears perfectly. Besides those great functions, the DB-02 features speed, odometer, trip meter, RPM, inner battery level, temperature, hour meter and more.

Specifications (R= Range U=Unit)

• Speedometer
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH or km/h (alternative)
• Odometer
  R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
• Tripmeter A/B
  R: 0 ~ 999.9 miles (km) | U: 0.1 mile (km)
• Speeding warning light
  R: 20 ~ 225 MPH (30 ~ 360 km/h)
• Top speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
  U: 1 MPH(km)
• Average speed record
  R: 0 ~ 225 MPH (0 ~ 360 km/h)
• Tire circumference
  R: 300 ~ 2,500 mm | U: 1 mm
  Sensitive point: 1 ~ 6

• Tachometer
  R: 0~20,000 RPM | U: 10 RPM
• Level tachometer 60 levels
  R: 0 ~ 10,000 RPM | U: 166 RPM
  R: 0 ~ 15,000 RPM | U: 250 RPM
  R: 0 ~ 25,000 RPM | U: 333 RPM
• RPM input signal number
  R: P-0.5, P-1 ~P-25
• RPM shift light
  R: -5,000 ~ -20,000 RPM | U: 100 RPM
• Pre-shift light A/B
  R: 500 ~ 5,000 RPM before shift light
  U: 100 RPM
• Maximum RPM record
  R: 0 ~ 20,000 RPM
• RPM input pulse
  R: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6
