Kimpex | SKU: SF-020-004516

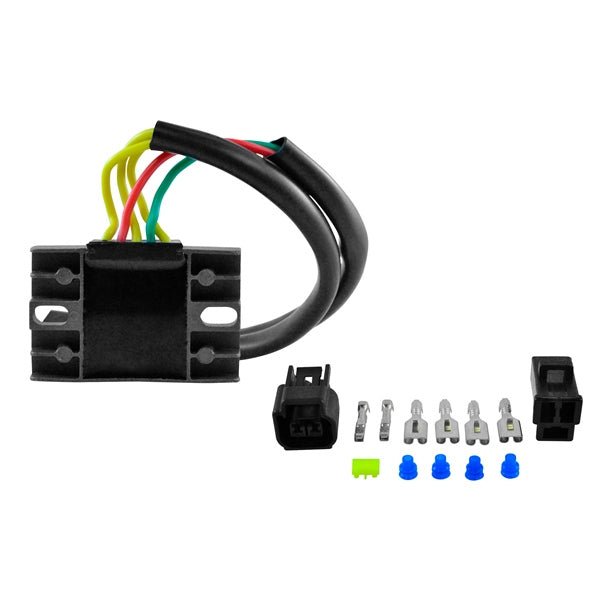

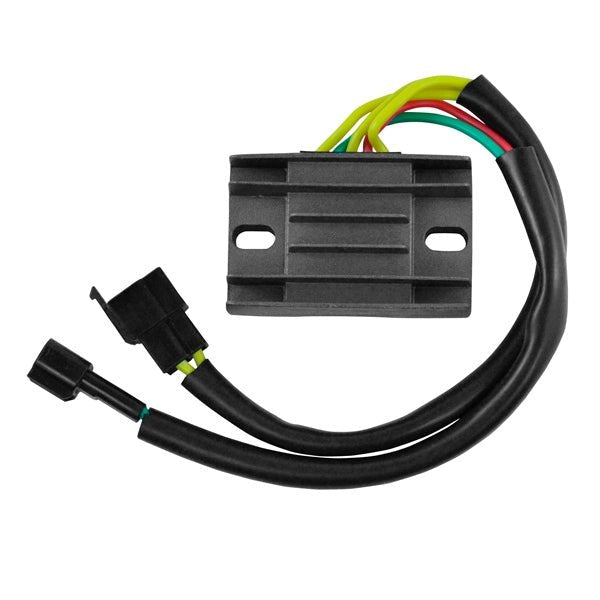

Kimpex Voltage Regulator Rectifier

$125.79 $147.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required
Higher grade of electric components.
The quality exceeds the OEM equipment
All products shipped are tested

SKU: SF-020-004516
Compatible Brand: Fits Suzuki
Height (mm): 28
Length (mm): 50
MM between fixation holes: 63
Notes: The opposite connector is include (main harness side)
Number: 225642
Number of connectors: 2
Number of terminals: 5
Number of wires: 5
Original Product Type: Voltage Regulators
Width (mm): 75
Wire length: 285 mm
Wire length: 215 mm

Make	Model	Years
KAWASAKI	KLX400	2003-2004
SUZUKI	DR-Z400E	2000-2007
SUZUKI	DR-Z400S	2000-2023
SUZUKI	DR-Z400SM	2005-2010, 2013-2020, 2023-2024
