Kimpex  |  SKU: SF-022-007615

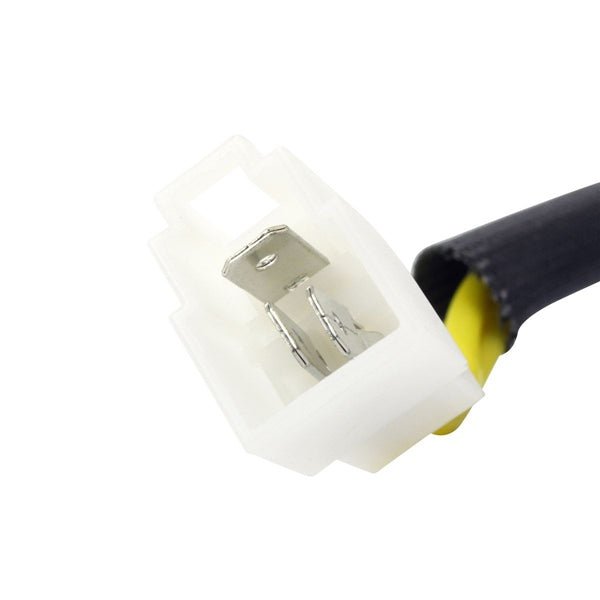

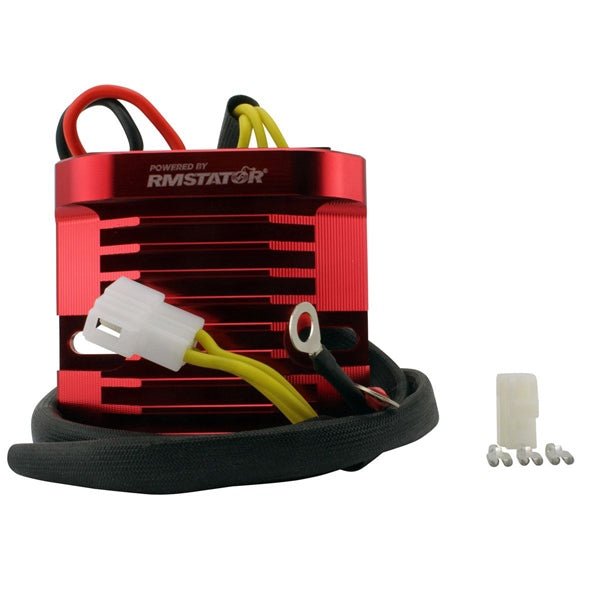

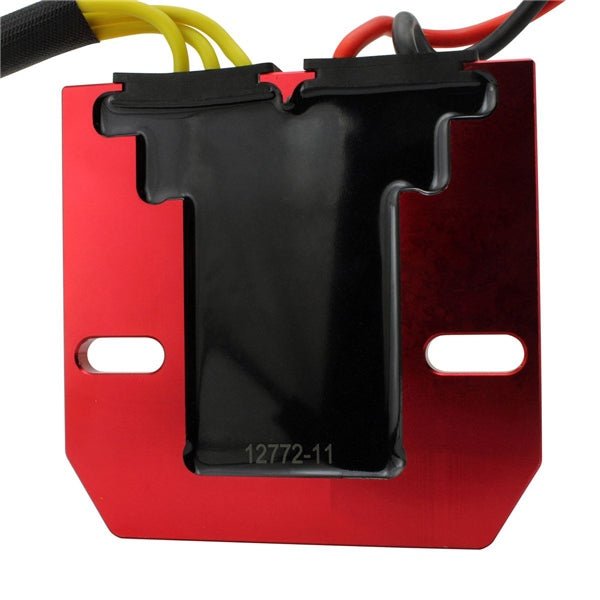

Kimpex Mosfet Voltage Regulator Rectifier

$175.94 $206.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.

It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.

  • Direct replacement to your original unit
  • No assembly required
  • Higher grade of electric components
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment
  • All products shipped are tested
  • One year limited warranty
Why use Mosfet Enhanced technology?

Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
  • SKU: SF-022-007615
  • Compatible Brand: Fits Triumph
  • Height (mm): 30
  • Length (mm): 90
  • MM between fixation holes: 75
  • Number: 345147
  • Number of connectors: 5
  • Number of terminals: 2
  • Number of wires: 5
  • Original Product Type: Voltage Regulators
  • Width (mm): 95
  • Wire length: 811 mm
  • Wire length: 350 mm
MakeModelYears
SUZUKIBandit 12502007
SUZUKIBandit 1250 ABS2007-2009
SUZUKIBandit 1250 GSF1250SA ABS2016
SUZUKIBandit 1250 SE ABS2008-2009
SUZUKIGSX-R10002005-2006, 2009, 2011-2015
SUZUKIGSX-R1000 ABS2016
SUZUKIGSX-R1000 C.E.2013, 2016
SUZUKIGSX-R1000 SE2014
SUZUKIGSX-R6001997-2000, 2008-2009, 2011-2019
SUZUKIGSX-R600 30 Years2016
SUZUKIGSX-R7501996-1999, 2008-2009, 2011-2019
SUZUKIGSX-R750 SE2014
SUZUKIGSX-S750 ABS2015-2016
SUZUKIGSX-S750 LTD2015
SUZUKIGSX1250 ABS2011
SUZUKIGSX1250 SE Touring ABS2011
SUZUKIGSX650F2008
SUZUKIGSX650F ABS2009
SUZUKIIntruder 15001998-2004
SUZUKIIntruder 1500/Boulevard C902005-2009
SUZUKIIntruder 1500/Boulevard C90 SE2005, 2007-2009
SUZUKIIntruder Touring 1500/Boulevard C90T2005-2009
SUZUKILT-A700X KingQuad 4x42005-2007
SUZUKILT-F500F QuadRunner 4X41998-2002
SUZUKIMarauder 800/Boulevard M502005-2009, 2013-2019
SUZUKISFV650 Gladius2009
SUZUKISFV650 Gladius ABS2014-2015
SUZUKISV6502017
SUZUKISV650 ABS2017, 2019
SUZUKIV-Strom 650 ABS DL650A2008-2009, 2011, 2013-2017, 2019
SUZUKIV-Strom 650 XA ABS2019
SUZUKIV-Strom 650 XT Touring2019
SUZUKIV-Strom DL650A ABS2012
SUZUKIV-Strom DL650A Adventure ABS2014-2015
SUZUKIV-Strom DL650A EXP ABS2012-2016
SUZUKIV-Strom DL650A SE ABS2012-2017
SUZUKIV-Strom DL650A SE Touring ABS2009, 2011
SUZUKIV-Strom DL650X ABS2015-2016
SUZUKIV-Strom DL650X EXP ABS2015-2016
SUZUKIV-Strom DL650XT ABS2015-2017
SUZUKIV-Strom DL650XT SE ABS2017
SUZUKIVolusia 800 SE/Boulevard C50 SE2005-2009, 2011-2019
SUZUKIVolusia 800/Boulevard C502005-2009, 2011-2019
SUZUKIVolusia 800/Boulevard C50 B.O.S.S.2014
SUZUKIVolusia 800/Boulevard C50 LTD2009
SUZUKIVolusia Touring 800/Boulevard C50T2005-2009, 2011-2015, 2017-2019
TRIUMPHDaytona 6752006-2013
TRIUMPHDaytona 675 ABS2014-2016
TRIUMPHDaytona 675 R2011-2012
TRIUMPHDaytona 675 R ABS2012-2017
TRIUMPHDaytona 675 SE2008, 2010-2012
TRIUMPHStreet Triple2008-2013
TRIUMPHStreet Triple ABS2014-2016
TRIUMPHStreet Triple R ABS2014-2020
