Kimpex | SKU:
SF-020-004014
15% off

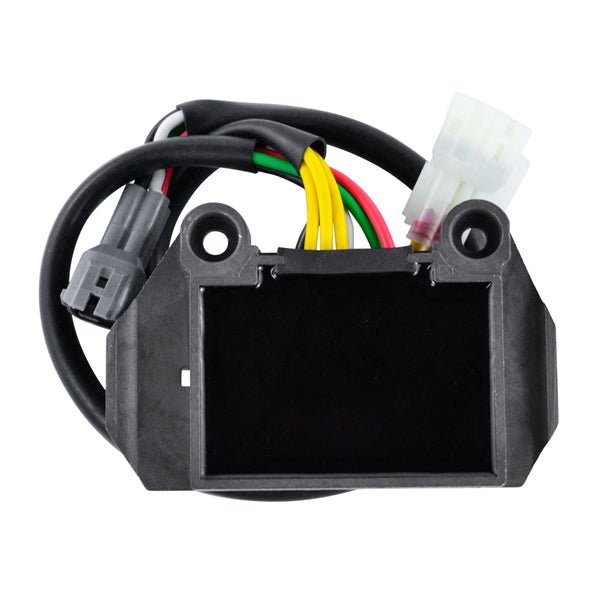

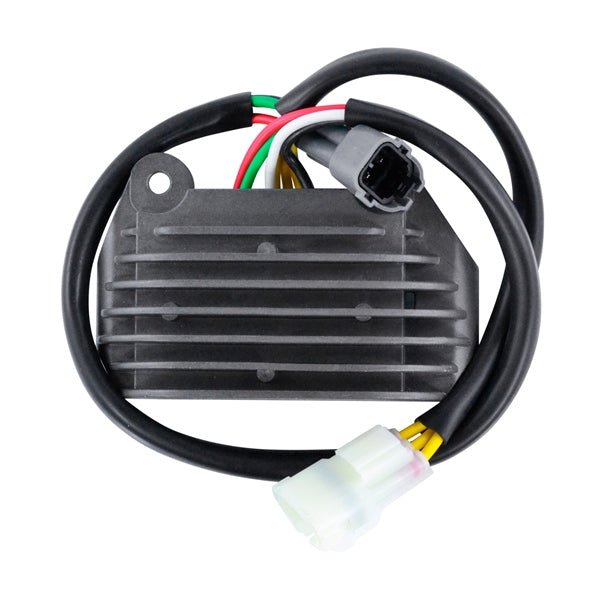

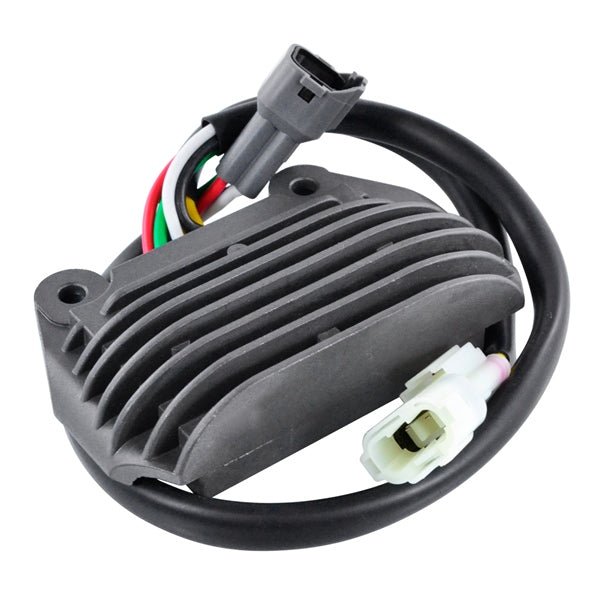

Kimpex Mosfet Voltage Regulator Rectifier
Sale price
$125.79
Regular price
$147.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
- One year limited warranty
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
- SKU: SF-020-004014
- Compatible Brand: Fits KTM
- Height (mm): 29
- Length (mm): 115
- MM between fixation holes: 6.80
- Number: 225606
- Number of connectors: 7
- Number of terminals: 2
- Number of wires: 7
- Original Product Type: Voltage Regulators
- Width (mm): 74
- Wire length: 465 mm
- Wire length: 270 mm
| Make | Model | Years |
|---|---|---|
| KTM | 250 XCF-W | 2012-2016 |
| KTM | 350 EXC-F | 2012-2016 |
| KTM | 350 XCF-W | 2012-2015 |
| KTM | 350 XCF-W 4 stroke | 2016 |
| KTM | 350 XCF-W Six Days | 2016 |
| KTM | 450 XC-W 4 Stroke | 2012-2016 |
| KTM | 500 EXC 4 Stroke | 2012-2016 |
| KTM | 500 EXC Six Days | 2016 |
| KTM | 500 XC-W 4 Stroke | 2012-2016 |
