Kimpex | SKU:
SF-020-001172
15% off

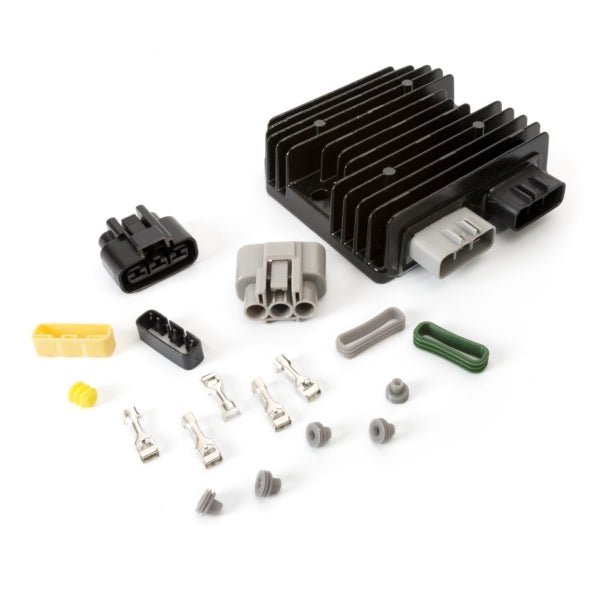

Kimpex Mosfet Voltage Regulator Rectifier
Sale price
$125.79
Regular price
$147.99
Unit price
/
Unavailable
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec
Stop burning your regulator rectifier! It is time to update or replace your voltage regulator with the advanced Mosfet type.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
It runs cooler than all OEM diode style regulators. In addition, this rectifier has overheat protection, rather than burn up it will simply turn off for a while and cool off.
- Direct replacement to your original unit
- No assembly required
- Higher grade of electric components
- Improved heat sink and charging capabilities
- The quality exceeds the OEM equipment
- All products shipped are tested
- One year limited warranty
Runs cooler: Runs much cooler than the traditional Shunt voltage regulator rectifier.
Saves gas: Less load on the stator, less work, less fuel is used and you save.
Regulated energy: The power charging your battery is steadier and smooth.
Extended battery life: Extends the battery’s life and cold cranking capacity.
More engine power: Removes stator load resulting in more engine power.
Optimized power: Optimize power delivery by switching the stator coils on or off.
- SKU: SF-020-001172
- Compatible Brand: Fits Can-am
- Height (mm): 35
- Length (mm): 111
- MM between fixation holes: 94
- Number: 281712
- Number of connectors: 2
- Number of terminals: 5
- Original Product Type: Voltage Regulators
- Width (mm): 120
| Make | Model | Years |
|---|---|---|
| CAN-AM (BRP) | Commander 1000 | 2011-2017 |
| CAN-AM (BRP) | Commander 1000 LTD | 2012-2013 |
| CAN-AM (BRP) | Commander 1000 X | 2011-2013 |
| CAN-AM (BRP) | Commander 1000 XT | 2011-2013 |
| CAN-AM (BRP) | Commander 1000 XT DPS w open diff | 2015 |
| CAN-AM (BRP) | Commander 1000 XT-P | 2014-2017 |
| CAN-AM (BRP) | Commander 1000 XT-P w open diff | 2014 |
| CAN-AM (BRP) | Commander 1000R DPS | 2013-2018 |
| CAN-AM (BRP) | Commander 1000R LTD | 2014-2017 |
| CAN-AM (BRP) | Commander 1000R XT | 2014-2017 |
| CAN-AM (BRP) | Commander 800 XT | 2011, 2014 |
| CAN-AM (BRP) | Commander 800R | 2011-2017 |
| CAN-AM (BRP) | Commander 800R DPS | 2013-2017 |
| CAN-AM (BRP) | Commander 800R XT | 2015-2017 |
| CAN-AM (BRP) | Commander MAX 1000 DPS | 2014-2016 |
| CAN-AM (BRP) | Commander MAX 1000 LTD | 2016 |
| CAN-AM (BRP) | Commander MAX 1000 XT | 2014-2016 |
| CAN-AM (BRP) | Commander MAX 1000R DPS | 2017 |
| CAN-AM (BRP) | Commander MAX 1000R LTD | 2017 |
| CAN-AM (BRP) | Commander MAX 1000R XT | 2017 |
| CAN-AM (BRP) | Commander MAX 800R DPS | 2016-2017 |
| CAN-AM (BRP) | Defender 1000 | 2016 |
| CAN-AM (BRP) | Defender 1000 DPS | 2016 |
| CAN-AM (BRP) | Defender 1000 XT | 2016 |
| CAN-AM (BRP) | Defender 1000 XT CAB | 2016 |
| CAN-AM (BRP) | Defender 800R | 2016 |
| CAN-AM (BRP) | Defender 800R DPS | 2016 |
| CAN-AM (BRP) | Defender 800R XT | 2016 |
| CAN-AM (BRP) | Defender 800R convenience pkg w lock diff. | 2016 |
| CAN-AM (BRP) | Defender HD10 | 2017 |
| CAN-AM (BRP) | Defender HD10 DPS | 2017 |
| CAN-AM (BRP) | Defender HD10 XT | 2017 |
| CAN-AM (BRP) | Defender HD10 XT CAB | 2017 |
| CAN-AM (BRP) | Defender HD8 | 2017 |
| CAN-AM (BRP) | Defender HD8 Cab | 2017 |
| CAN-AM (BRP) | Defender HD8 DPS | 2017 |
| CAN-AM (BRP) | Defender HD8 XT | 2017 |
| CAN-AM (BRP) | Defender HD8 convenience pkg w lock diff. | 2017 |
| CAN-AM (BRP) | Defender MAX HD10 DPS | 2017 |
| CAN-AM (BRP) | Defender MAX HD10 XT | 2017 |
| CAN-AM (BRP) | Defender MAX HD8 DPS | 2017 |
| CAN-AM (BRP) | Defender MAX HD8 XT | 2017 |
| CAN-AM (BRP) | Maverick 1000 | 2013-2016 |
| CAN-AM (BRP) | Maverick 1000 DPS | 2016-2017 |
| CAN-AM (BRP) | Maverick 1000 Turbo PS | 2016-2017 |
| CAN-AM (BRP) | Maverick 1000 XC | 2017 |
| CAN-AM (BRP) | Maverick 1000 XC DPS | 2016-2017 |
| CAN-AM (BRP) | Maverick 1000 Xds DPS | 2015-2016 |
| CAN-AM (BRP) | Maverick 1000 Xds Turbo DPS | 2015-2016 |
| CAN-AM (BRP) | Maverick 1000 Xmr | 2014-2017 |
| CAN-AM (BRP) | Maverick 1000 Xrs | 2013-2014 |
| CAN-AM (BRP) | Maverick 1000 Xrs DPS | 2014-2015 |
| CAN-AM (BRP) | Maverick 1000 Xrs Turbo DPS | 2016 |
| CAN-AM (BRP) | Maverick 1000 Xxc DPS | 2014-2017 |
| CAN-AM (BRP) | Maverick MAX 1000 | 2014-2015 |
| CAN-AM (BRP) | Maverick MAX 1000 DPS | 2016-2017 |
| CAN-AM (BRP) | Maverick MAX 1000 Turbo | 2016-2017 |
| CAN-AM (BRP) | Maverick MAX 1000 Turbo DPS | 2017 |
| CAN-AM (BRP) | Maverick MAX 1000 Xds DPS | 2015-2016 |
| CAN-AM (BRP) | Maverick MAX 1000 Xds Turbo DPS | 2015-2017 |
| CAN-AM (BRP) | Maverick MAX 1000 Xrs DPS | 2014-2015 |
| CAN-AM (BRP) | Maverick MAX 1000 Xrs Turbo DPS | 2016-2017 |
| CAN-AM (BRP) | Maverick MAX 1000R Xmr | 2017 |
| CAN-AM (BRP) | Maverick MAX 1000R Xrs | 2014 |
| CAN-AM (BRP) | Maverick MAX X3 Turbo R STD | 2017 |
| CAN-AM (BRP) | Maverick X3 Turbo R STD | 2017 |
| CAN-AM (BRP) | Maverick X3 XDS Turbo R | 2017 |
| CAN-AM (BRP) | Maverick X3 XRS Turbo R | 2017 |
| CAN-AM (BRP) | Outlander 1000 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander 1000 EFI | 2012 |
| CAN-AM (BRP) | Outlander 1000 Hunting Ed. PS Camo | 2017 |
| CAN-AM (BRP) | Outlander 1000 XT | 2012-2015 |
| CAN-AM (BRP) | Outlander 1000 XT-P | 2013-2015 |
| CAN-AM (BRP) | Outlander 1000 Xmr | 2013-2015 |
| CAN-AM (BRP) | Outlander 1000R DPS | 2016-2018 |
| CAN-AM (BRP) | Outlander 1000R XT | 2016-2018 |
| CAN-AM (BRP) | Outlander 1000R XT-P | 2016-2018 |
| CAN-AM (BRP) | Outlander 1000R Xmr | 2016-2018 |
| CAN-AM (BRP) | Outlander 1000R Xxc | 2018 |
| CAN-AM (BRP) | Outlander 500 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander 500 XT | 2010-2015 |
| CAN-AM (BRP) | Outlander 500 XT-P | 2010 |
| CAN-AM (BRP) | Outlander 650 | 2017-2018 |
| CAN-AM (BRP) | Outlander 650 DPS | 2013-2018 |
| CAN-AM (BRP) | Outlander 650 XT | 2010-2018 |
| CAN-AM (BRP) | Outlander 650 XT-P | 2010-2011 |
| CAN-AM (BRP) | Outlander 650 Xmr DPS | 2013-2018 |
| CAN-AM (BRP) | Outlander 800 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander 800 XT | 2010-2015 |
| CAN-AM (BRP) | Outlander 800 XT-P | 2010-2011, 2013-2015 |
| CAN-AM (BRP) | Outlander 800 Xxc | 2011 |
| CAN-AM (BRP) | Outlander 800R Xmr | 2011-2012, 2015 |
| CAN-AM (BRP) | Outlander 850 | 2016-2017 |
| CAN-AM (BRP) | Outlander 850 DPS | 2016-2017 |
| CAN-AM (BRP) | Outlander MAX 1000 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander MAX 1000 LTD | 2013-2015 |
| CAN-AM (BRP) | Outlander MAX 1000R LTD | 2016-2017 |
| CAN-AM (BRP) | Outlander MAX 1000R XT | 2013-2017 |
| CAN-AM (BRP) | Outlander MAX 1000R XT-P | 2013-2017 |
| CAN-AM (BRP) | Outlander MAX 500 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander MAX 500 LTD | 2010 |
| CAN-AM (BRP) | Outlander MAX 500 XT | 2010-2015 |
| CAN-AM (BRP) | Outlander MAX 500 XT-P | 2010 |
| CAN-AM (BRP) | Outlander MAX 570 DPS | 2016 |
| CAN-AM (BRP) | Outlander MAX 570 XT | 2016 |
| CAN-AM (BRP) | Outlander MAX 650 DPS | 2013-2017 |
| CAN-AM (BRP) | Outlander MAX 650 XT | 2010-2017 |
| CAN-AM (BRP) | Outlander MAX 650 XT-P | 2010-2012 |
| CAN-AM (BRP) | Outlander MAX 800 DPS | 2013-2015 |
| CAN-AM (BRP) | Outlander MAX 800 LTD | 2010-2012 |
| CAN-AM (BRP) | Outlander MAX 800 XT | 2010-2015 |
| CAN-AM (BRP) | Outlander MAX 800 XT-P | 2010-2015 |
| CAN-AM (BRP) | Outlander MAX 850 XT | 2016-2017 |
| CAN-AM (BRP) | Outlander MAX 850 XT-P | 2016-2017 |
| CAN-AM (BRP) | Renegade 1000R | 2016-2017 |
| CAN-AM (BRP) | Renegade 1000R Xmr | 2016-2017 |
| CAN-AM (BRP) | Renegade 1000R Xxc | 2012-2017 |
| CAN-AM (BRP) | Renegade 570 | 2016-2017 |
| CAN-AM (BRP) | Renegade 800 Xxc | 2010-2015 |
| CAN-AM (BRP) | Renegade 850 | 2016-2017 |
| CAN-AM (BRP) | Renegade 850 Xxc | 2016-2017 |
| CAN-AM (BRP) | Spyder RS SE5 | 2015 |
| CAN-AM (BRP) | Spyder RS SE5 Semi-Automatic | 2013-2014 |
| CAN-AM (BRP) | Spyder RS SM5 | 2015-2016 |
| CAN-AM (BRP) | Spyder RS SM5 5 Speed | 2013-2014 |
| CAN-AM (BRP) | Spyder RS-S SE5 | 2015-2016 |
| CAN-AM (BRP) | Spyder RS-S SE5 Semi-Automatic | 2013-2014 |
| CAN-AM (BRP) | Spyder RS-S SM5 | 2015-2016 |
| CAN-AM (BRP) | Spyder RS-S SM5 5 Speed | 2013-2014 |
| CAN-AM (BRP) | Spyder RT Limited SE5 | 2011-2013 |
| CAN-AM (BRP) | Spyder RT SE5 Audio/Convenience | 2010-2012 |
| CAN-AM (BRP) | Spyder RT SM5 | 2010-2013 |
| CAN-AM (BRP) | Spyder RT SM5 Audio/Convenience | 2010-2012 |
| CAN-AM (BRP) | Spyder RT-S SE5 | 2010-2013 |
| CAN-AM (BRP) | Spyder ST SE5 | 2013-2015 |
| CAN-AM (BRP) | Spyder ST SM5 | 2013-2015 |
| CAN-AM (BRP) | Spyder ST-S SE5 | 2013-2016 |
| CAN-AM (BRP) | Spyder ST-S SM5 | 2013-2015 |
| CFMOTO | Cforce 1000 EPS | 2023-2024 |
| CFMOTO | Cforce 600 EPS | 2023-2025 |
| CFMOTO | Cforce 600 EPS Touring | 2023-2025 |
| CFMOTO | Cforce 800 XC EPS | 2023-2024 |
| CFMOTO | Uforce 1000 EPS | 2023-2025 |
| CFMOTO | Uforce 1000 XL EPS | 2023-2025 |
| CFMOTO | Uforce 600 EPS | 2024-2025 |
| CFMOTO | Zforce 800 EFI Trail | 2020-2022 |
| CFMOTO | Zforce 800 EX EPS | 2020-2022 |
| CFMOTO | Zforce 950 EPS Sport | 2025 |
| CFMOTO | Zforce 950 EPS Sport-4 | 2024-2025 |
| CFMOTO | Zforce 950 HO Sport EPS | 2023 |
| CFMOTO | Zforce 950 Sport G2 EPS | 2023-2024 |
