1 3
Kimpex  |  SKU: PAUJ-1018

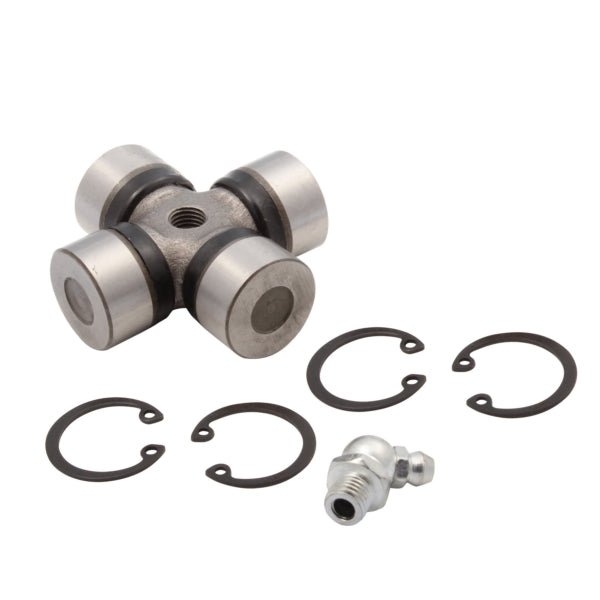

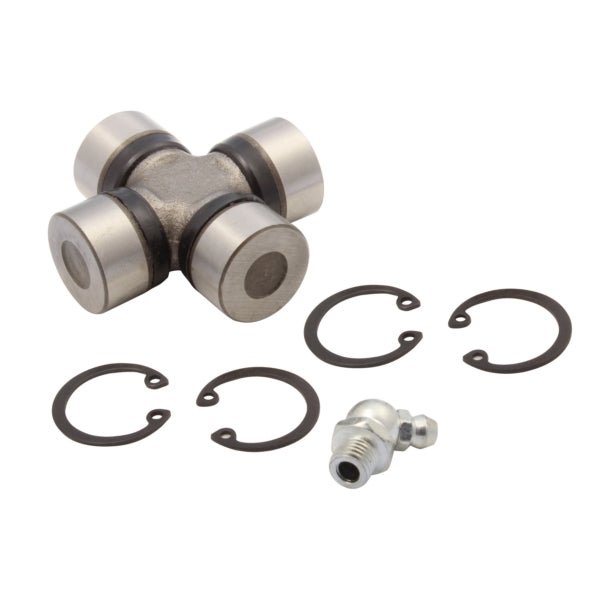

Kimpex Universal Joint

$19.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

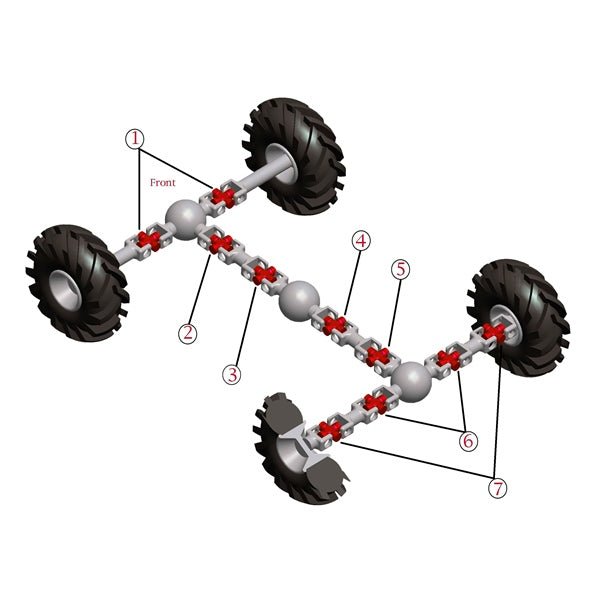

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: PAUJ-1018
    • Model number: PAUJ-1018
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.865"
    • Total length: 2.133"
    • Zerk: Yes
    MakeModelYears
    POLARISATP 330 4x42004-2005
    POLARISBig Boss 400L 6X61997
    POLARISBig Boss 500 6X61998-1999
    POLARISDiesel 455 4x41999-2001
    POLARISMagnum 325 4X42000-2002
    POLARISMagnum 330 4x42003-2006
    POLARISMagnum 425 4X41997-1998
    POLARISMagnum 425 6X61996-1997
    POLARISMagnum 500 4x42000-2001, 2003
    POLARISScrambler 400L 4x41995-1998
    POLARISScrambler 500 4X41997-1998
    POLARISSportsman 335 4x41999-2000
    POLARISSportsman 400 4X42001
    POLARISSportsman 400L 4X41995-1997
    POLARISSportsman 500 4x41996, 1998-2000, 2004
    POLARISSportsman 500 6x62000-2001
    POLARISSportsman 500 HO2001, 2004
    POLARISSportsman 500 RSE1999-2000
    POLARISSportsman 500 RSE / DUSE2001
    POLARISWorker 3351999
    POLARISWorker 5001999
    POLARISXpedition 325 4X42000-2002
    POLARISXpedition 425 4X42000-2001
    POLARISXplorer 300 4X41996-1999
    POLARISXplorer 400L 4x41995-1998
