Kimpex  |  SKU: 19-1016-KIMP

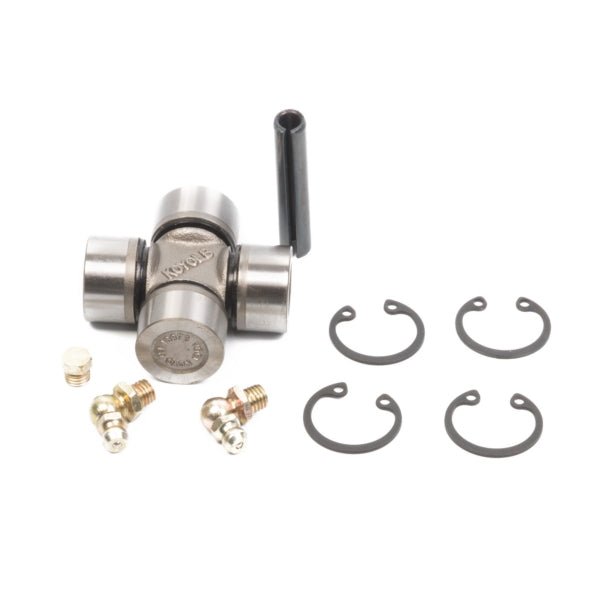

Kimpex Universal Joint

$36.54 $42.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

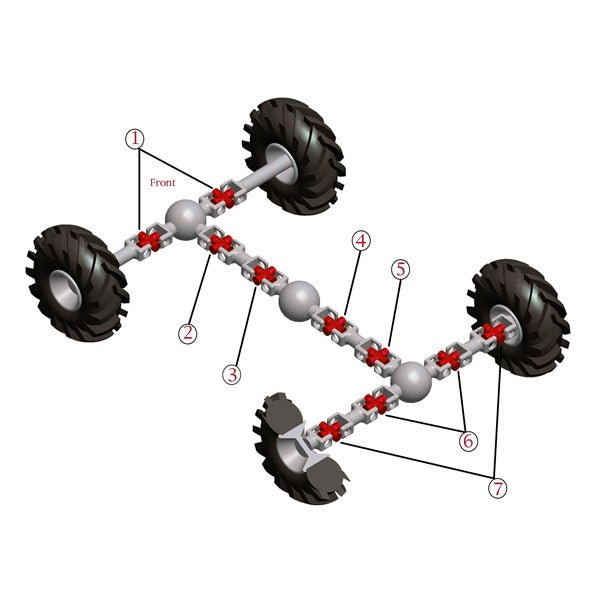

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1016-KIMP
    • Model number: 19-1016-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.839"
    • Total length: 1.9"
    • Zerk: Yes
    MakeModelYears
    POLARISScrambler 1000 XP EPS 4x42014-2017
    POLARISScrambler 8502015-2017
    POLARISScrambler 850 XP2014
    POLARISScrambler 850 XP LE EPS2014
    POLARISSportsman 1000 Touring XP EPS2015-2017
    POLARISSportsman 1000 XP EPS2015-2017
    POLARISSportsman 5502011-2013
    POLARISSportsman 550 EPS2012-2014
    POLARISSportsman 550 EPS Browning2011-2012
    POLARISSportsman 550 EPS Camo2014
    POLARISSportsman 550 Forest 4X42011-2014
    POLARISSportsman 550 Touring EPS2010-2014
    POLARISSportsman 550 X2 EFI2011-2013
    POLARISSportsman 550 X2 EPS2014
    POLARISSportsman 8502015
    POLARISSportsman 850 Forest 4X42011-2014
    POLARISSportsman 850 SP EPS2015-2017
    POLARISSportsman 850 Touring EFI EPS2011
    POLARISSportsman 850 Touring EPS2011-2014
    POLARISSportsman 850 Touring SP EPS2015-2017
    POLARISSportsman 850 X2 EFI2011
    POLARISSportsman 850 XP2011-2013
    POLARISSportsman 850 XP EPS2011-2014
    POLARISSportsman 850 XP EPS Browning2011
    POLARISSportsman 850 XP EPS Camo2014
    POLARISSportsman WV850 Terrainarmor2014
