Kimpex  |  SKU: 19-1007-KIMP

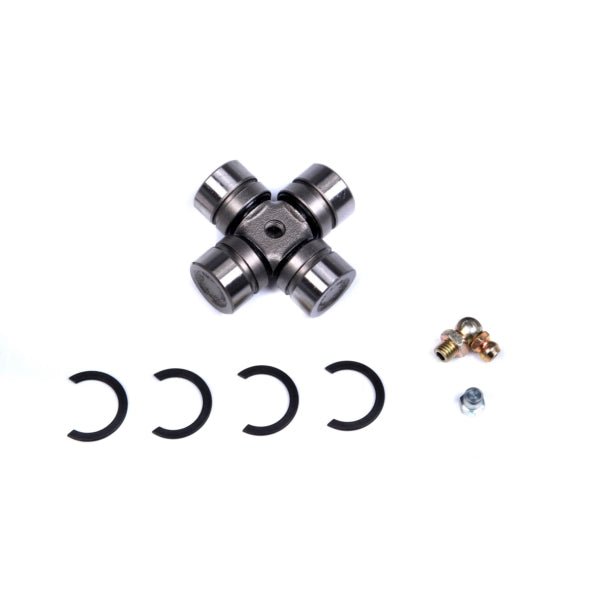

Kimpex Universal Joint

$40.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

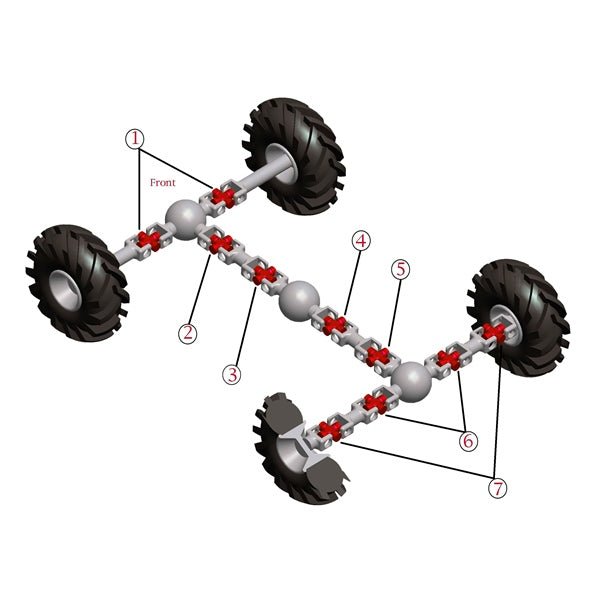

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1007-KIMP
    • Model number: 19-1007-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.787"
    • Total length: 1.3"
    • Zerk: Yes
    MakeModelYears
    KAWASAKIBayou 400 4x41993-1999
    KAWASAKIKLF400B 4x4 Bayou 4001993-1999
    KAWASAKIKVF300A 4x4 Prairie1999-2002
    KAWASAKIKVF400A 4x4 Prairie 4001997-1998
    KAWASAKIKVF400C 4x4 Prairie 4001999-2002
    KAWASAKIPrairie 300 4x41999-2002
    KAWASAKIPrairie 400 4x41997-2002
