Kimpex  |  SKU: 19-1006-KIMP

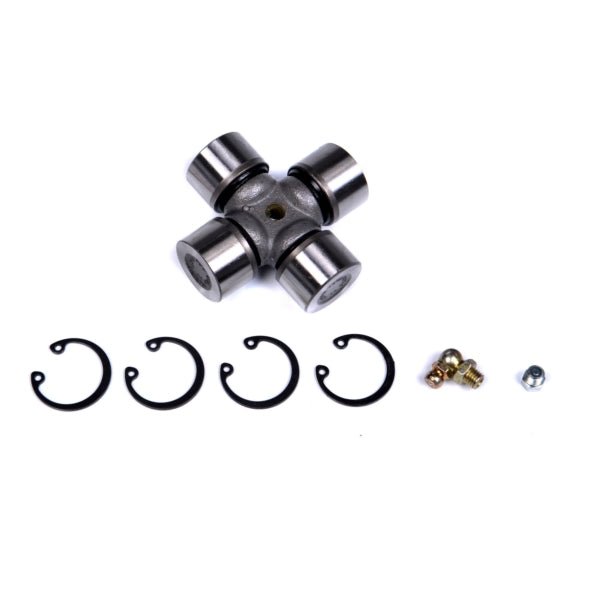

Kimpex Universal Joint

$44.99 $49.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

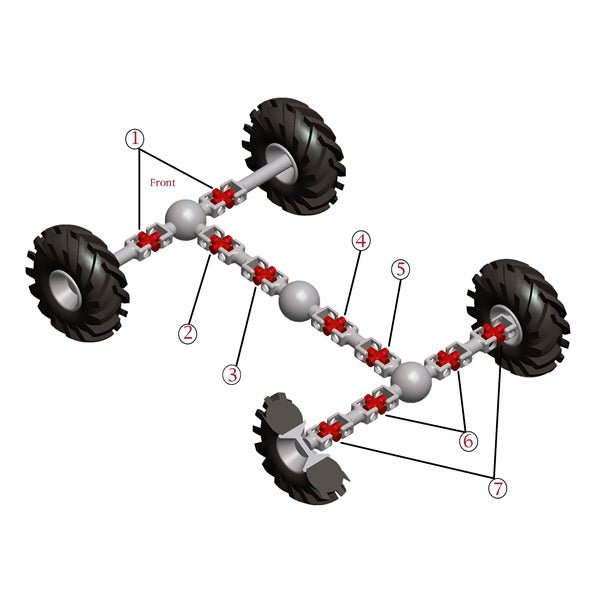

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1006-KIMP
    • Model number: 19-1006-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.984"
    • Total length: 2.528"
    • Zerk: Yes
    MakeModelYears
    CAN-AM (BRP)Commander 10002011-2014, 2016
    CAN-AM (BRP)Commander 1000 LTD2012-2013
    CAN-AM (BRP)Commander 1000 X2011-2013
    CAN-AM (BRP)Commander 1000 XT2011-2013
    CAN-AM (BRP)Commander 1000 XT-P2014
    CAN-AM (BRP)Commander 1000 XT-P w open diff2014
    CAN-AM (BRP)Commander 1000R DPS2013-2014, 2016
    CAN-AM (BRP)Commander 1000R LTD2014
    CAN-AM (BRP)Commander 1000R XT2014, 2016
    CAN-AM (BRP)Commander 800 XT2011-2013
    CAN-AM (BRP)Commander 800R2011-2013, 2015-2016
    CAN-AM (BRP)Commander 800R DPS2013, 2016
    CAN-AM (BRP)Commander 800R XT2016
    CAN-AM (BRP)Commander MAX 1000 DPS2014, 2016
    CAN-AM (BRP)Commander MAX 1000 XT2014
    CAN-AM (BRP)Commander MAX 800R DPS2016
    CAN-AM (BRP)Maverick 10002013
    CAN-AM (BRP)Maverick 1000 Xrs2013
    CAN-AM (BRP)Outlander 1000 DPS2013-2015
    CAN-AM (BRP)Outlander 1000 XT2012-2015
    CAN-AM (BRP)Outlander 1000 XT-P2013-2015
    CAN-AM (BRP)Outlander 1000 Xmr2013-2014
    CAN-AM (BRP)Outlander 1000R DPS2016-2018
    CAN-AM (BRP)Outlander 1000R XT2016-2018
    CAN-AM (BRP)Outlander 1000R XT-P2016-2018
    CAN-AM (BRP)Outlander 1000R Xmr2016-2018
    CAN-AM (BRP)Outlander 1000R Xxc2018
    CAN-AM (BRP)Outlander 4002013-2015
    CAN-AM (BRP)Outlander 400 XT EFI2013-2014
    CAN-AM (BRP)Outlander 5002007-2014
    CAN-AM (BRP)Outlander 500 DPS2015
    CAN-AM (BRP)Outlander 500 XT2007-2014
    CAN-AM (BRP)Outlander 5702017-2023
    CAN-AM (BRP)Outlander 570 DPS2017-2023
    CAN-AM (BRP)Outlander 570 Hunting Edition2019
    CAN-AM (BRP)Outlander 570 MR2022
    CAN-AM (BRP)Outlander 570 XT2016-2023
    CAN-AM (BRP)Outlander 570 Xmr DPS2019-2023
    CAN-AM (BRP)Outlander 6502006-2015, 2017-2018
    CAN-AM (BRP)Outlander 650 DPS2014-2018
    CAN-AM (BRP)Outlander 650 XT2006-2020
    CAN-AM (BRP)Outlander 650 Xmr DPS2013-2018
    CAN-AM (BRP)Outlander 8002006-2015
    CAN-AM (BRP)Outlander 800 DPS2013, 2015
    CAN-AM (BRP)Outlander 800 XT2006-2015
    CAN-AM (BRP)Outlander 800 XT-P2010-2011, 2015
    CAN-AM (BRP)Outlander 800 Xxc2011
    CAN-AM (BRP)Outlander 800R Xmr2011-2012
    CAN-AM (BRP)Outlander 8502016, 2018
    CAN-AM (BRP)Outlander 850 DPS2016-2018
    CAN-AM (BRP)Outlander 850 XT2016-2018
    CAN-AM (BRP)Outlander 850 XT-P2016-2018
    CAN-AM (BRP)Outlander 850 Xmr2016
    CAN-AM (BRP)Outlander MAX 1000 DPS2013-2015
    CAN-AM (BRP)Outlander MAX 1000 LTD2013-2015
    CAN-AM (BRP)Outlander MAX 1000R LTD2016-2018
    CAN-AM (BRP)Outlander MAX 1000R XT2013-2018
    CAN-AM (BRP)Outlander MAX 1000R XT-P2013-2018
    CAN-AM (BRP)Outlander MAX 4002013-2014
    CAN-AM (BRP)Outlander MAX 400 XT2013-2014
    CAN-AM (BRP)Outlander MAX 5002007-2014
    CAN-AM (BRP)Outlander MAX 500 DPS2015
    CAN-AM (BRP)Outlander MAX 500 XT2007-2015
    CAN-AM (BRP)Outlander MAX 5702018-2023
    CAN-AM (BRP)Outlander MAX 570 DPS2018-2023
    CAN-AM (BRP)Outlander MAX 570 XT2021-2023
    CAN-AM (BRP)Outlander MAX 6502006-2015
    CAN-AM (BRP)Outlander MAX 650 XT2006-2014
    CAN-AM (BRP)Outlander MAX 650 XT-P2010-2012
    CAN-AM (BRP)Outlander MAX 8002006-2012
    CAN-AM (BRP)Outlander MAX 800 DPS2013-2015
    CAN-AM (BRP)Outlander MAX 800 LTD2007-2012
    CAN-AM (BRP)Outlander MAX 800 XT2006-2015
    CAN-AM (BRP)Outlander MAX 800 XT-P2010-2011, 2015
    CAN-AM (BRP)Outlander MAX 850 North Edition2018
    CAN-AM (BRP)Outlander MAX 850 XT2016-2018
    CAN-AM (BRP)Outlander MAX 850 XT-P2016-2018
    CAN-AM (BRP)Quest 500 4x42004
    CAN-AM (BRP)Quest 500 4x4 XT2002-2004
    CAN-AM (BRP)Quest 650 4x42002-2004
    CAN-AM (BRP)Quest 650 4x4 XT2002-2004
    CAN-AM (BRP)Quest MAX 650 4x42004
    CAN-AM (BRP)Renegade 1000R2012-2017
    CAN-AM (BRP)Renegade 1000R Xmr2016-2018
    CAN-AM (BRP)Renegade 1000R Xxc2012-2018
    CAN-AM (BRP)Renegade 5002008-2015
    CAN-AM (BRP)Renegade 5702018
    CAN-AM (BRP)Renegade 570 Xmr2017-2018
    CAN-AM (BRP)Renegade 8002007-2008
    CAN-AM (BRP)Renegade 800 Xxc2010-2015
    CAN-AM (BRP)Renegade 800R2009-2015
    CAN-AM (BRP)Renegade 800R X2008-2009
    CAN-AM (BRP)Renegade 8502016-2018
    CAN-AM (BRP)Renegade 850 Xxc2016-2018
    CAN-AM (BRP)Traxter 500 4x4 Automatic2005
    CAN-AM (BRP)Traxter 500 5 Speed Automatic2005
    CAN-AM (BRP)Traxter 500 XL 5 Speed Semi-Automatic2005
    CAN-AM (BRP)Traxter 6502004-2005
    CAN-AM (BRP)Traxter MAX 6502005
    CFMOTOTracker 8002014
    JOHN DEERETrail Buck 6502004-2006
    JOHN DEERETrail Buck 650 EX2004-2006
    JOHN DEERETrail Buck 650 EXT2004-2005
    POLARISRZR PRO XP 4 Premium2021
    POLARISRZR PRO XP 4 Premium EFI2021-2023
    POLARISRZR PRO XP 4 Sport2021
    POLARISRZR PRO XP 4 Sport EFI2021-2023
    POLARISRZR PRO XP 4 Ultimate2021
    POLARISRZR PRO XP 4 Ultimate EFI2021-2023
    POLARISRZR PRO XP Premium2021-2022
    POLARISRZR PRO XP Premium EFI2021-2022
    POLARISRZR PRO XP Sport2021-2022
    POLARISRZR PRO XP Sport EFI2021-2022
    POLARISRZR PRO XP Ultimate2021-2022
    POLARISRZR PRO XP Ultimate EFI2021-2022
