Kimpex  |  SKU: 19-1004-KIMP

Kimpex Universal Joint

$36.54 $42.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

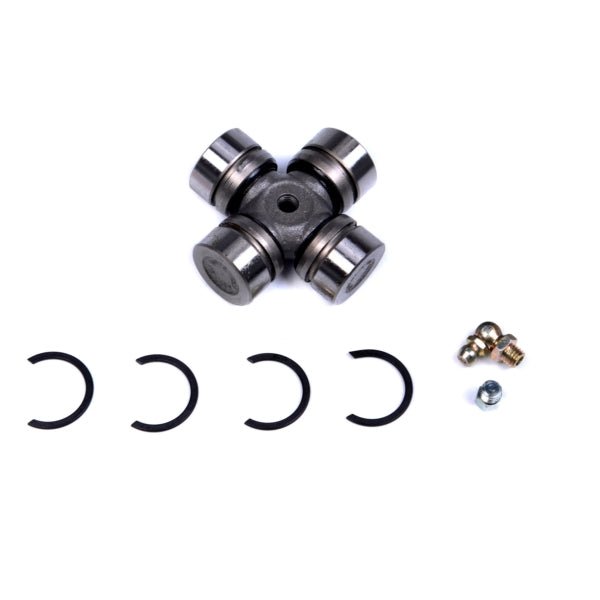

  • U Joints are cold forged from SCM-415 steel, precision ground journals are case hardened to HRC58-61
  • U Joints are pre greased with hi-temp Lithium Complex 3 grease.
  • Bearing cups feature a Quad lip seal to keep contamination out and grease in.
  • Centrally located grease zerk and grease channels in bearing cup evenly distribute grease.
  • Kits include cap plug to eliminate grease zerk for low clearance applications.
  • Honda Yoke assemblies have upgraded cross diameters from 17mm to 19mm.
  • Honda yoke assemblies feature stainless steel clamps and hi quality neoprene rubber boots for long life and abrasion resistance.
Notes for utility Models:

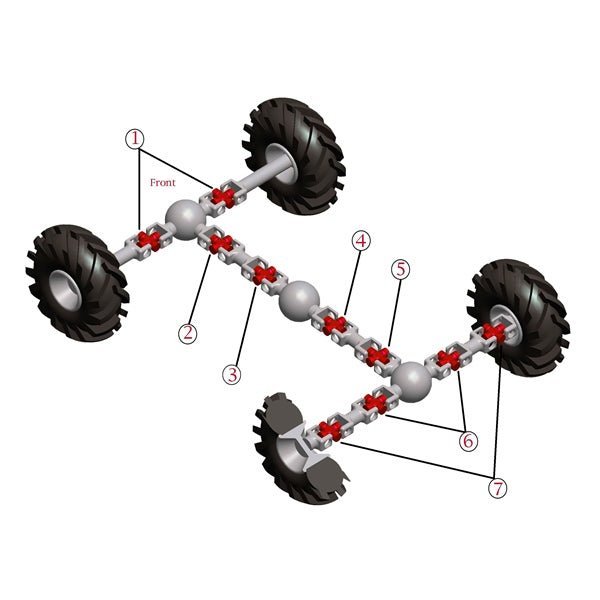

  • A) Six Wheel vehicules middle drive shaft use the same U-Joints as rear drive Shaft (Location 4 & 5)
  • B) Middle axle use the same U-Joints as rear axle (Location 6 & 7)
  • C) Utility vehicules with middle U-Joints on front drive shaft use same U-Joints as front (Location 2)
    • In order to know the exact position of every joint made for your ATV model, refer to the charter in Kimpex ATV & UTV online at the Axles & Universal CV Boots section.
    • SKU: 19-1004-KIMP
    • Model number: 19-1004-KIMP
    • Original Product Type: Universal Joints
    • Position: Varies by model
    • Snap ring included: Yes
    • Tip length: 0.945"
    • Total length: 1.624"
    • Zerk: Yes
    MakeModelYears
    KAWASAKIBrute Force 650 4x42005-2013
    KAWASAKIBrute Force 750 4x4i2005-2021
    KAWASAKIBrute Force 750 EPS 4x4i2012-2023
    KAWASAKIBrute Force 750 SE EPS 4x4i2018
    KAWASAKIKSV700/KFX7002004-2009
    KAWASAKIKVF360A 4x4 Prairie2003-2013
    KAWASAKIKVF360B 2x4 Prairie2003-2009
    KAWASAKIKVF650A 4x4 Prairie2002-2003
    KAWASAKIKVF650D 4x4 Brute Force2005-2013
    KAWASAKIKVF650F 4x4i Brute Force2006-2013
    KAWASAKIKVF700A 4x4 Prairie2004-2006
    KAWASAKIKVF700D 4x4 Prairie SE2006
    KAWASAKIKVF750A 4x4i Brute Force2005-2007
    KAWASAKIKVF750D 4x4i Brute Force2008-2011
    KAWASAKIKVF750G 4x4i Brute Force EPS2012-2023
    KAWASAKIKVF750J 4x4i Brute Force SE EPS2018
    KAWASAKIKVF750L 4x4i Brute Force2012-2021
    KAWASAKIPrairie 360 2x42003-2009
    KAWASAKIPrairie 360 4x42003-2013
    KAWASAKIPrairie 650 4x42002-2003
    KAWASAKIPrairie 700 4x42004-2006
    KAWASAKIPrairie 700 SE 4x42006
    SUZUKILT-V700F Twin Peaks 700 4x42004-2005
