Kimpex  |  SKU: SF-010-002199

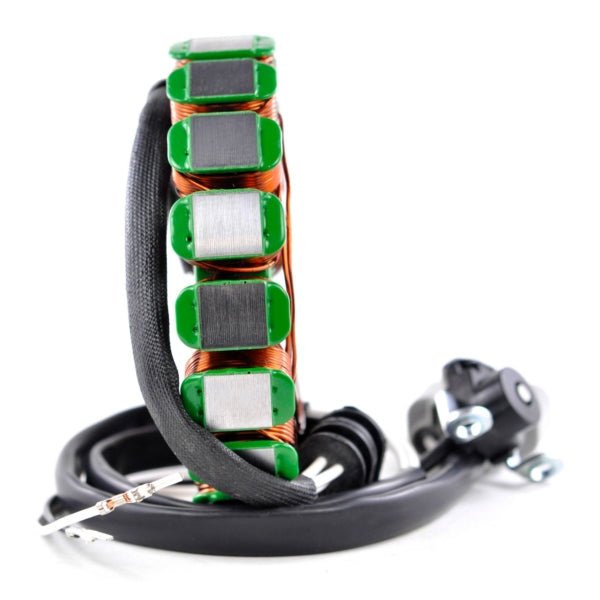

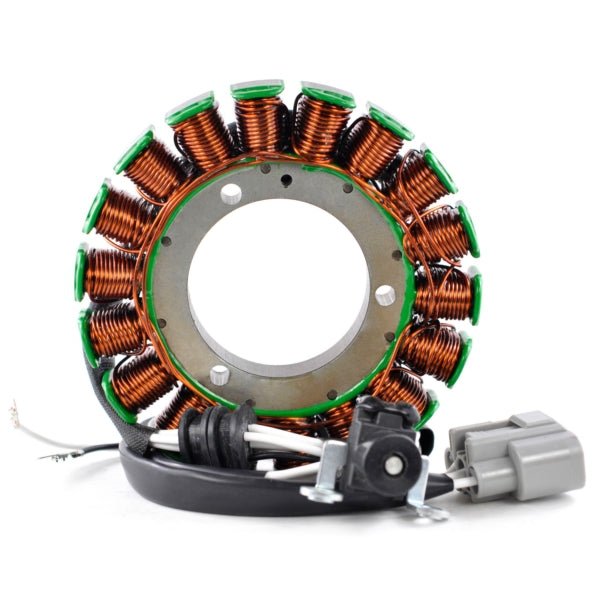

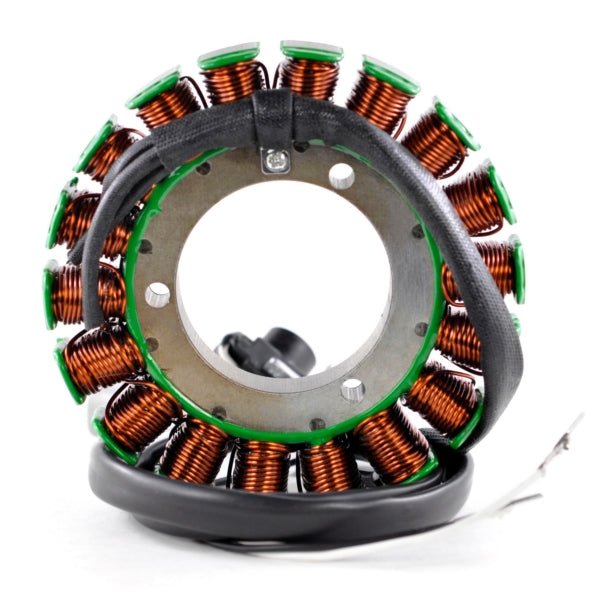

Kimpex Stator

$262.99 $288.99
✔ In stock — ready to ship
⚡ Typically ships within 1–2 business days
🚚 Free shipping on orders over $279
📦 Ships from Canadian warehouses (AB, ON, QC)
🔒 Secure checkout — trusted payment methods

Fast Shipping from Canadian Warehouses

📦 Delivered in 3–7 business days (Canada)
✔ No duties or cross-border delays

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

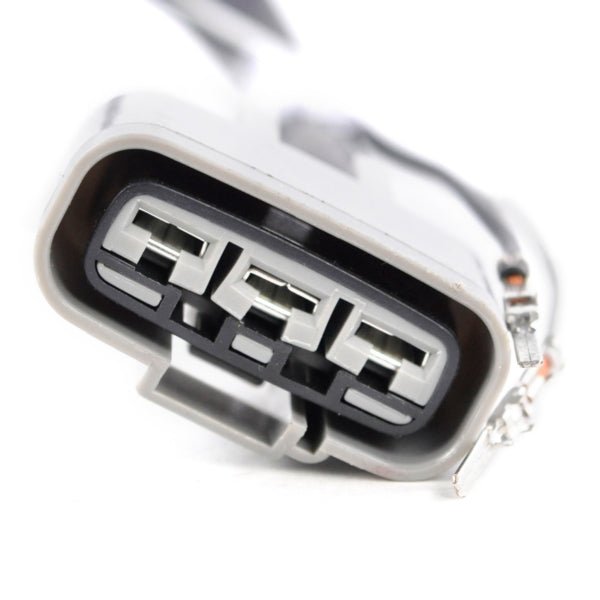

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-002199
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 130
  • Internal Diameter (mm): 58
  • Notes: Includes: Pick up pulsar
  • Number: 285100
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 18
MakeModelYears
YAMAHAV Star 1300 Classic2011-2015
YAMAHAV Star 1300 Deluxe2013-2015
YAMAHAV Star 1300 Deluxe SE2015-2017
YAMAHAV Star 1300 Stryker2011-2016
YAMAHAV Star 1300 Stryker SE2015-2017
YAMAHAV Star 1300 Tourer2010-2017
