Kimpex  |  SKU: SF-010-001961

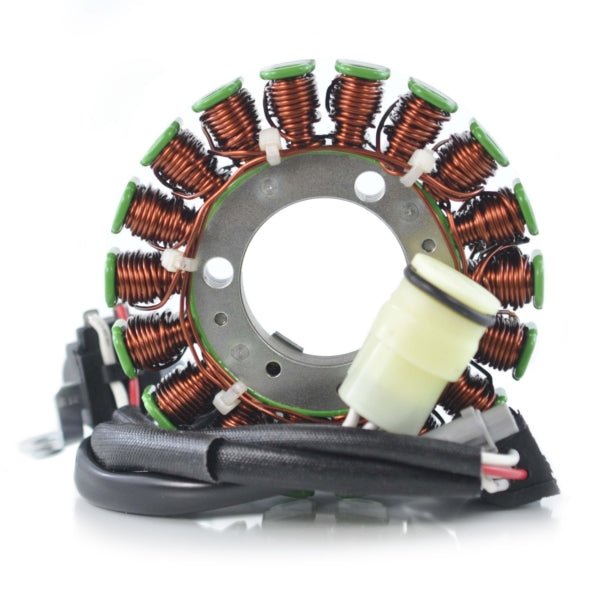

Kimpex Stator

$201.44 $236.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-001961
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 97
  • Internal Diameter (mm): 37
  • Number: 225296
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 14
MakeModelYears
YAMAHAYFZ4502010-2011
YAMAHAYFZ450R2009-2016, 2018-2025
YAMAHAYFZ450R FI2009
YAMAHAYFZ450R SE2009-2023, 2025
YAMAHAYFZ450R SE FI2009
YAMAHAYFZ450R SE YFZ45RS2010-2014
YAMAHAYFZ450R SE YFZ45YSS2016-2020, 2023
YAMAHAYFZ450R SE YFZ4RS2015
YAMAHAYFZ450R YFZ45R2010-2011, 2013-2015
YAMAHAYFZ450R YFZ45YSX2016, 2018-2023
YAMAHAYFZ450R YZF45R2012
YAMAHAYFZ450X YFZ45X2010-2011
