Kimpex  |  SKU: SF-010-000505

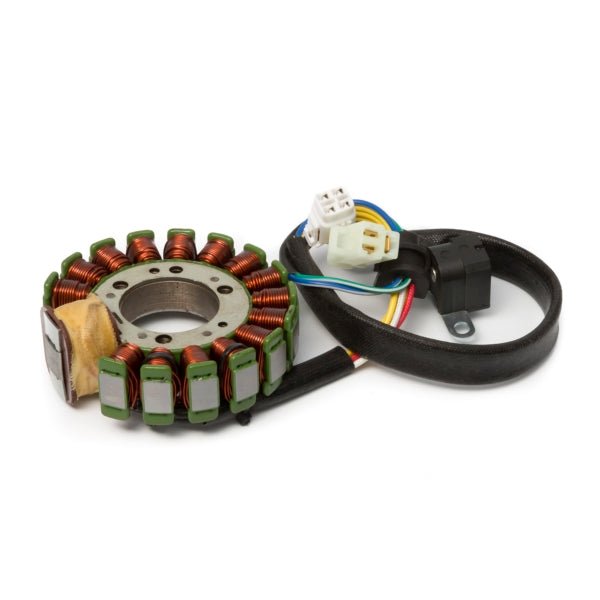

Kimpex Stator

$245.64 $288.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000505
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 93
  • Internal Diameter (mm): 33
  • Number: 285647
  • Number of connectors: 2
  • Number of terminals: 7
  • Number of wires: 7
  • Original Product Type: Stators
  • Thickness (mm): 15
MakeModelYears
YAMAHABear Tracker YFM250X1999-2000
YAMAHATimberwolf 2x41994-1998
YAMAHATimberwolf 2x4 YFB2501994-1998
YAMAHATimberwolf 4X41994-2000
YAMAHATimberwolf 4X4 YFB250FW1994-2000
