Kimpex  |  SKU: SF-010-007372

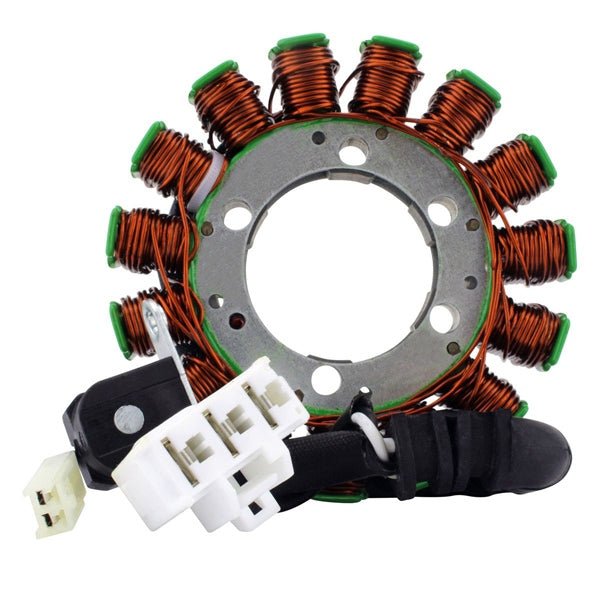

Kimpex Stator

$194.99
  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-007372
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 105
  • Internal Diameter (mm): 43
  • Number: 225908
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 13

Fits 5 vehicles

Yamaha FZ10 1000 ABS2017
Yamaha MT-102021
Yamaha MT-10 ABS2018-2020
Yamaha YZF-R1 10002019, 2021-2025
Yamaha YZF-R1 1000 ABS2015-2018, 2020
