Kimpex  |  SKU: SF-010-006242

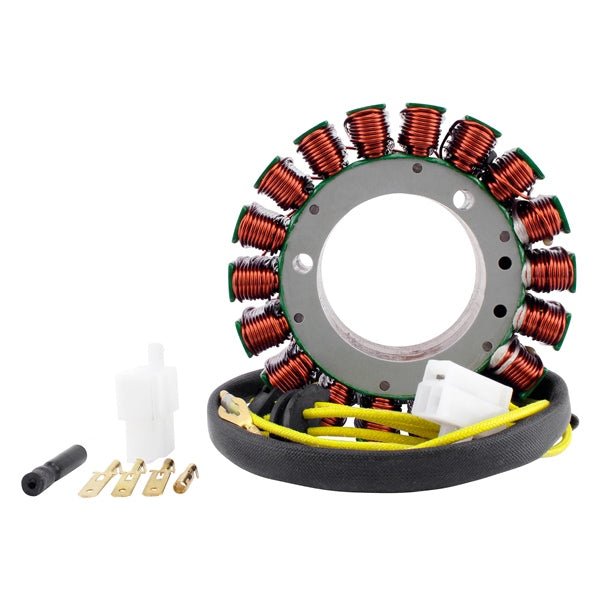

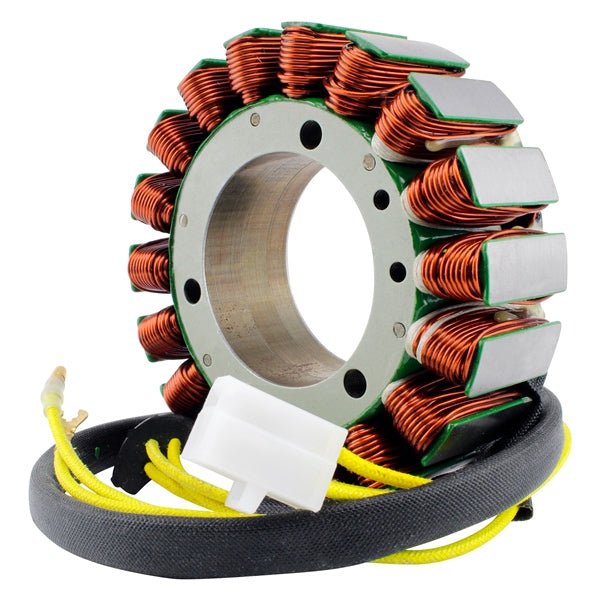

Kimpex Stator

$209.99
  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-006242
  • Compatible Brand: Fits Yamaha
  • External Diameter (mm): 110
  • Internal Diameter (mm): 50
  • Notes: 18-Poles Stator
  • Notes: The opposite connector is include (main harness side)
  • Notes: Includes: Connectors
  • Notes: Includes: Rubber grommet
  • Number: 225835
  • Number of connectors: 3
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 35

Fits 5 vehicles

Yamaha XV1000 Virago1984-1985
Yamaha XV750 Virago1981-1983
Yamaha XV750M Mid-Virago1983
Yamaha XV920 Virago1982-1983
Yamaha XV920R Seca1981
