Kimpex  |  SKU: SF-010-005035

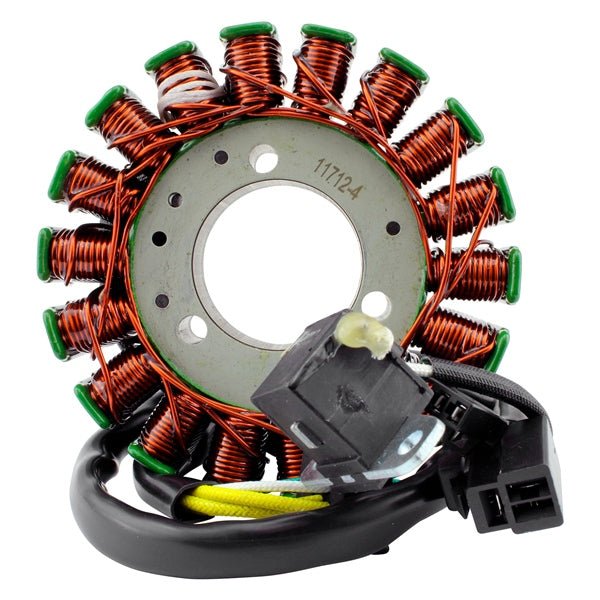

Kimpex Stator

$269.99
  • In stock and ready to ship
  • Usually ships in 1 to 2 business days
  • Free shipping on orders over $279.99
  • Ships from Canadian warehouses in Alberta, Ontario and Quebec
  • Secure checkout with trusted payment methods

Fast Shipping from Canadian Warehouses

Delivered in 3 to 7 business days in Canada.
No duties or cross-border delays.

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius

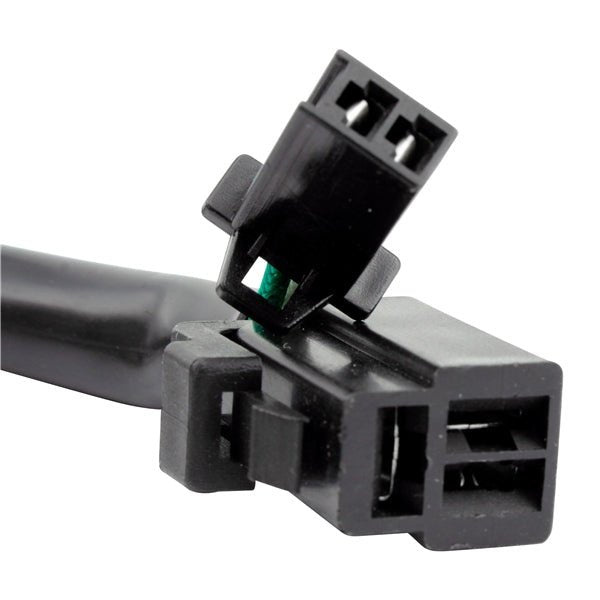

  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-005035
  • Compatible Brand: Fits Suzuki
  • External Diameter (mm): 108
  • Internal Diameter (mm): 38
  • Notes: 18-Poles Stator
  • Notes: Includes: Pick up pulsar
  • Notes: Includes: Connectors
  • Notes: Includes: Rubber grommet
  • Number: 225823
  • Number of connectors: 2
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 22

Fits 10 vehicles

Suzuki V-Strom 650 ABS DL650A2007-2011, 2013-2016
Suzuki V-Strom DL650A2007
Suzuki V-Strom DL650A ABS2012
Suzuki V-Strom DL650A Adventure ABS2014-2015
Suzuki V-Strom DL650A EXP ABS2012-2016
Suzuki V-Strom DL650A SE ABS2012-2016
Suzuki V-Strom DL650A SE Touring ABS2009-2011
Suzuki V-Strom DL650X ABS2015-2016
Suzuki V-Strom DL650X EXP ABS2015-2016
Suzuki V-Strom DL650XT ABS2015-2016
