Kimpex Splyt Stator, Voltage Regulator Rectifier & Gasket Kit

As featured by Dirt Trax Television, RMSTATOR SPLYT Technology provides a reliable solution to well-known charging system failures. Using a dual output stator with two completely separate stator windings, this system splits the power generated by the stator into two separate voltage regulators. These regulators then each operate with only half of the load of the original system, allowing them to maintain a lower temperature and increase reliability.

This system uses a new type of voltage regulator called a SERIES regulator. Rather than shunting excess power to ground like a typical regulator, it protects the battery from high voltage by disconnecting the stator coils from the regulator and preventing current from passing on. This type of voltage regulation generates less heat because current from the stator is prevented from flowing through the regulator.

With a stock charging system, voltage regulators are consistently operating within 5% of their maximum capacity, leading to heat and stress related failure. With the RMSTATOR SPLYT system, both SERIES voltage regulators are operating with 40% overhead for long life and stable output.

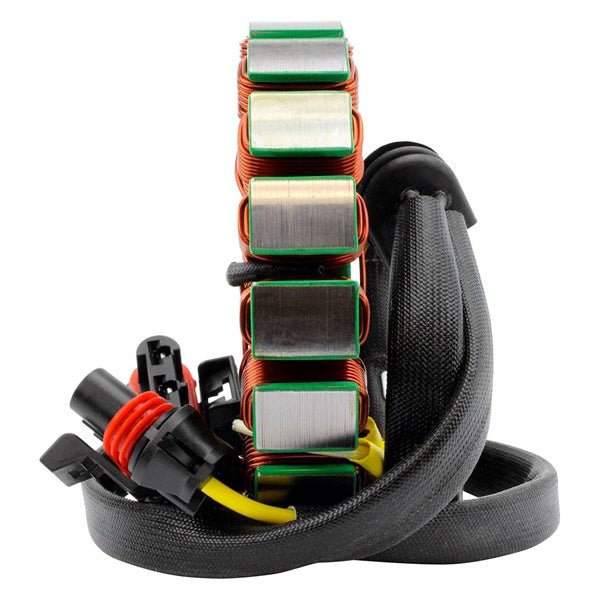

Contrary to the original OEM stator that uses one three phase stator winding, the SPLYT stator contains two completely separate three-phase coil windings. Each of these two windings then produces half of the power of the stock stator lowering the temperature in each individual coil.

All parts use a Plug-and-Play design, just like the original OEM ones, so no special tool or knowledge is needed to install this system.

Relocation wiring harnesses allow to relocate the regulators anywhere on your vehicle to get better air flow and easier access.

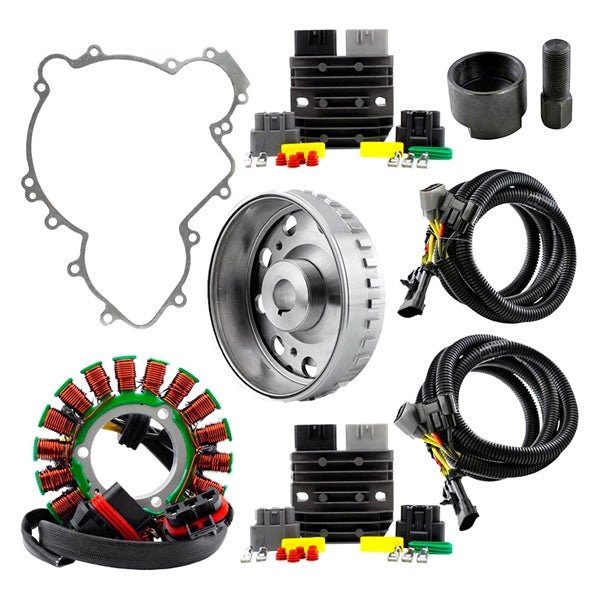

• Dual output stator
• Two SERIES voltage regulators

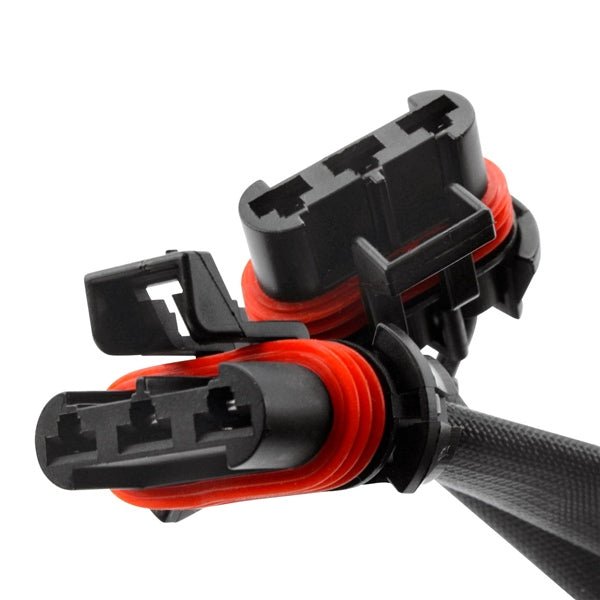

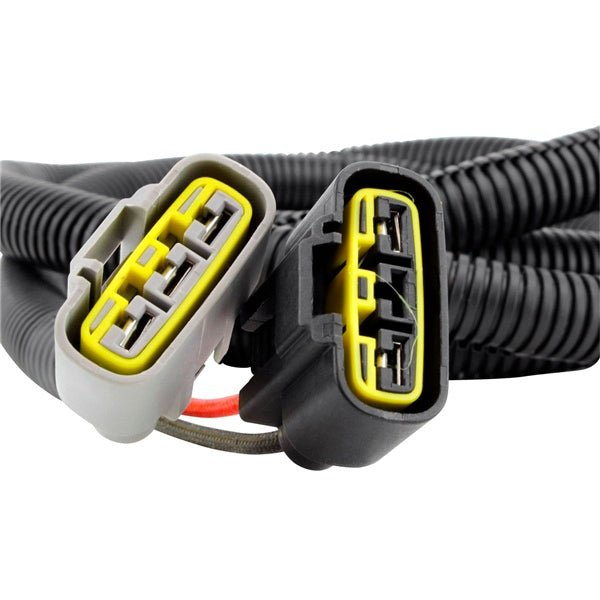

• Two automotive grade relocation wiring harnesses with OEM-quality heavy-duty connectors
• Gasket
• Complete instructions for voltage regulator relocation
