Kimpex  |  SKU: SF-010-000542

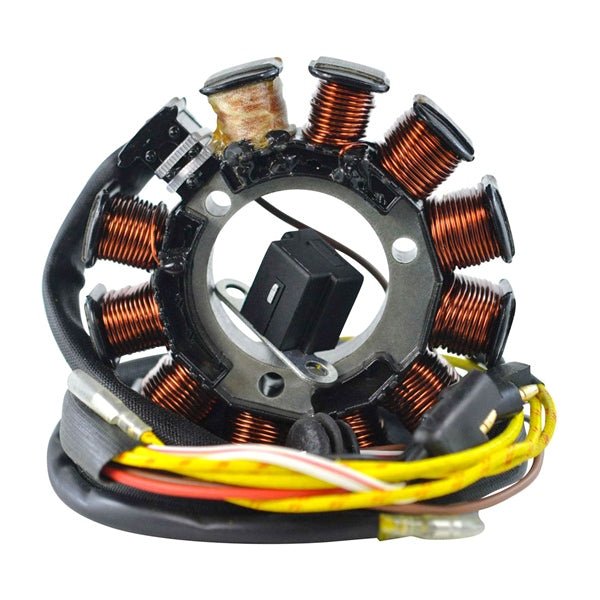

Kimpex Stator

$226.09 $265.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Connector included
  • Rubber grommet included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
  • SKU: SF-010-000542
  • Compatible Brand: Fits Polaris
  • External Diameter (mm): 115
  • Internal Diameter (mm): 48
  • Notes: 12-Poles Stator and a rectangular 4-pins plastic connector
  • Number: 285640
  • Number of connectors: 7
  • Number of terminals: 9
  • Number of wires: 9
  • Original Product Type: Stators
  • Thickness (mm): 20
MakeModelYears
POLARISMagnum 500 2x42002
POLARISMagnum 500 4x42000-2003
POLARISRanger 500 4x42003
POLARISRanger 500 6x62003
POLARISScrambler 500 2x42001-2002
POLARISScrambler 500 4X42000-2002
POLARISSportsman 500 4x42000, 2002
POLARISSportsman 500 6x62000, 2002
POLARISSportsman 500 HO2001-2002
POLARISSportsman 500 HO X2002
POLARISWorker 5002001
