Kimpex  |  SKU: SF-010-000383

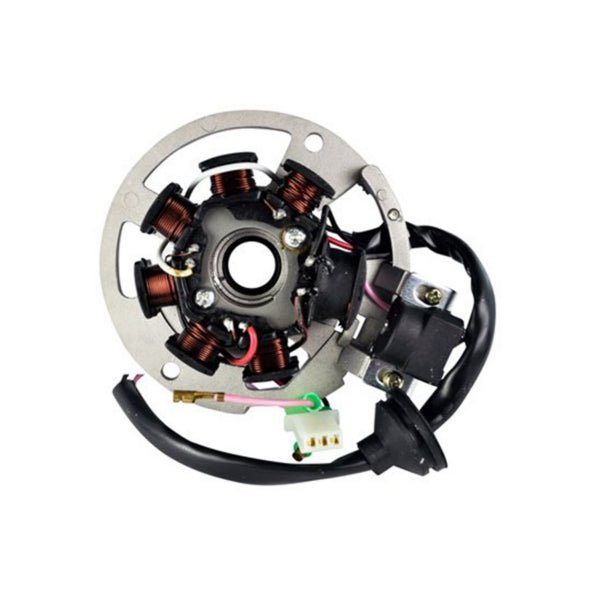

Kimpex Stator HD With A Backplate

$125.79 $147.99

Delivery and Shipping

Fast Shipping! Directly from our central warehouse in Alberta, Ontario, and Quebec

Free Shipping Over $149

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connector included
  • Rubber grommet included
  • Backplate included
  • All products shipped are tested
Note: Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced..
  • SKU: SF-010-000383
  • Compatible Brand: Fits Polaris
  • External Diameter (mm): 27
  • Internal Diameter (mm): 79
  • Number: 285657
  • Number of connectors: 3
  • Number of terminals: 5
  • Number of wires: 5
  • Original Product Type: Stators
  • Thickness (mm): 13
MakeModelYears
APRILIARally 50 Air Cooled1995-2004
APRILIAScarabeo 50 2T1993-2006
CAN-AM (BRP)DS50 2 Stroke Automatic2002-2006
E-TONViper 502004
E-TONViper 702005-2006
E-TONViper 70 4 stroke2007
E-TONViper 902004-2005, 2007
E-TONViper 90R 4 stroke Electric/Reverse2007
E-TONViper 90R Electric/Reverse2005-2006
POLARISPredator 502004-2006
POLARISPredator 902003-2006
POLARISScrambler 502001-2003
POLARISScrambler 902001-2003
POLARISScrambler 90 X2002
POLARISSportsman 902001-2006
YAMAHACW50 Zuma II1997-1999, 2001
YAMAHACW50T Zuma1990
YAMAHAJog 501992-2000
